Installation Procedure

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

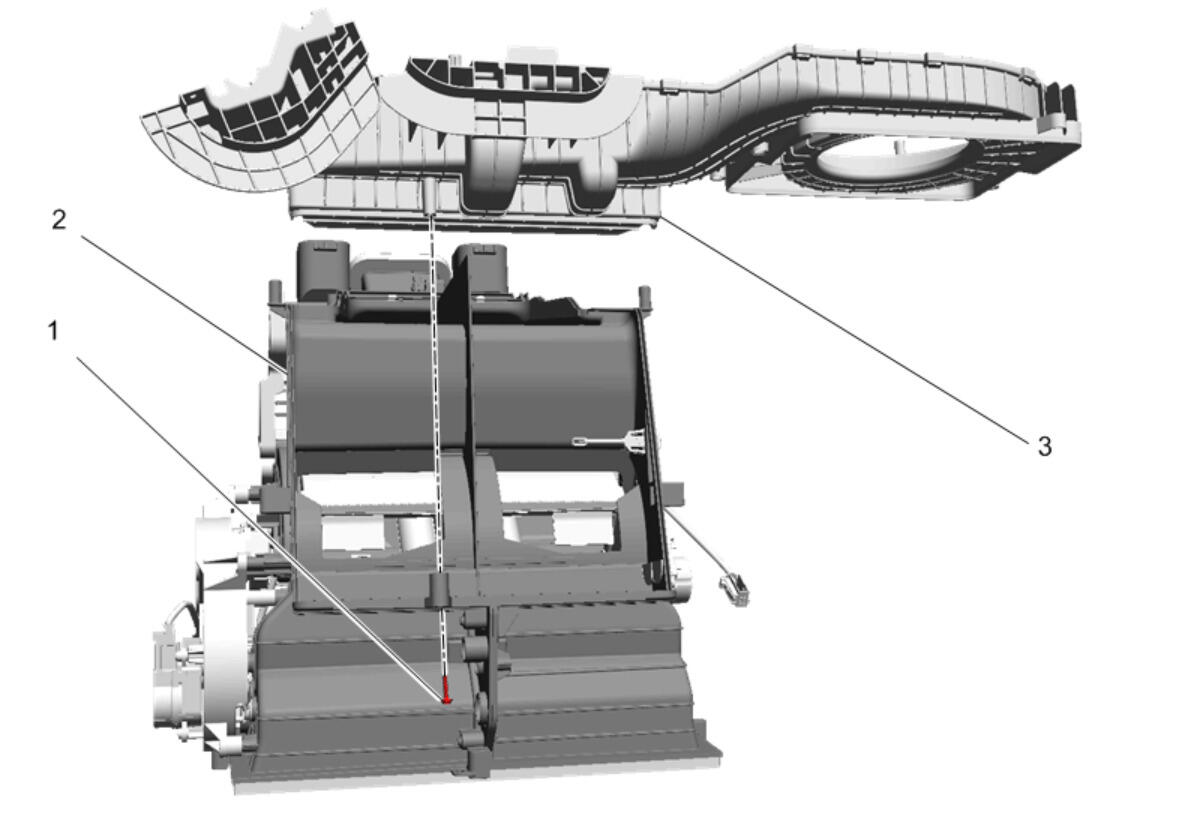

  1. GM4310286Courtesy of GENERAL MOTORS COMPANY

    Air Distributor Case(2)@Heater and Air Conditioning Evaporator and Blower Upper Case(3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Heater and Air Conditioning Evaporator and Blower Upper Case Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

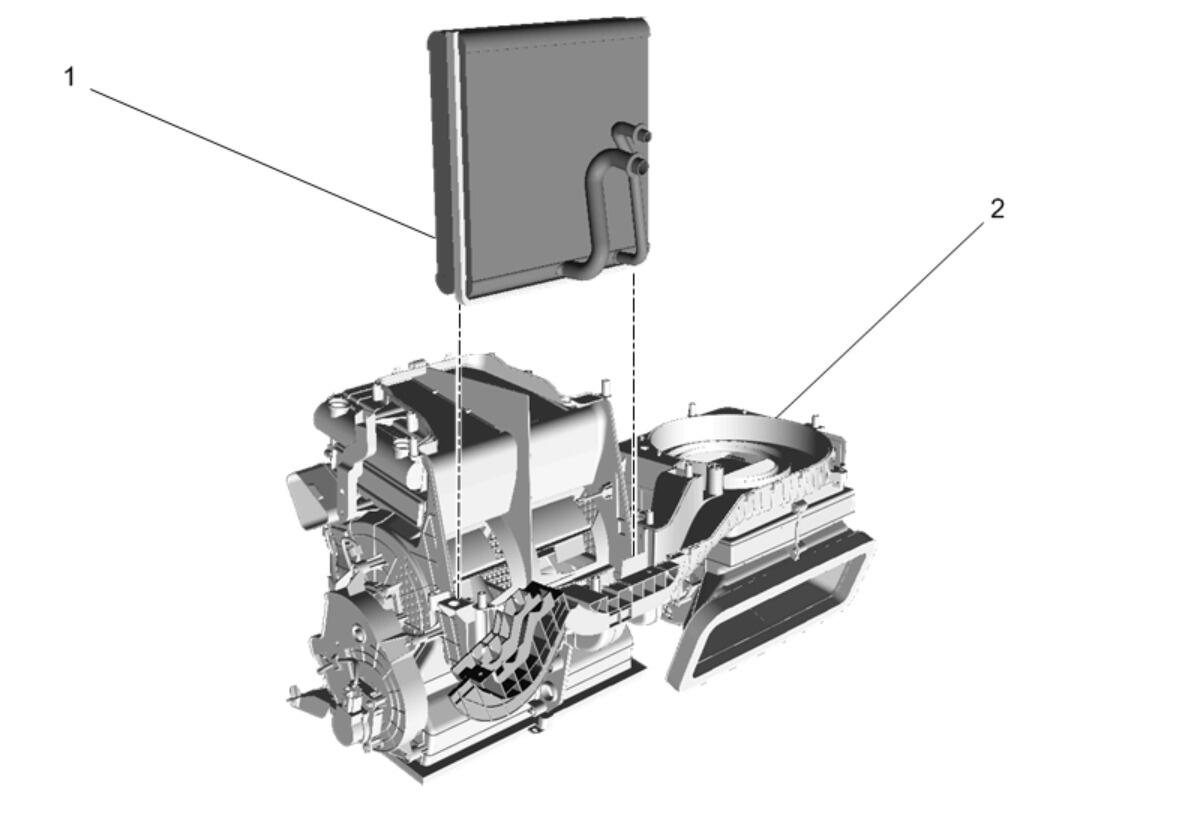

  3. GM4299098Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator(1)@Heater and Air Conditioning Evaporator and Blower Upper Case(2) - Install

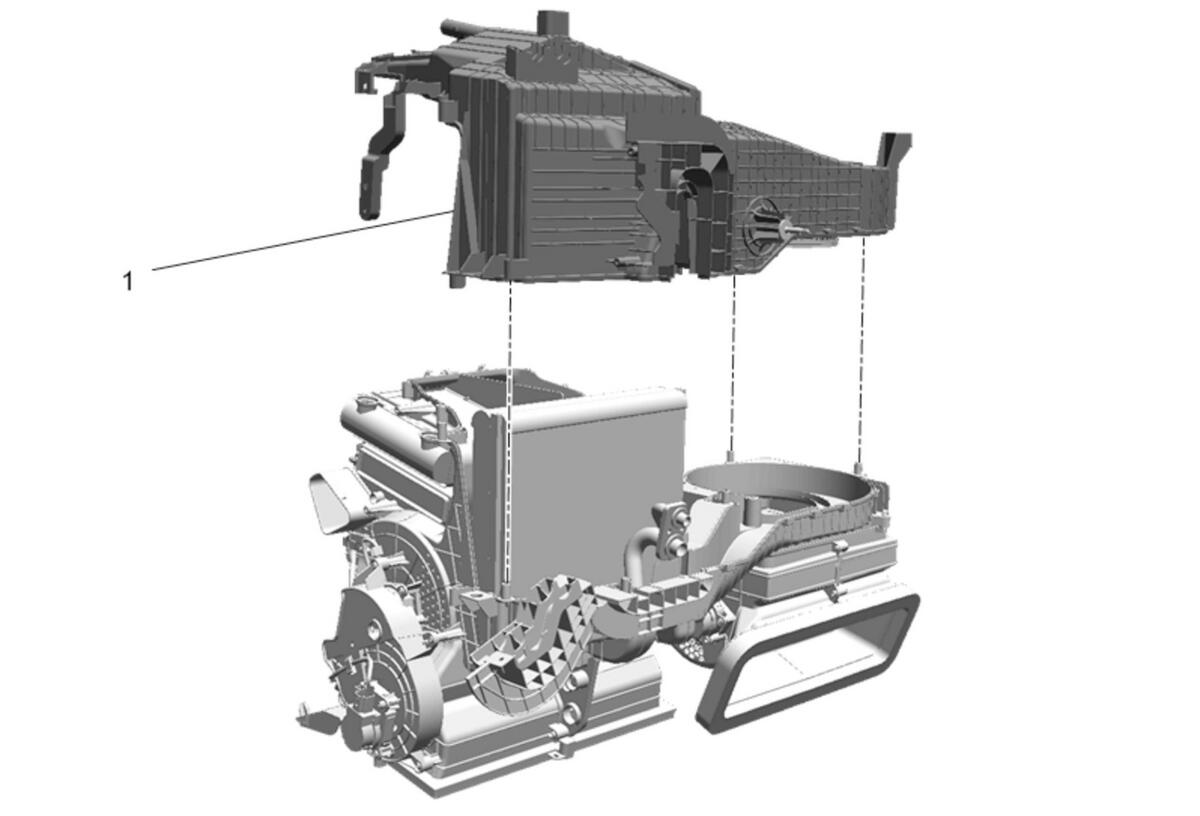

  4. GM4299048Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Lower Case(1) - Install

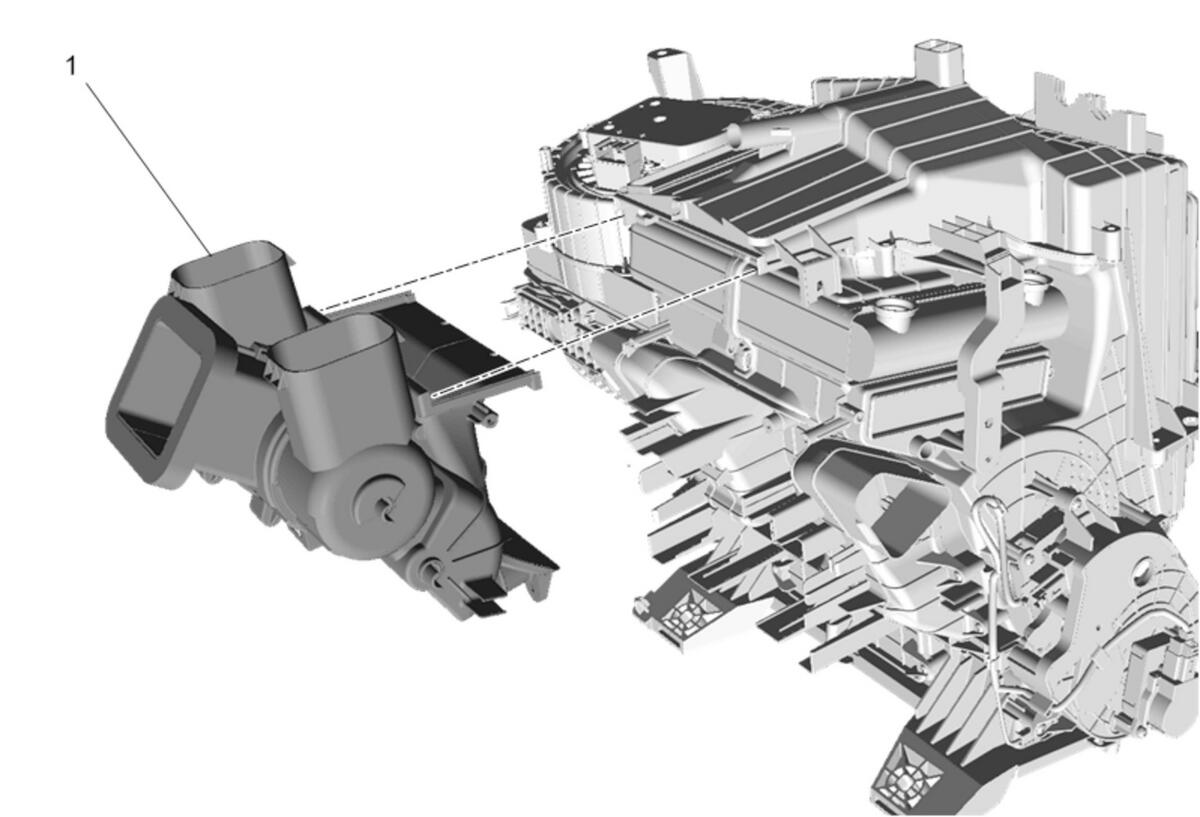

  5. GM4425609Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Air Outlet Duct Adaptor (1) - Install

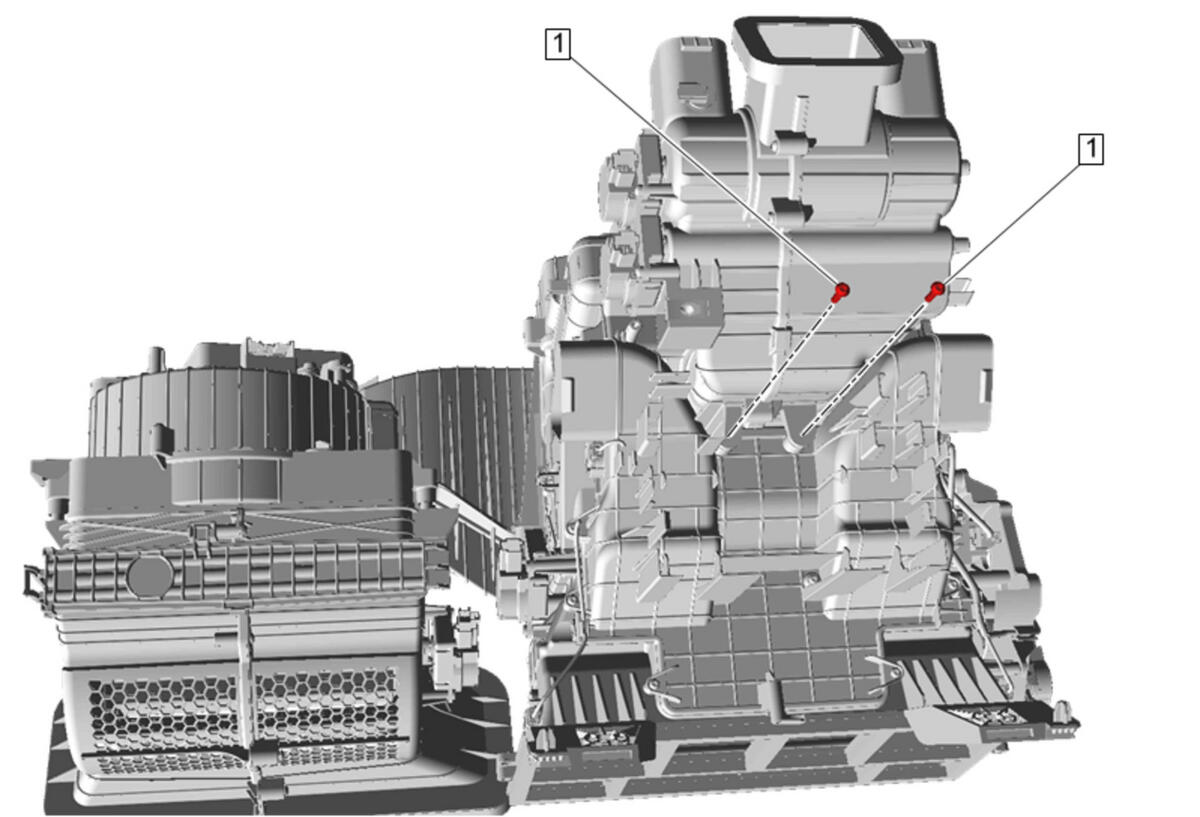

  6. GM4425607Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Air Outlet Duct Adaptor Bolt (1) - Install and tighten[2x] 2.5 N.m (22 lb in)

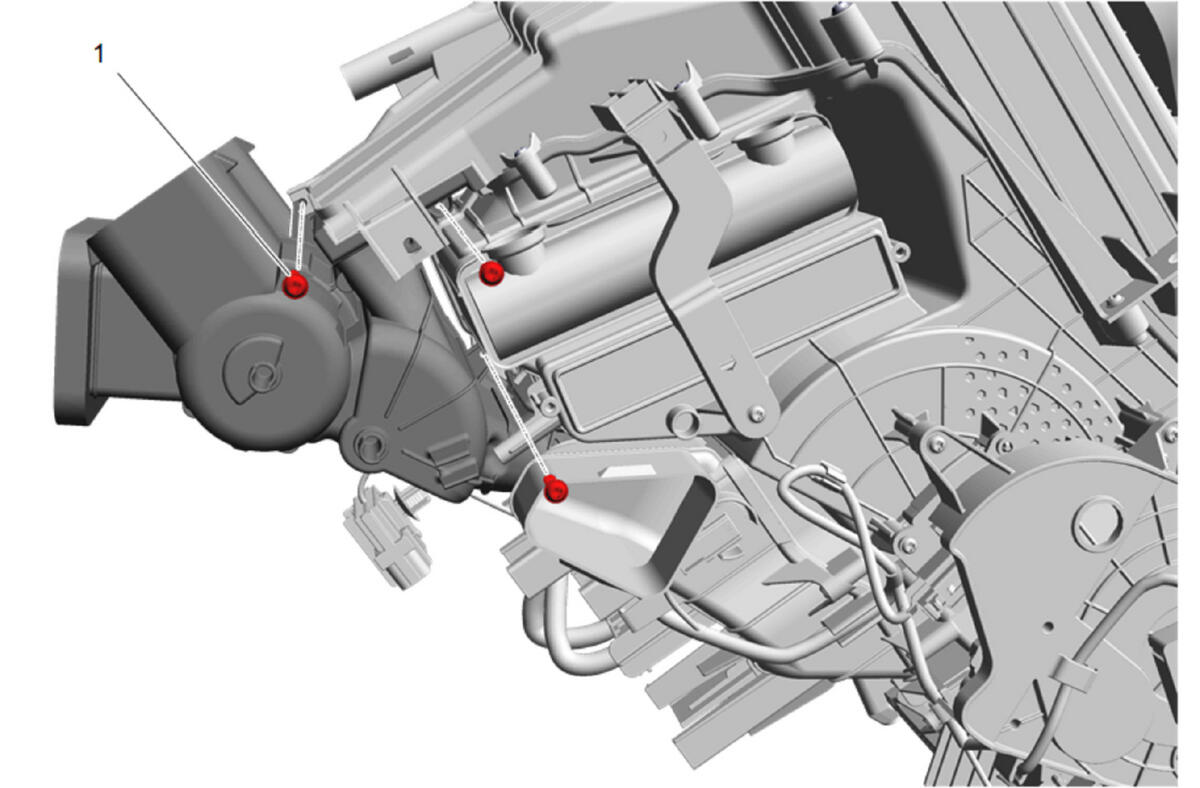

  7. GM4425594Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Air Outlet Duct Adaptor Bolt (1) - Install and tighten[2x] 2.5 N.m (22 lb in)

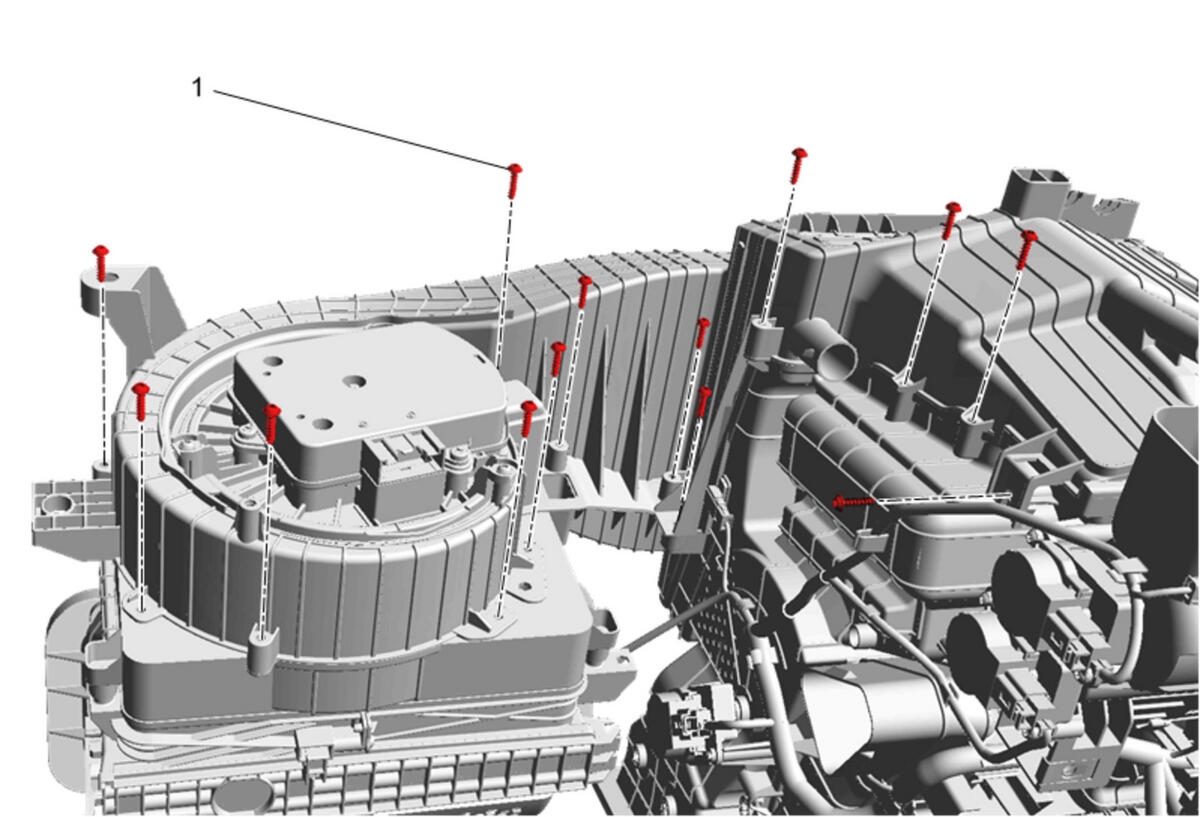

  8. GM4299047Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Lower Case Bolt (1) - Install and tighten 2.5 N.m (22 lb in) [13x]

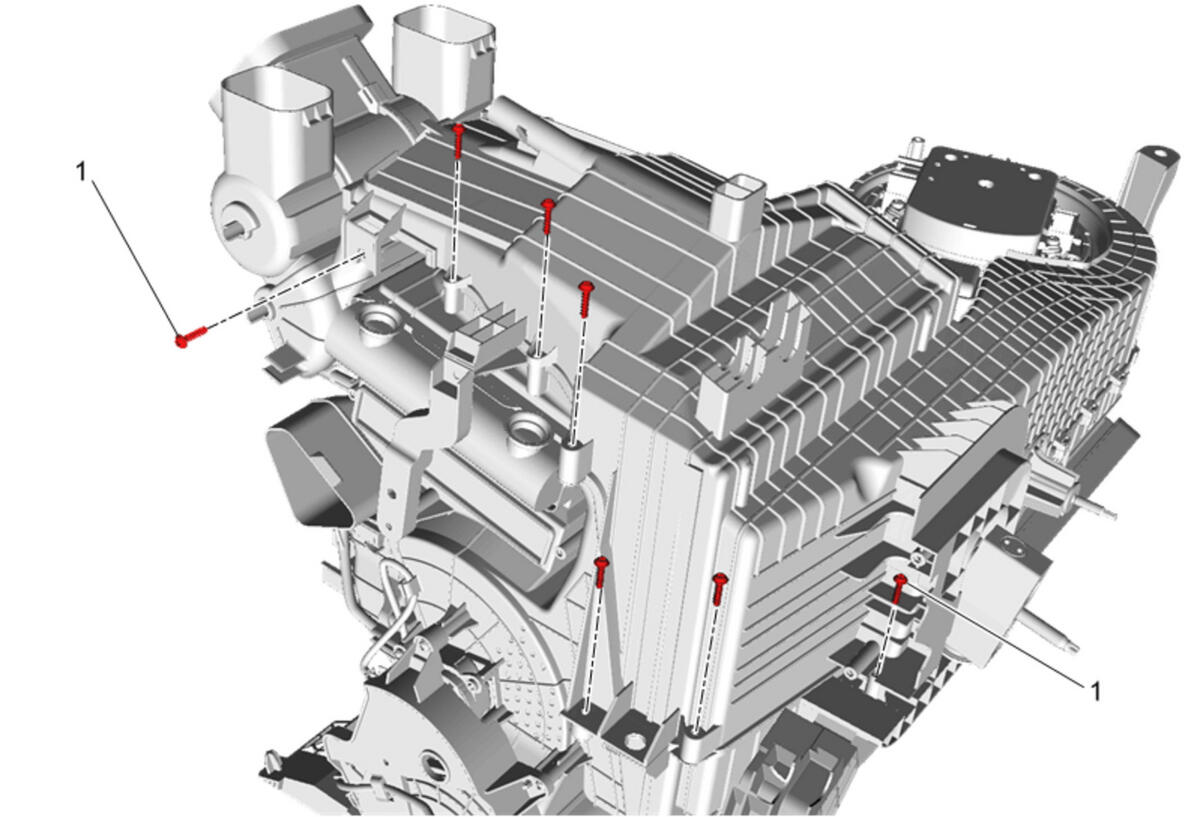

  9. GM4299035Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Lower Case Bolt (1) - Install and tighten 2.5 N.m (22 lb in) [7x]

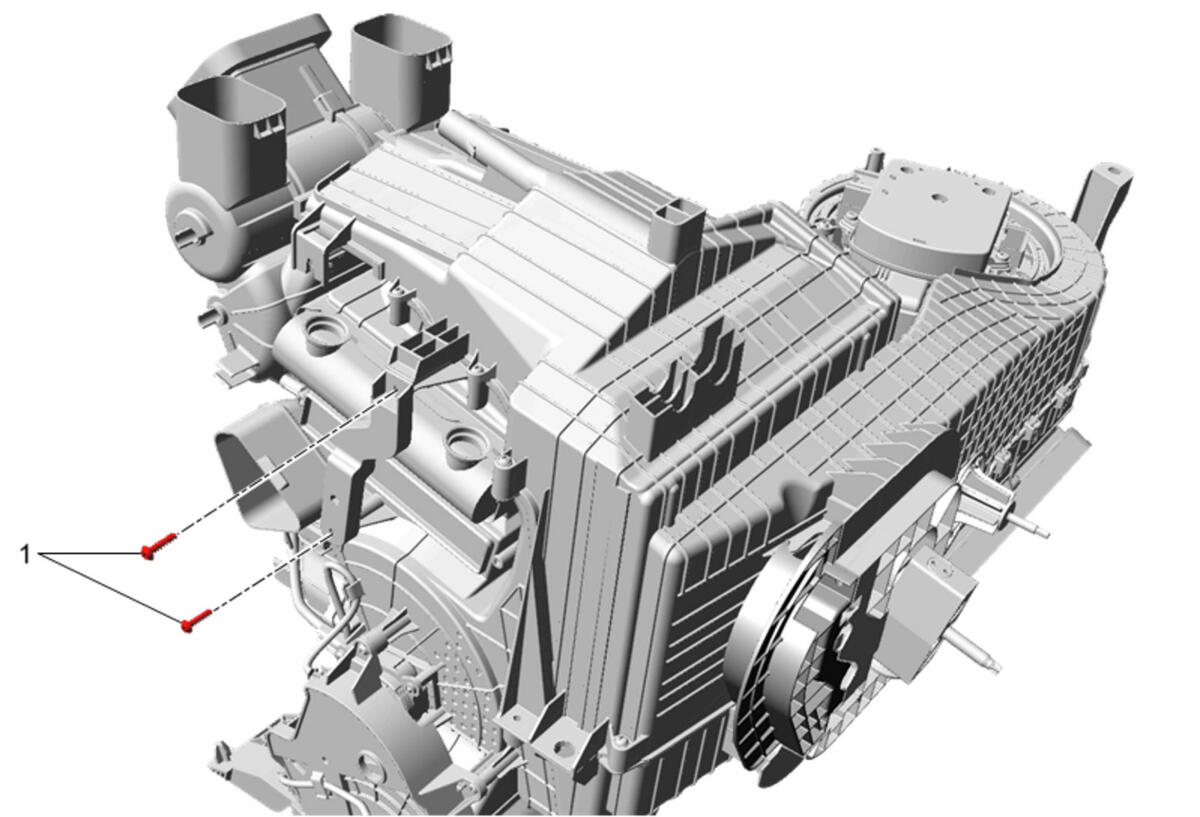

  10. GM4310746Courtesy of GENERAL MOTORS COMPANY

    Heater Core Bracket Bolt(1) - Install and tighten[2x] 2.5 N.m (22 lb in)

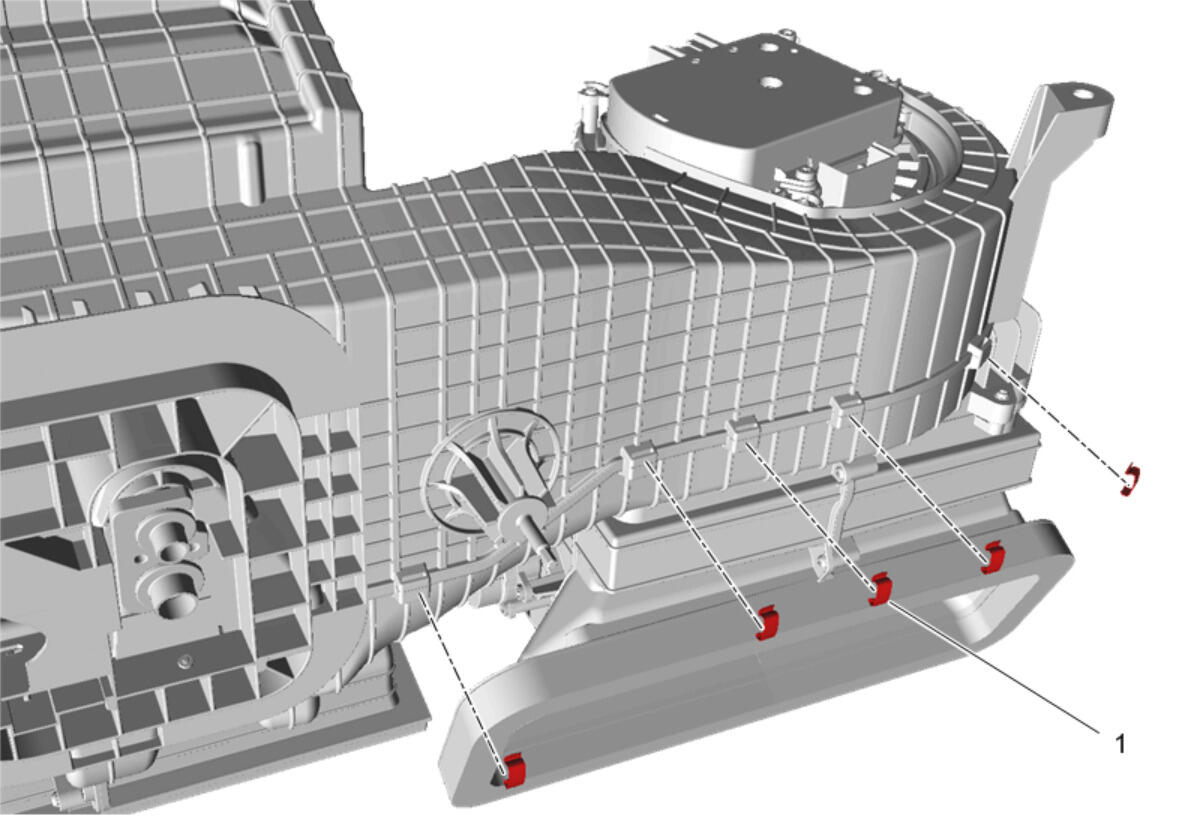

  11. GM4298996Courtesy of GENERAL MOTORS COMPANY

    Retainer Clip(1) - Install[5x]

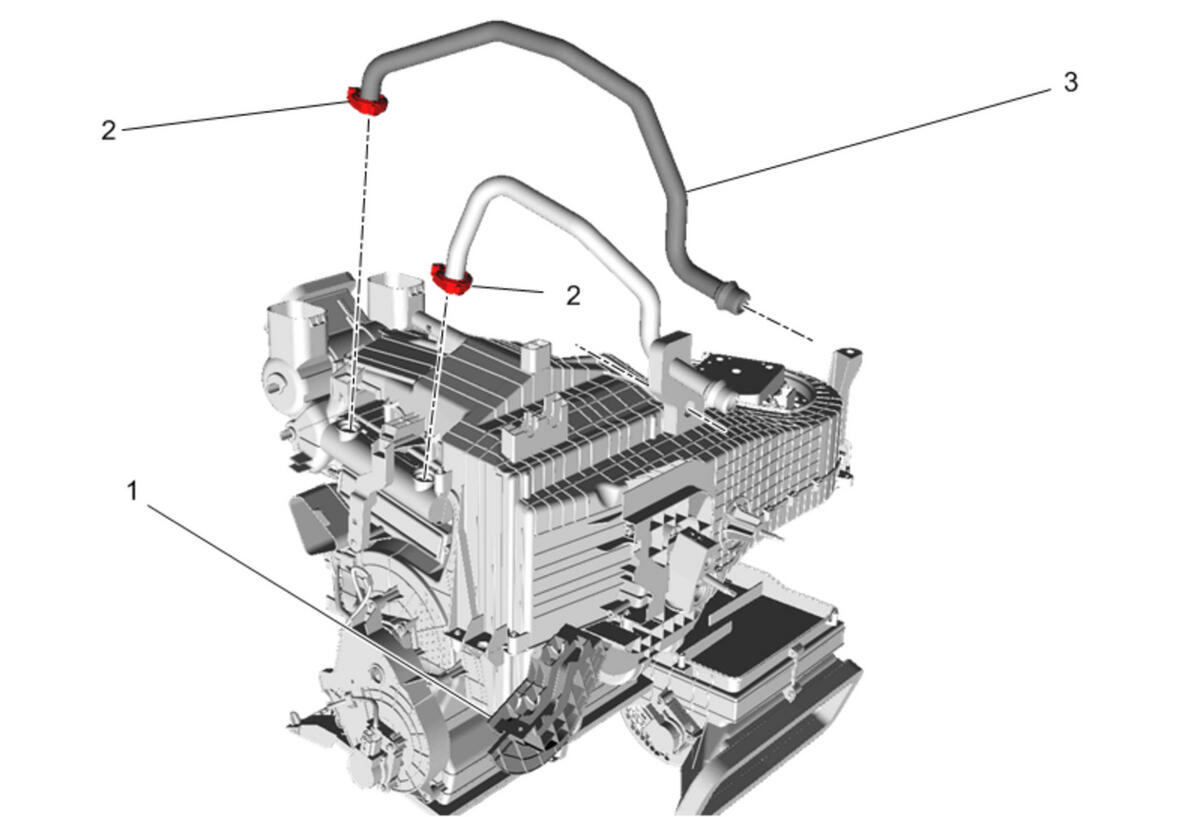

  12. GM4298312Courtesy of GENERAL MOTORS COMPANY

    Heater Core Inlet Tube(3) - Install - Heater Core Inlet Tube Replacement

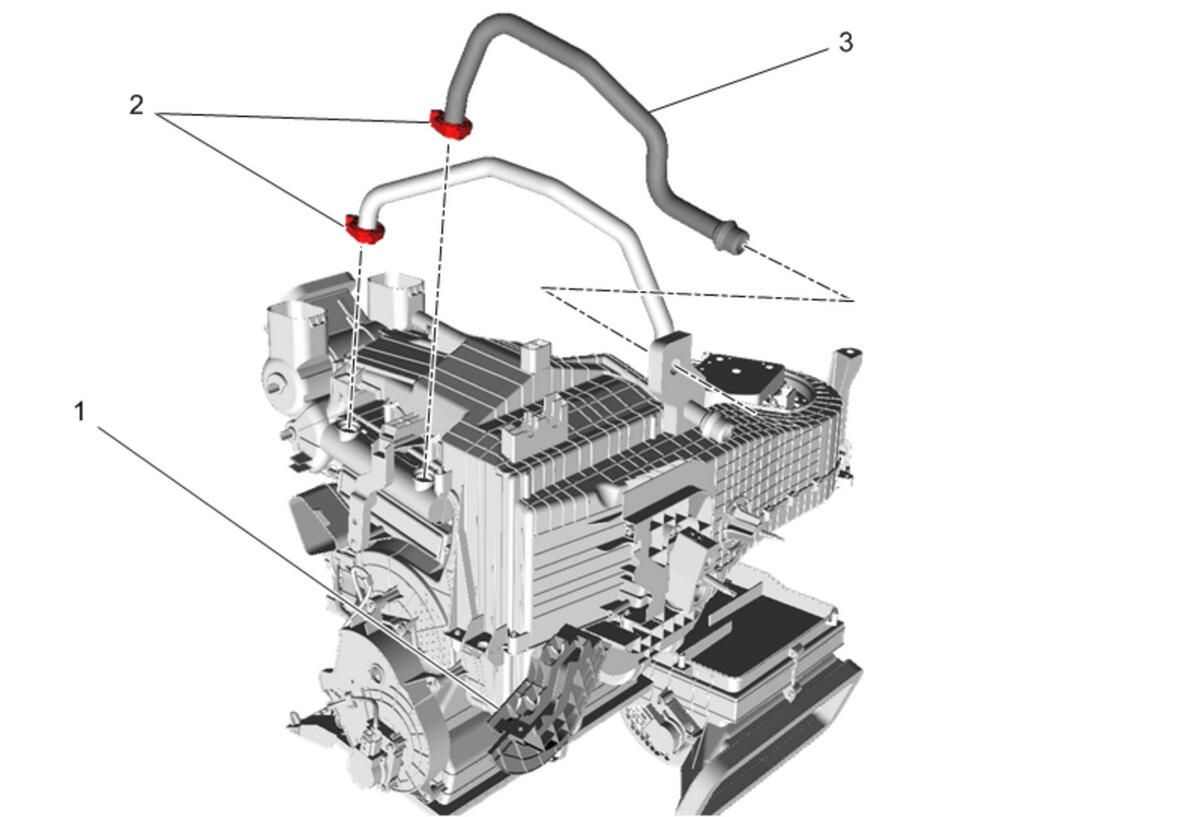

  13. GM4298324Courtesy of GENERAL MOTORS COMPANY

    Heater Core Outlet Tube(3) - Install - Heater Core Outlet Tube Replacement

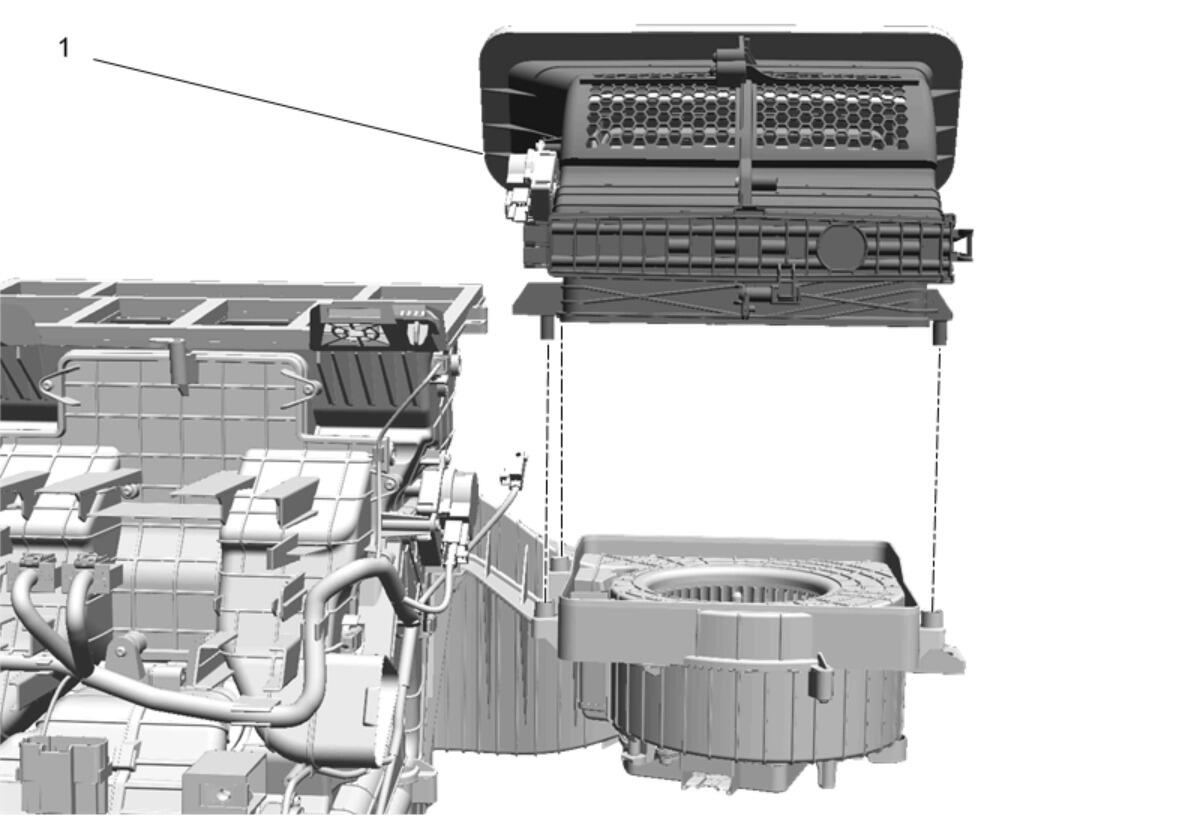

  14. GM4297338Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Housing(1) - Install - Air Inlet Housing Replacement

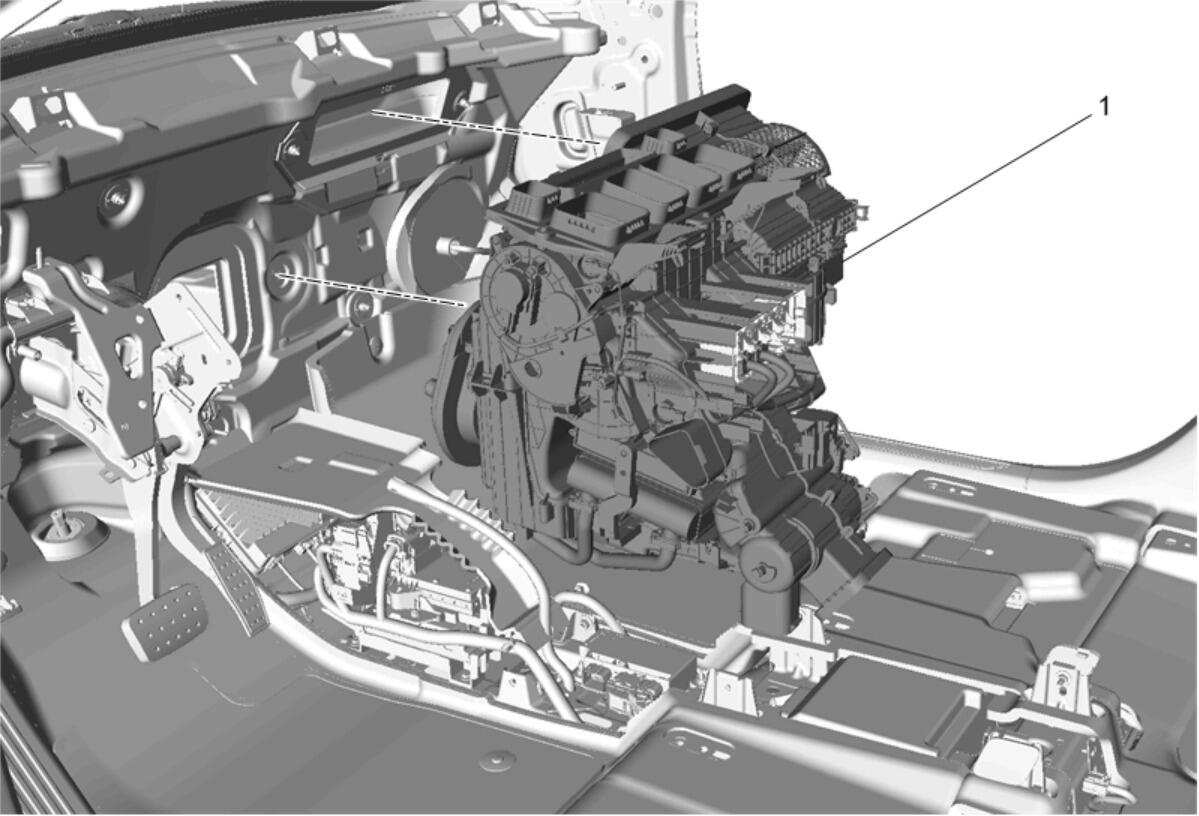

  15. GM4298004Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module(1) - Install - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
