Home >> Cadillac >> 2019 >> XT5 Base, FWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat System >> Schematic Wiring Diagrams >> Driver Seat Wiring Schematics >> Module Power, Ground, Serial Data, and Memory Controls (AAB)

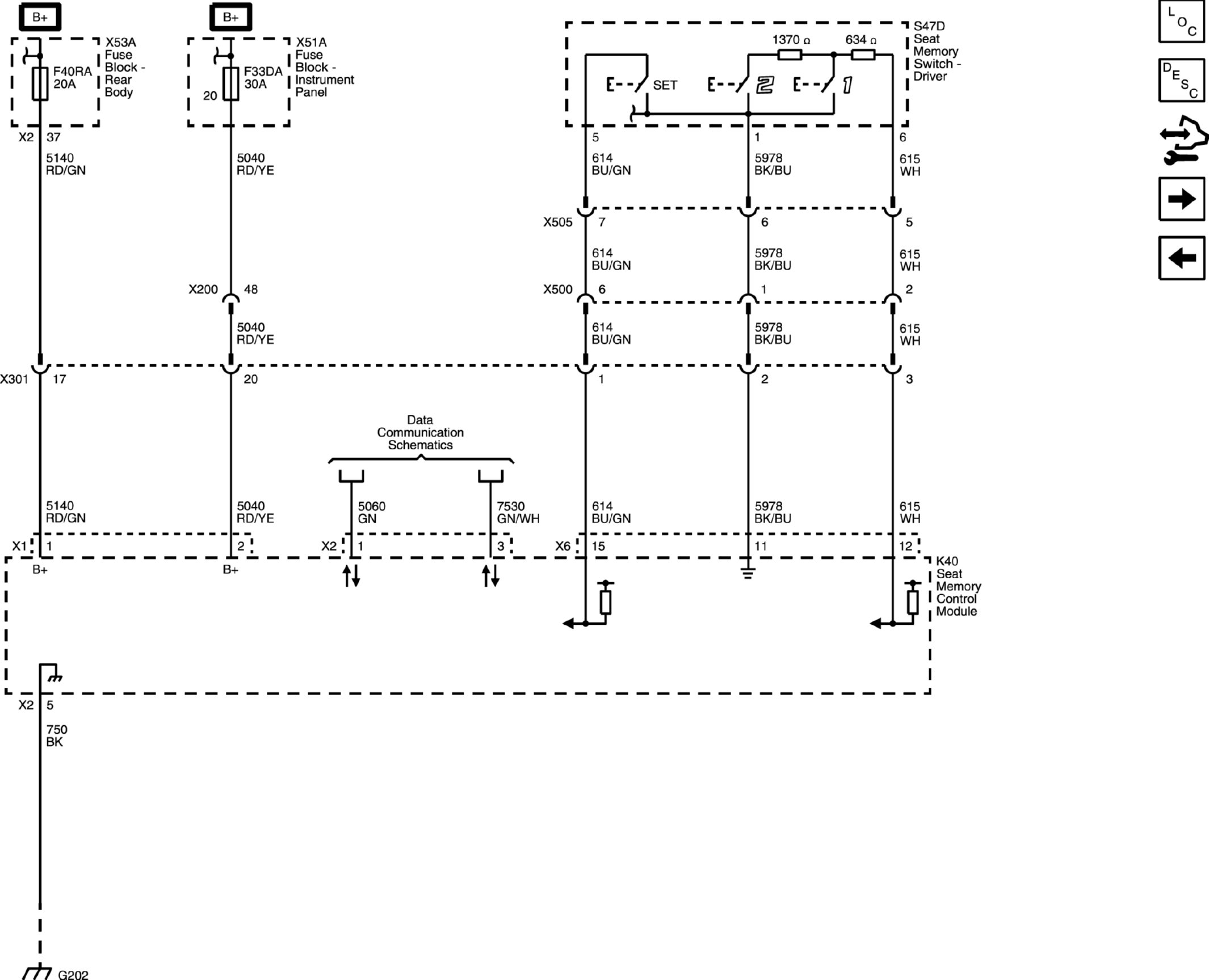

Module Power, Ground, Serial Data, and Memory Controls (AAB)

GM4909730

Courtesy of GENERAL MOTORS COMPANY
