Installation Procedure

  1. Steering Wheel Shroud (1) - Install
    GM5035042Courtesy of GENERAL MOTORS COMPANY
  2. {If equipped} Connect the steering wheel heat control module electrical connectors.

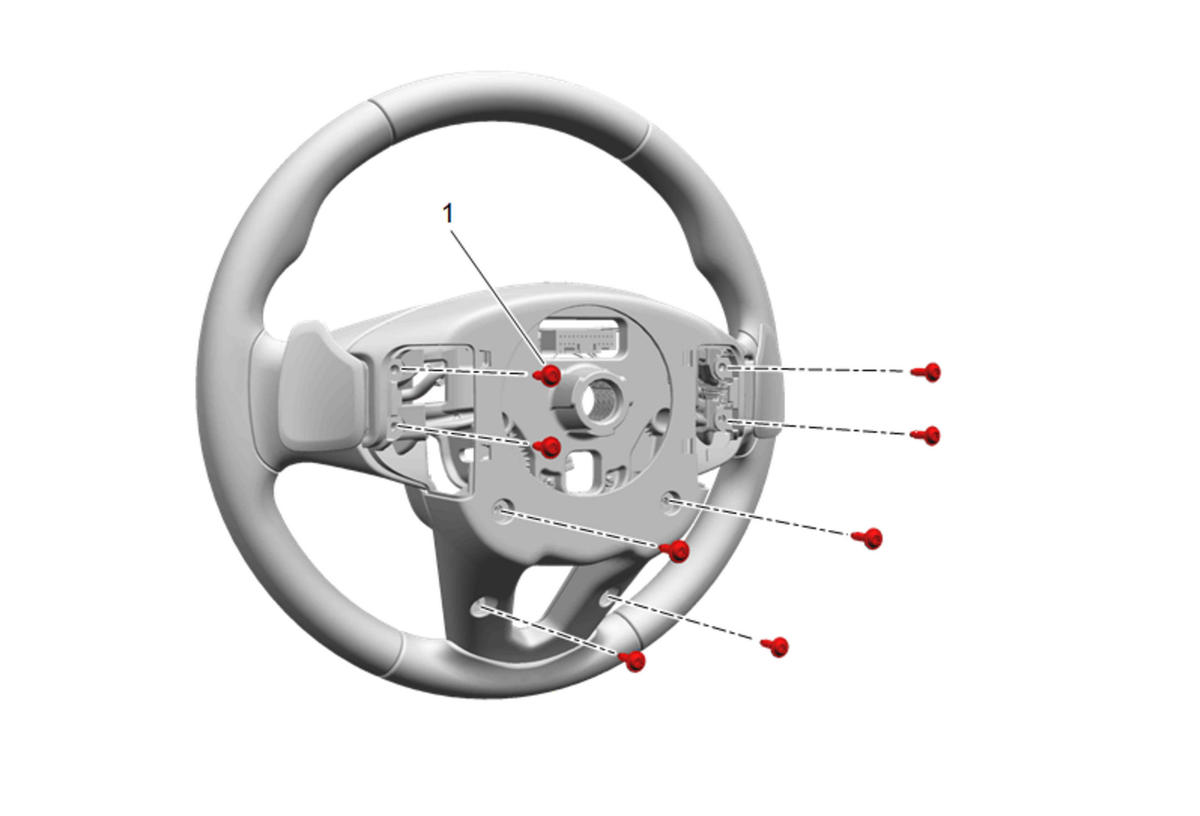

  3. Install the 8 steering wheel shroud screws (1) and tighten to 1.1 N.m (10 lb in).
    GM5035037Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

  4. Install the steering wheel. (1) Steering Wheel Replacement
    GM5034996Courtesy of GENERAL MOTORS COMPANY
  5. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
  6. Install the steering wheel airbag access hole cover (1). Steering Wheel Airbag Access Hole Cover Replacement
    GM5034932Courtesy of GENERAL MOTORS COMPANY
