Right Rear of the Engine

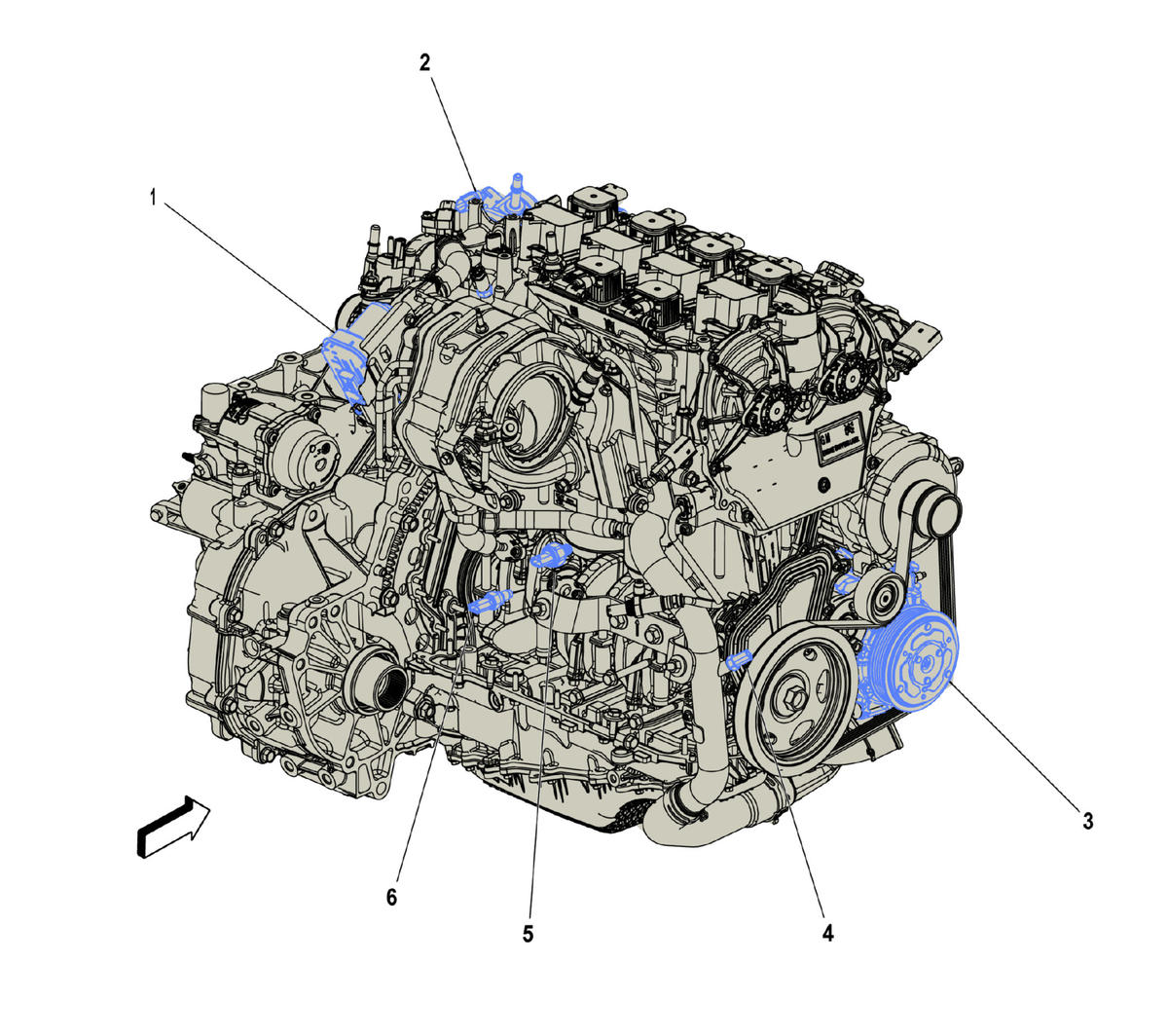

Fig 1: Right Rear of Engine Component Location
GM4971560Courtesy of GENERAL MOTORS COMPANY
Items
1. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
2. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump
3. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
4. B34A Engine Coolant Temperature Sensor 1 B34A Engine Coolant Temperature Sensor 1
5. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
6. B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor
