Installation Procedure

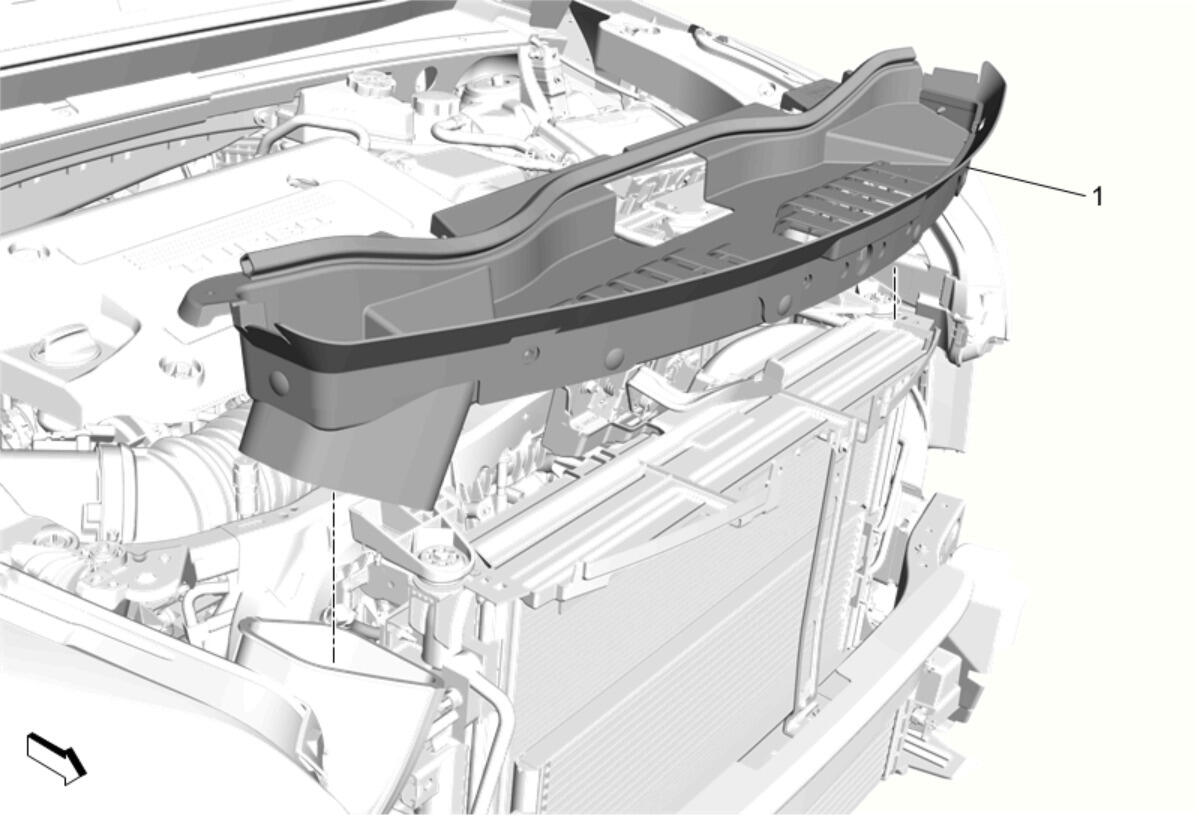

  1. Intake Air Splash Shield (1) - Install
    GM5044042Courtesy of GENERAL MOTORS COMPANY

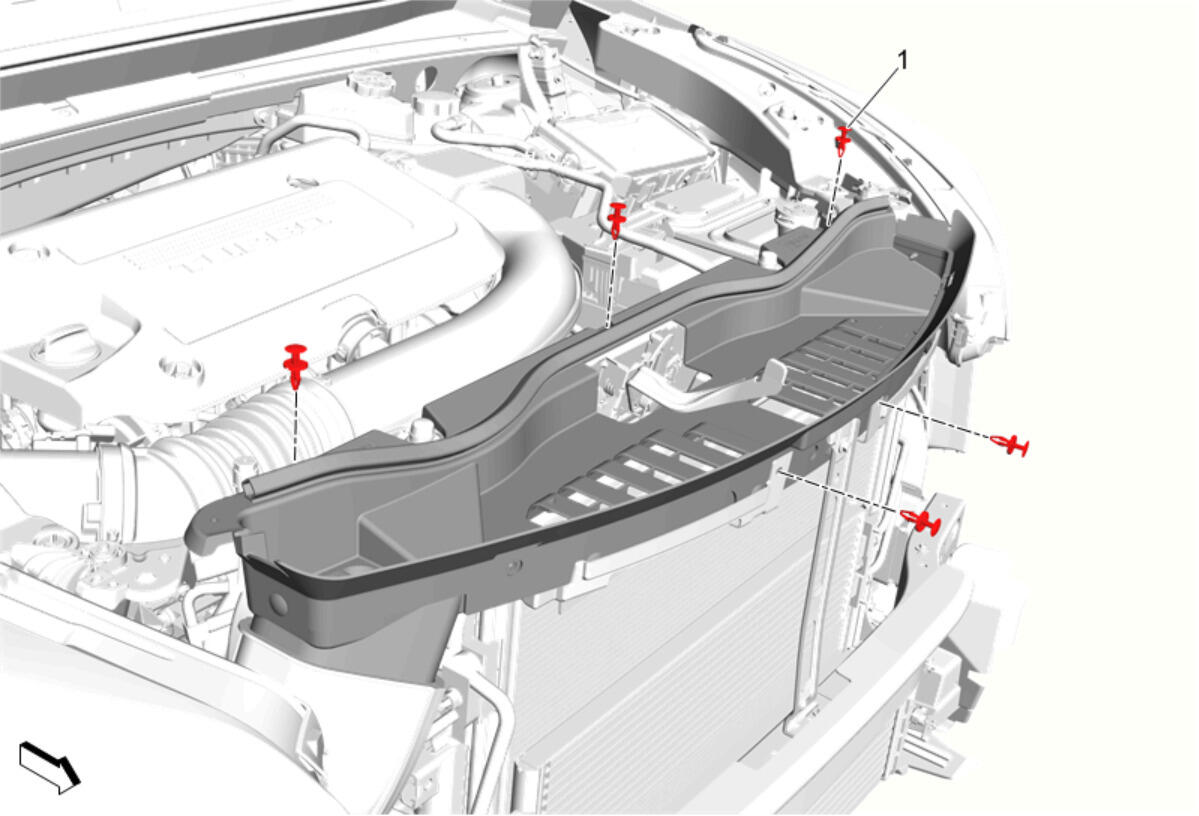

  2. Intake Air Baffle Retainer (1) - Install [5x]
    GM5044039Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Front Bumper Fascia Center Support - Install - Front Bumper Fascia Center Support Replacement
