Rear Short Range Radar Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

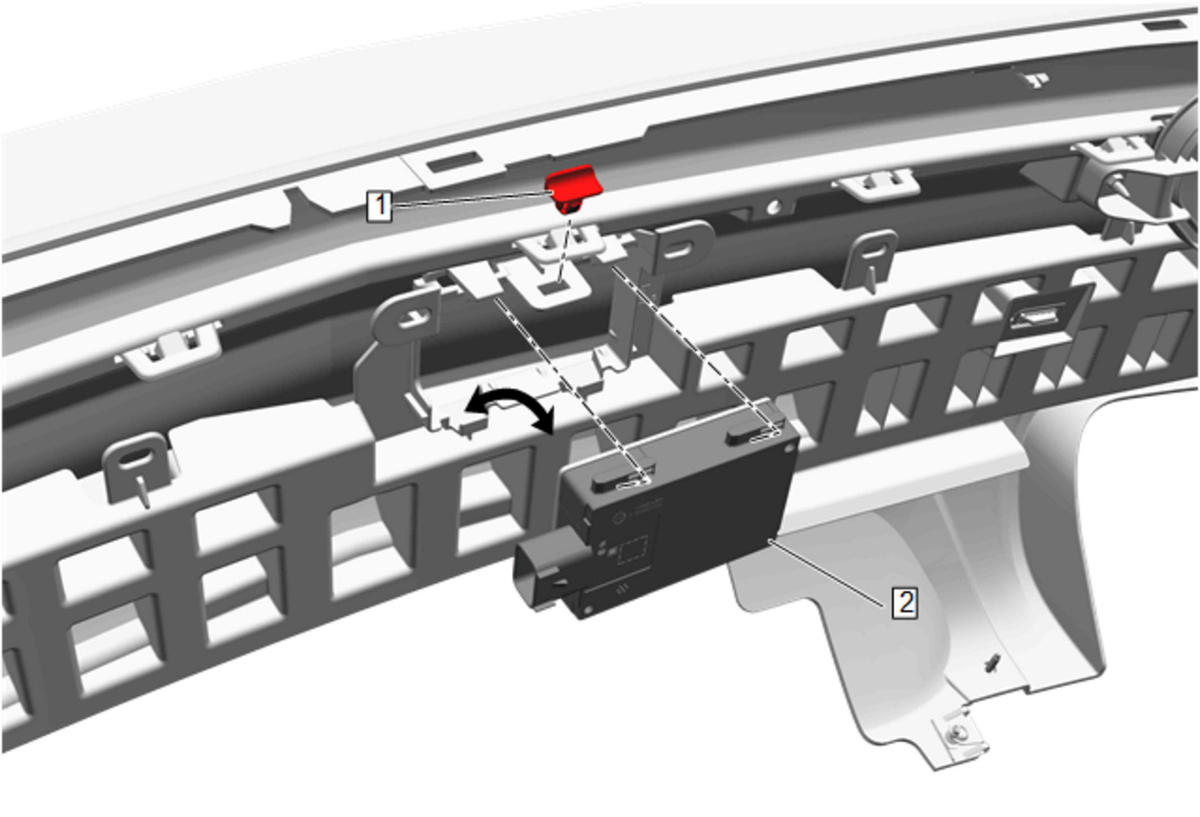

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Short Range Radar Sensor Clip
2	Rear Short Range Radar Sensor Procedure Disconnect the electrical connector. Release the tab retainers and remove. Perform the necessary programming and setup procedure: Control Module References .

Callout

Component Name

Short Range Radar Sensor Clip

Rear Short Range Radar Sensor

Procedure

Disconnect the electrical connector.
Release the tab retainers and remove.
Perform the necessary programming and setup procedure: Control Module References .
