Front Short Range Radar Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

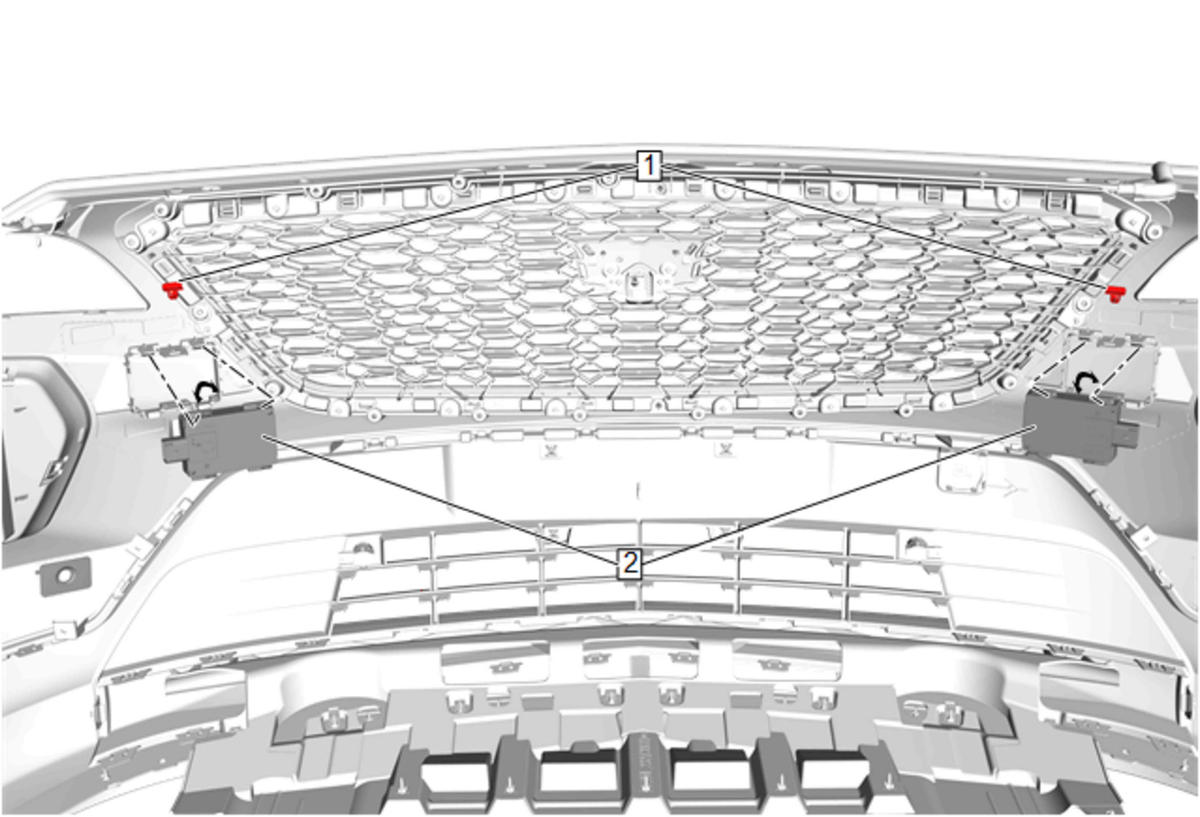

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Short Range Radar Sensor Clip [2x]
2	Front Short Range Radar Sensor [2x] Procedure Disconnect the electrical connector. Release the tab retainers and remove. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Short Range Radar Sensor Clip [2x]

Front Short Range Radar Sensor [2x]

Procedure

Disconnect the electrical connector.
Release the tab retainers and remove.
Perform the necessary programming and setup procedure: Control Module References
