Removal Procedure

Remove the steering wheel airbag access hole cover (1). Steering Wheel Airbag Access Hole Cover Replacement

Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Airbag - Remove - Steering Wheel Airbag Replacement
Remove the steering wheel. (1) Steering Wheel Replacement

Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Shroud (1) - Remove - Steering Wheel Shroud Replacement

Courtesy of GENERAL MOTORS COMPANY

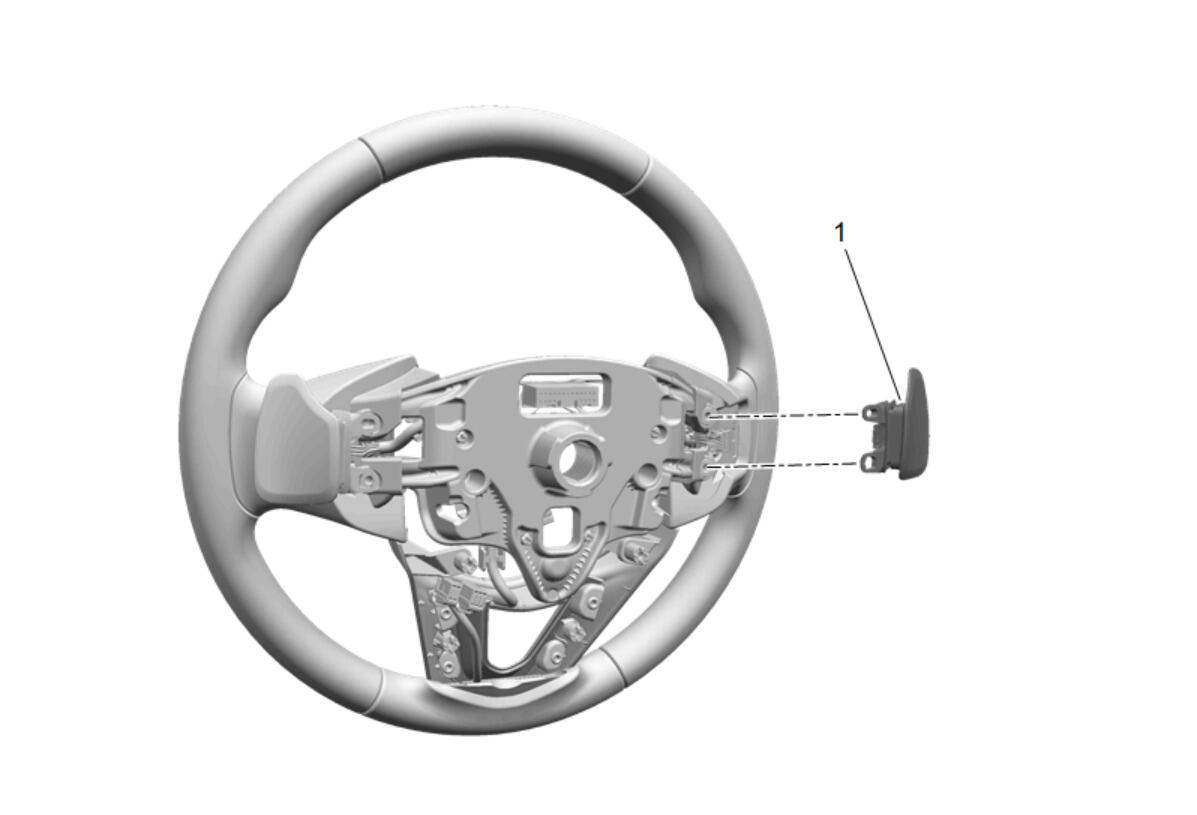

Remove the manual shift auxiliary position switch - steering wheel (1). Automatic Transmission Manual Shift Auxiliary Position Switch Replacement (Tap up) , or Automatic Transmission Manual Shift Auxiliary Position Switch Replacement (Tap down)

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a flat bladed plastic tool to release the manual shift auxiliary position switch retaining tabs.

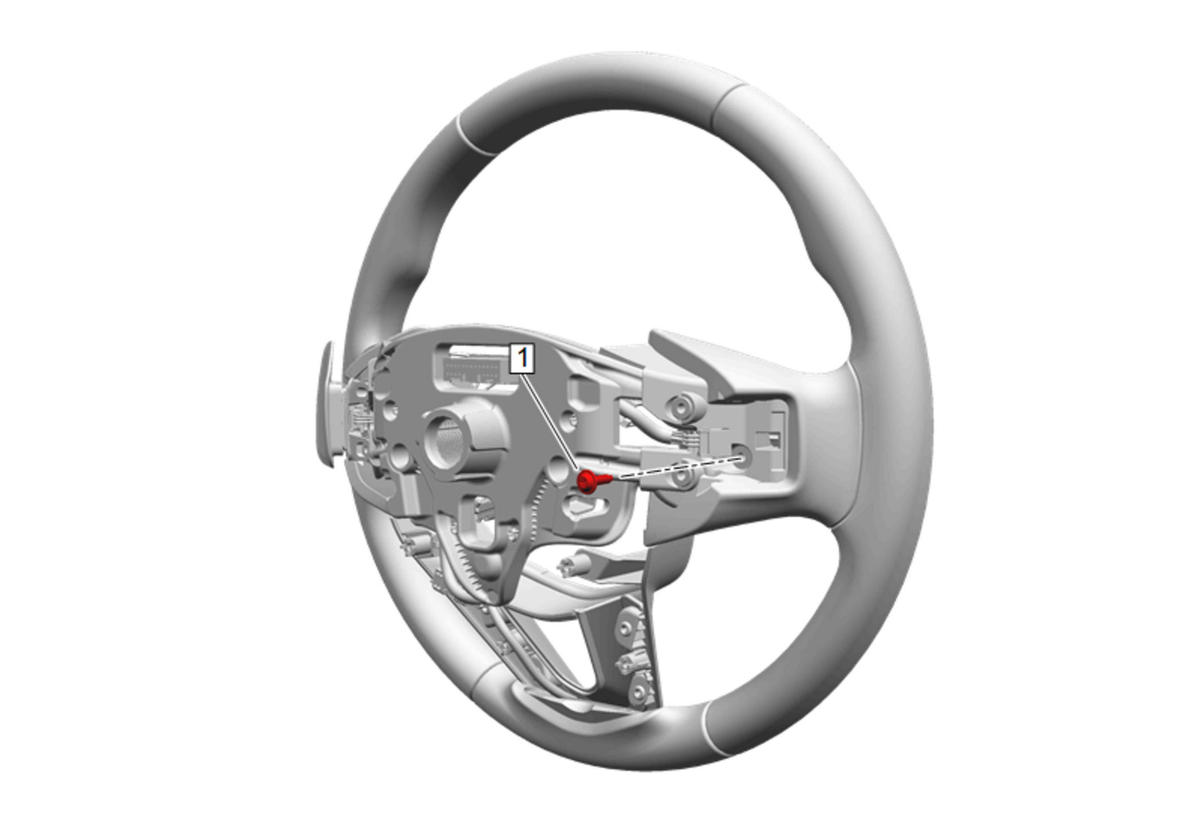

Remove the cruise control switch bracket screw (1).

Courtesy of GENERAL MOTORS COMPANY
Disconnect the electrical connector.

Courtesy of GENERAL MOTORS COMPANY
Cruise Control Switch (1) - Remove

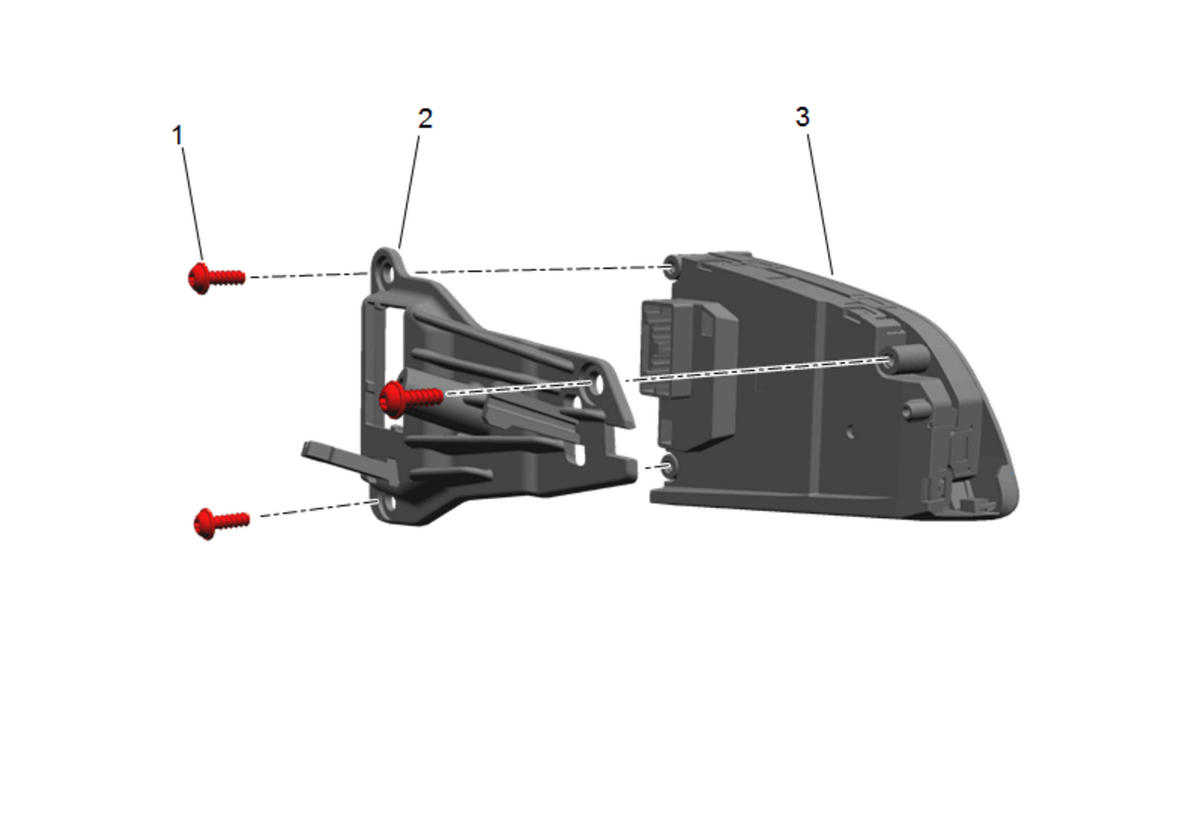

Remove the 3 cruise control switch screws (1).

Courtesy of GENERAL MOTORS COMPANY
Remove the cruise control switch (3) from the cruise control switch bracket (2).
