Installation Procedure

  1. Battery (1) - Install
    GM5053824Courtesy of GENERAL MOTORS COMPANY
  2. Battery Hold Down Retainer (2) - Install
    GM5053823Courtesy of GENERAL MOTORS COMPANY
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Retainer Bolt (1) - Install and tighten 22 N.m (16 lb ft)
  4. Battery Upper Cover (1) - Install - Battery Upper Cover Replacement
    GM5053769Courtesy of GENERAL MOTORS COMPANY

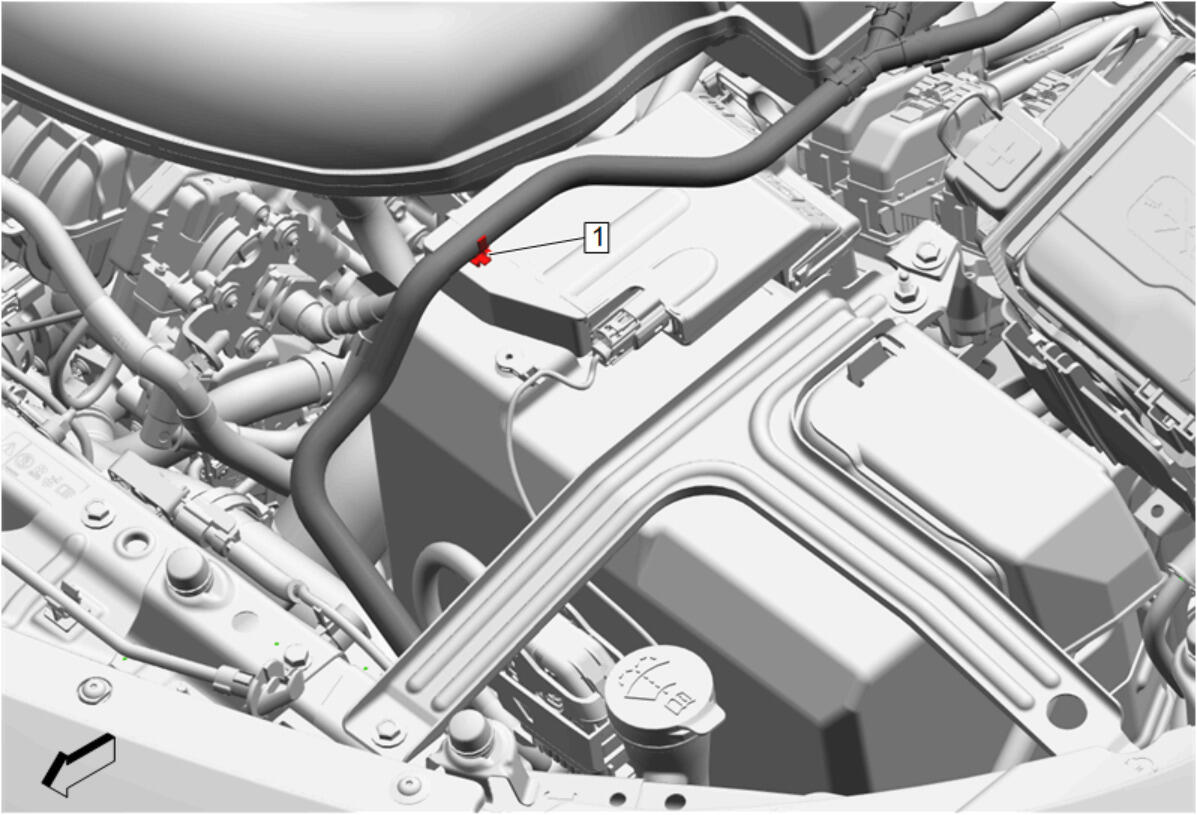

  5. Engine Coolant Air Bleed Hose Clip (1) - Install
    GM5141622Courtesy of GENERAL MOTORS COMPANY
  6. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
