Installation Procedure

  1. Battery Negative Cable (3) - Install

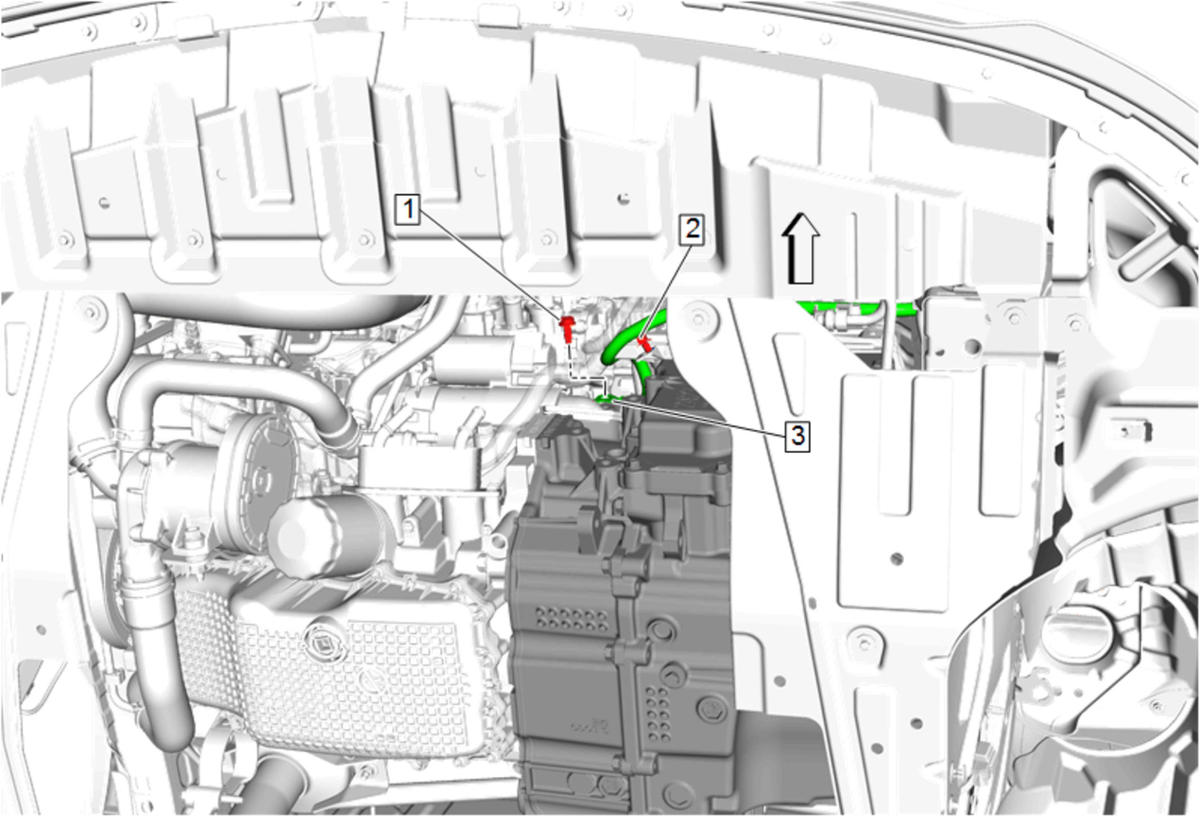

    GM5135328Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Cable Ground Bolt (1) - Install and tighten 22 N.m (16 lb ft)
  3. Retainer (2) - Engage
  4. Battery Negative Cable (3) - Install

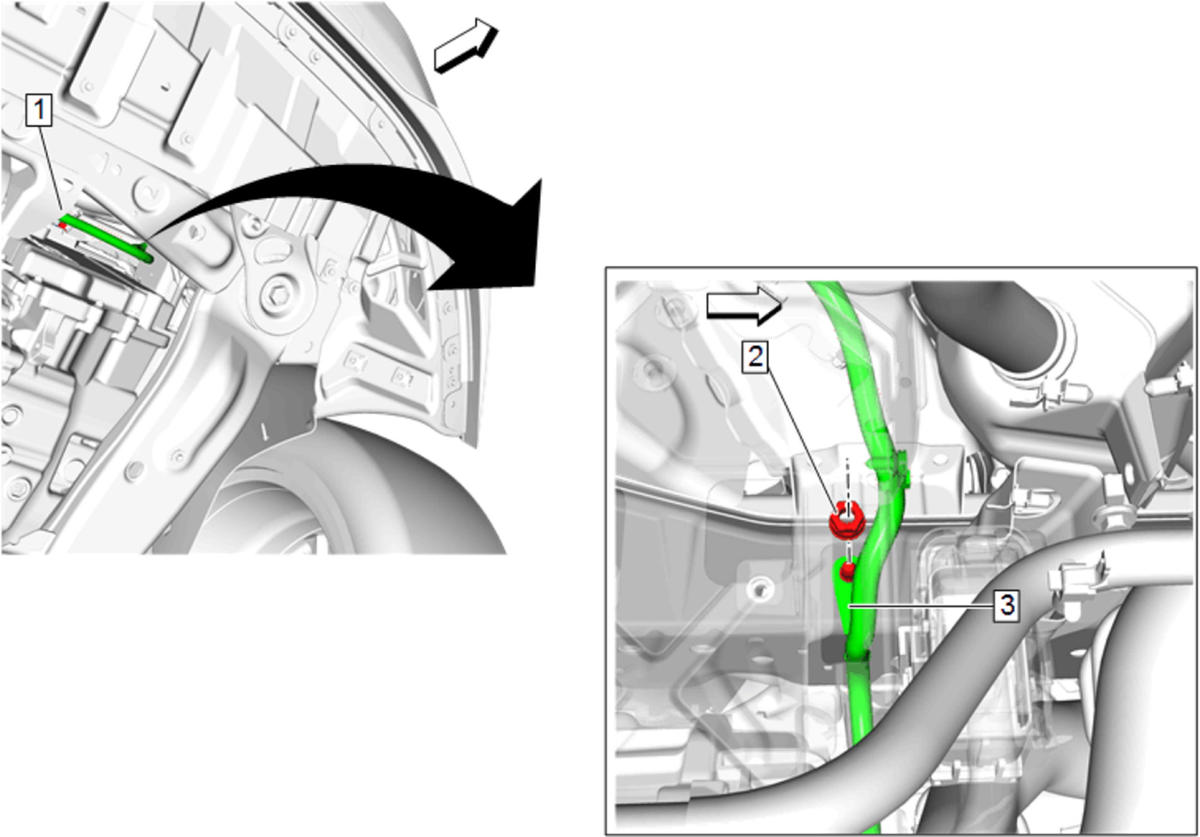

    GM5135327Courtesy of GENERAL MOTORS COMPANY
  5. Battery Negative Cable Ground Nut (2) - Install and tighten 9 N.m (80 lb in)
  6. Retainer (1) - Engage
  7. Lower the vehicle.
  8. Retainer (1) - Engage

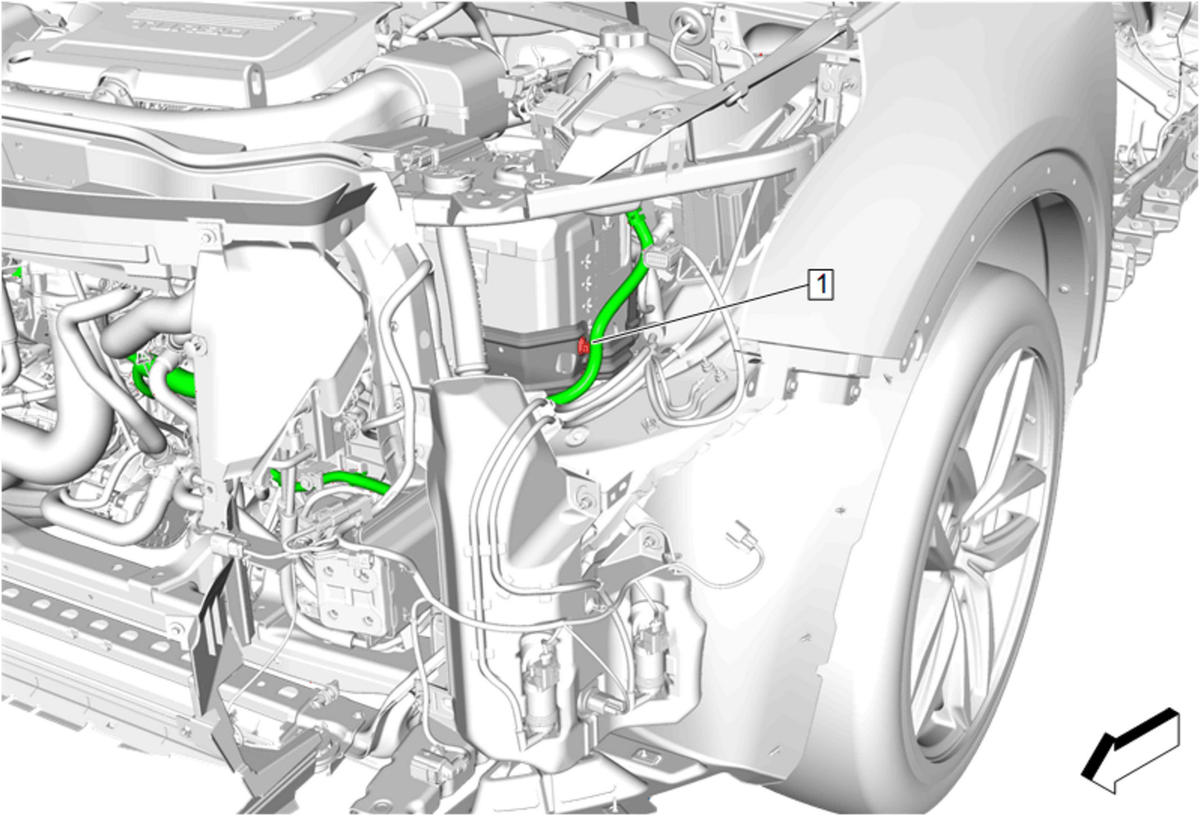

    GM5063353Courtesy of GENERAL MOTORS COMPANY
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
