K60 Steering Column Lock Module
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
|
|

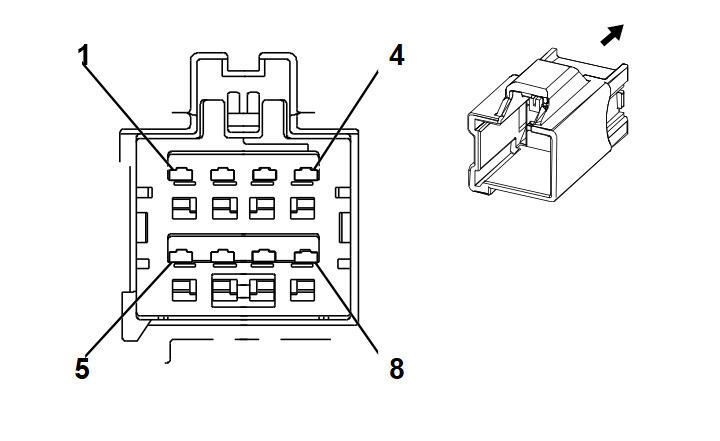

Connector Part Information
- Harness Type: Steering Column
- OEM Connector: 13580897
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way M 1.5 YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GY/WH |
5904 |
Steering Column Lock Status Signal |
I |
- |
| 3 |
0.75 |
BU/VT |
807 |
OFF/Accessory Ignition Voltage |
I |
- |
| 4 |
0.35 |
GN/VT |
1601 |
Steering Column Lock Signal |
I |
- |
| 5 |
0.75 |
RD/GY |
4140 |
Battery Positive Voltage |
I |
- |
| 6 |
0.75 |
BK |
1050 |
Ground |
I |
- |
| 7 |
0.75 |
BK |
1050 |
Ground |
I |
- |
| 8 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
