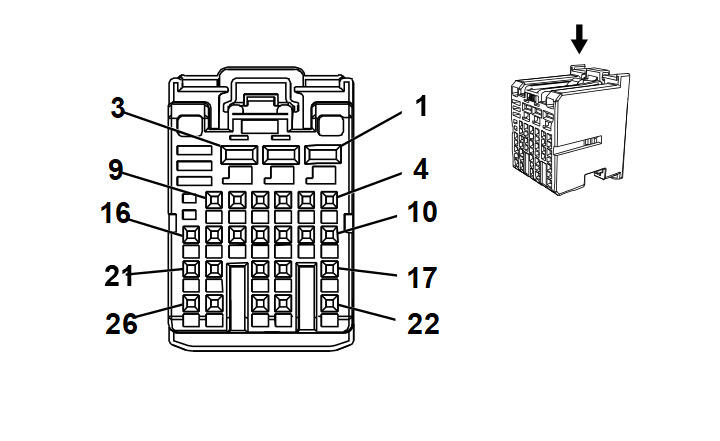

K9 Body Control Module X7
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13962301
- Service Connector: 13587578
- Description: 26-Way F 0.64, 2.8 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13587507 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY |
157 |
Interior Lamp Control |
II |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
WH/BN |
6815 |
Inadvertent Power Control |
II |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
YE/WH |
816 |
Brake Transmission Shift Interlock Solenoid Control |
I |
- |
| 7 |
0.5 |
YE/GY |
57 |
Left Cornering Lamp Control |
I |
- |
| 8 |
0.5 |
GY/GN |
5996 |
Driver Outside Rear View Mirror Puddle Lamp Control |
I |
- |
| 9 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 10 |
0.35 |
BU/BN |
7547 |
Security Lock Relay Control |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
BN/WH |
3269 |
Child Security Lock Motor Status Signal Left Rear |
I |
- |
| 13 |
0.35 |
GN/WH |
1932 |
Shift Select Switch Park Signal |
I |
- |
| 14 |
0.35 |
YE/BU |
5797 |
Rear Closure Handle Switch Open Signal |
I |
- |
| 15 |
0.35 |
YE/BN |
3265 |
Child Security Lock Switch Signal |
I |
- |
| 16 |
0.5 |
WH/BU |
3691 |
Trailer Brake Apply Signal |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
GY/BK |
3268 |
Child Security Lock Motor Status Signal Right Rear |
I |
- |
| 19 |
0.35 |
GY |
156 |
Courtesy Lamp Switch Signal |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
YE/VT |
244 |
Passenger Door Lock Switch Lock Control |
I |
- |
| 22 |
0.35 |
WH/YE |
7557 |
LED Ambient Lighting Control 1 |
I |
- |
| 23 |
0.5 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 24 |
0.35 |
BN/VT |
245 |
Passenger Door Lock Switch Unlock Control |
I |
- |
| 25 |
0.35 |
GN |
4512 |
Wireless Charging System Charge Indicator Control |
I |
- |
| 26 |
- |
- |
- |
Not Occupied |
- |
- |
