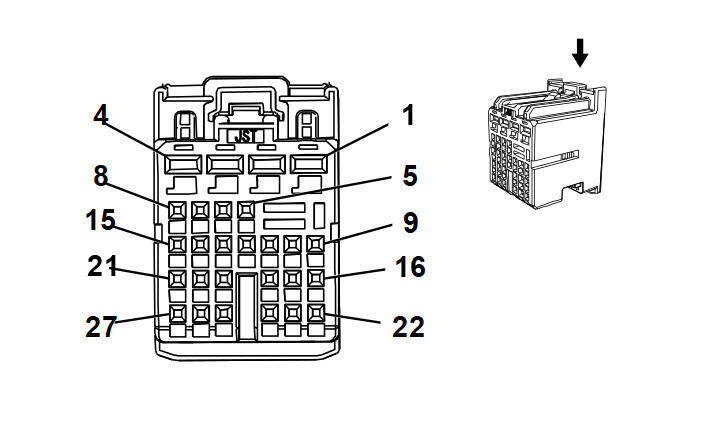

K9 Body Control Module X6
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13962300
- Service Connector: 13587576
- Description: 27-Way F 0.64, 2.8 Series (L-PU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13587507 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
C |
A |
| III |
Not Required |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BU/WH |
195 |
Door Lock Control |
II |
- |
| 2 |
1.5 |
GY/GN |
3271 |
Door Lock Control 2 |
II |
- |
| 3 |
1.5 |
BK |
1850 |
Ground |
II |
- |
| 4 |
1.5 |
BN/YE |
294 |
Door Lock Actuator Unlock Control |
II |
- |
| 5 |
0.35 |
VT/GY |
1303 |
Lift Gate Ajar Switch Signal 1 |
I |
- |
| 6 |
0.5 |
WH/BU |
3203 |
Right Headlamp Bulb Outage Signal |
I |
- |
| 7 |
0.5 |
YE/WH |
58 |
Right Cornering Lamp Control |
I |
- |
| 8 |
0.35 |
VT/WH |
5908 |
Passenger Seat Vent Motor Control 1 |
I |
- |
| 9 |
0.5 |
GN/BU |
6133 |
Local Interconnect Network Serial Data Bus 2 |
I |
- |
| 10 |
0.5 |
GN/YE |
6134 |
Local Interconnect Network Serial Data Bus 3 |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.5 |
YE/BK |
5356 |
Left Tail Lamp Outage Detection Signal |
I |
- |
| 13 |
0.5 |
VT/BU |
7598 |
Glass Breakage Sensor Signal 2 |
III |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
GY/GN |
6190 |
Lift Glass/Rear Compartment Lid Exterior Release Signal |
I |
- |
| 16 |
0.5 |
GN/BN |
6132 |
Local Interconnect Network Serial Data Bus 1 |
I |
- |
| 17 |
0.35 |
GN/VT |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 18 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.5 |
BU/VT |
3204 |
Left Headlamp Bulb Outage Signal |
I |
- |
| 22 |
0.5 |
VT/YE |
5357 |
Right Tail Lamp Outage Detection Signal |
I |
- |
| 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 25 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| 26 |
- |
- |
- |
Not Occupied |
- |
- |
| 27 |
0.35 |
WH/VT |
2092 |
Fuel Saver Mode (ECO) Switch Signal |
I |
- |
