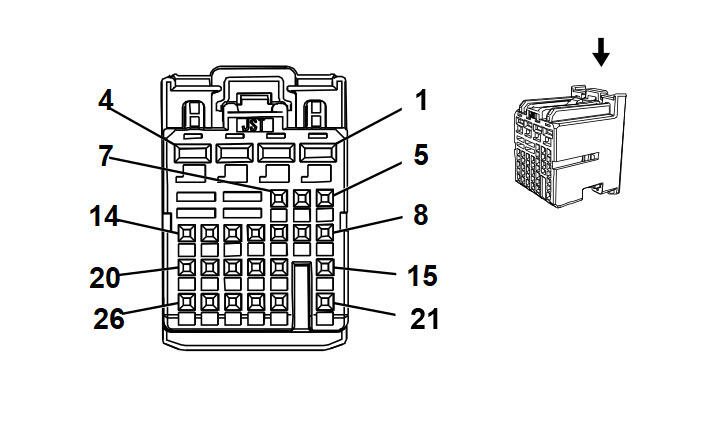

K9 Body Control Module X5
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13962299
- Service Connector: 13587577
- Description: 26-Way F 0.64, 2.8 Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13582298 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13587507 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/BU |
18 |
Left Rear Stop/Turn Lamp Control |
III |
- |
| 2 |
0.75 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
III |
- |
| 3 |
0.75 |
RD/GN |
5140 |
Battery Positive Voltage |
III |
- |
| 4 |
0.75 |
RD/WH |
3440 |
Battery Positive Voltage |
III |
- |
| 5 |
0.35 |
YE/VT |
317 |
Fog Lamp Relay Coil Control |
I |
- |
| 6 |
0.35 |
BK/VT |
5077 |
Current Sensor Low Reference |
I |
- |
| 7 |
0.75 |
BU/BN |
7539 |
Right Front DRL Control |
II |
- |
| 8 |
0.35 |
BU/WH |
5186 |
Left Trailer Turn Signal Lamp Control |
I |
- |
| 9 |
0.35 |
GN/WH |
2270 |
Rear Window Washer Relay Control |
I |
- |
| 10 |
0.5 |
BN |
1317 |
Fog Lamp Relay Control |
I |
- |
| 11 |
0.35 |
GN/BN |
5706 |
Endgate Latch Relay Control |
I |
- |
| 12 |
0.35 |
WH/BU |
6311 |
Cruise/ETC/TCC Brake Signal |
I |
- |
| 13 |
0.35 |
BN/YE |
1970 |
Headlamp Low Beam Relay Control |
I |
- |
| 14 |
0.5 |
VT/BN |
300 |
Run Ignition 3 Voltage |
I |
- |
| 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
VT/YE |
3267 |
Child Security Lock Relay Control |
I |
- |
| 17 |
0.35 |
YE/GY |
5187 |
Right Trailer Turn Signal Lamp Control |
I |
- |
| 18 |
0.35 |
BN/VT |
1969 |
Headlamp High Beam Relay Control |
I |
- |
| 19 |
0.35 |
BN/WH |
28 |
Horn Relay Control |
I |
- |
| 20 |
0.35 |
YE |
5704 |
Endgate Latch Relay Coil Control |
I |
- |
| 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.35 |
BU |
45 |
Park Lamp Relay Control |
I |
- |
| 23 |
0.35 |
YE |
6812 |
Out of Park Signal |
I |
- |
| 24 |
0.35 |
WH/VT |
860 |
Front Windshield Wiper Switch High Signal |
I |
- |
| 25 |
- |
- |
- |
Not Occupied |
- |
- |
| 26 |
0.35 |
BU/BN |
38 |
Backup Lamp Relay Control |
I |
- |
