K9 Body Control Module X4
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13962485
- Service Connector: 13587579

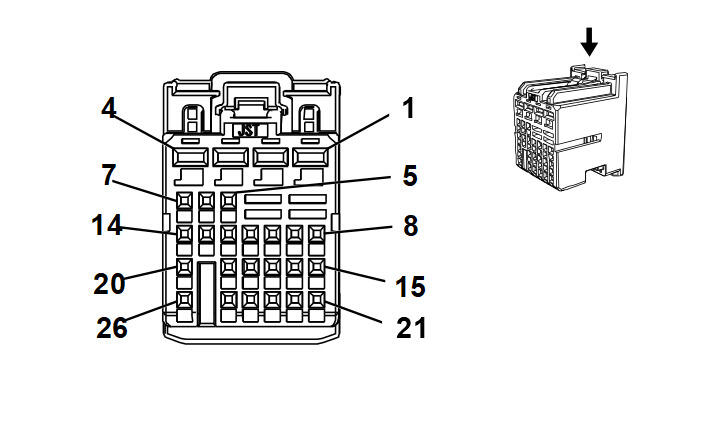

- Description: 26-Way F 0.64, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13582298 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13587507 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
YE |
712 |
Left Headlamp Low Beam Control |
III |
- |
| 2 |
0.75 |
YE |
312 |
Right Headlamp Low Beam Control |
III |
- |
| 3 |
0.75 |
GN/VT |
1315 |
Right Front Turn Signal Lamp Control |
III |
- |
| 4 |
0.5 |
BN/GN |
19 |
Right Rear Stop/Turn Lamp Control |
III |
- |
| 5 |
0.75 |
WH/YE |
7541 |
Right Rear Stop Lamp Control |
II |
- |
| 6 |
0.75 |
GY/YE |
7542 |
Left Rear Stop Lamp Control |
II |
- |
| 7 |
0.75 |
GY/BU |
7538 |
Left Front DRL Control |
II |
- |
| 8 |
0.35 |
GY/YE |
6188 |
Lift Glass/Rear Compartment Lid Motor Release Control |
I |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
VT/WH |
5065 |
Stop Lamp Relay Coil Control |
I |
- |
| 12 |
0.35 |
GY/VT |
755 |
RAP Relay Coil Control |
I |
- |
| 13 |
0.5 |
GN/YE |
6846 |
Rear License Lamp Control |
I |
- |
| 14 |
0.35 |
BN/GY |
2268 |
Windshield Washer Relay Control |
I |
- |
| 15 |
0.35 |
GN/VT |
5199 |
Run/Crank Relay Coil Control |
I |
- |
| 16 |
0.35 |
GY |
91 |
Windshield Wiper Motor Relay Coil Control |
I |
- |
| 17 |
0.5 |
BN/GN |
196 |
Windshield Wiper Motor Park Switch Signal |
I |
- |
| 18 |
0.35 |
WH/YE |
5075 |
Current Sensor Signal |
I |
- |
| 19 |
0.35 |
BU/YE |
6844 |
ABS/TCS Hill Descent Control Switch Signal |
I |
- |
| 20 |
0.75 |
RD/YE |
2340 |
Battery Positive Voltage |
II |
- |
| 21 |
0.35 |
BU/VT |
5076 |
Current Sensor Control |
I |
- |
| 22 |
0.35 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
I |
- |
| 23 |
0.5 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
- |
| 24 |
0.5 |
BN/GN |
109 |
Hood Ajar Switch Signal |
I |
- |
| 25 |
0.35 |
YE/BU |
4086 |
Pushbutton Start Challenge Active Signal |
I |
- |
| 26 |
0.75 |
BK/WH |
451 |
Signal Ground |
II |
- |
