Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

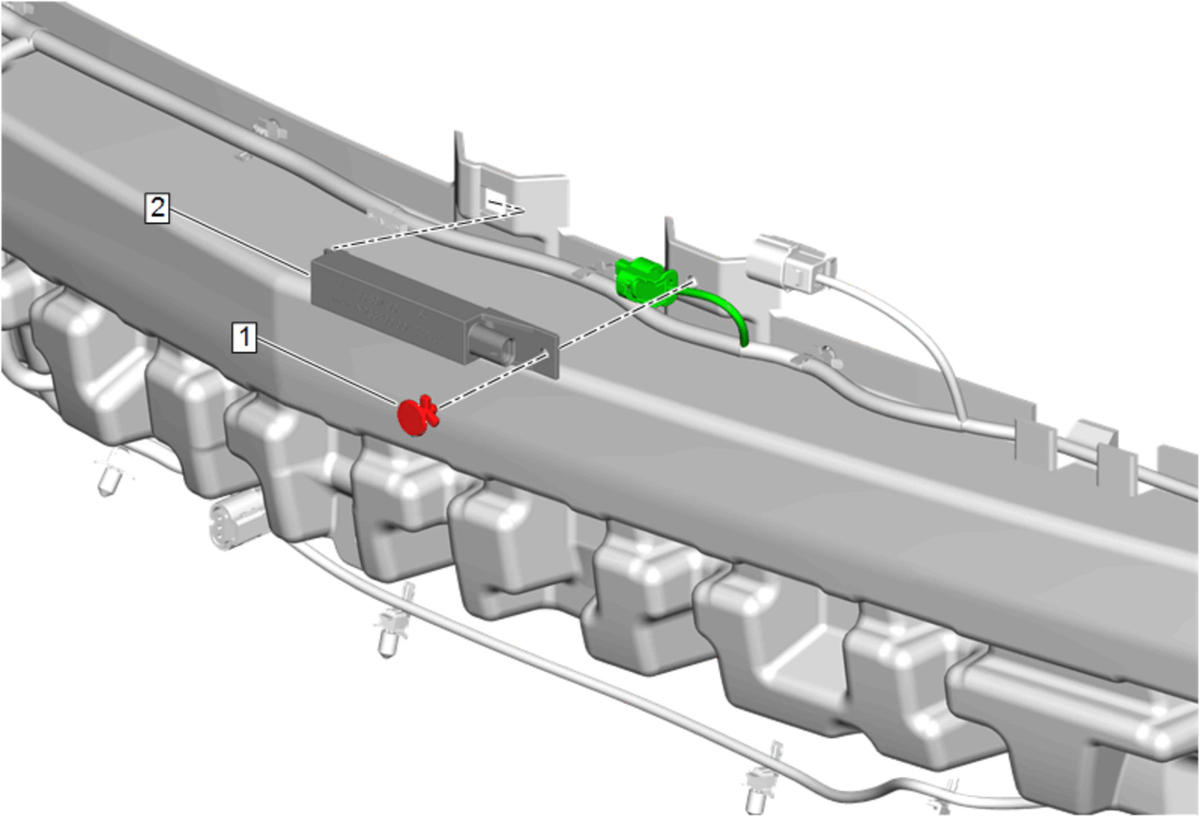

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Ignition Lock Key Transmitter Antenna Rivet
WARNING:
Refer to Eye Protection Warning . Procedure Drill out the rivet. |
| 2 | Ignition Lock Key Transmitter Antenna Procedure Release the retaining tab. |
