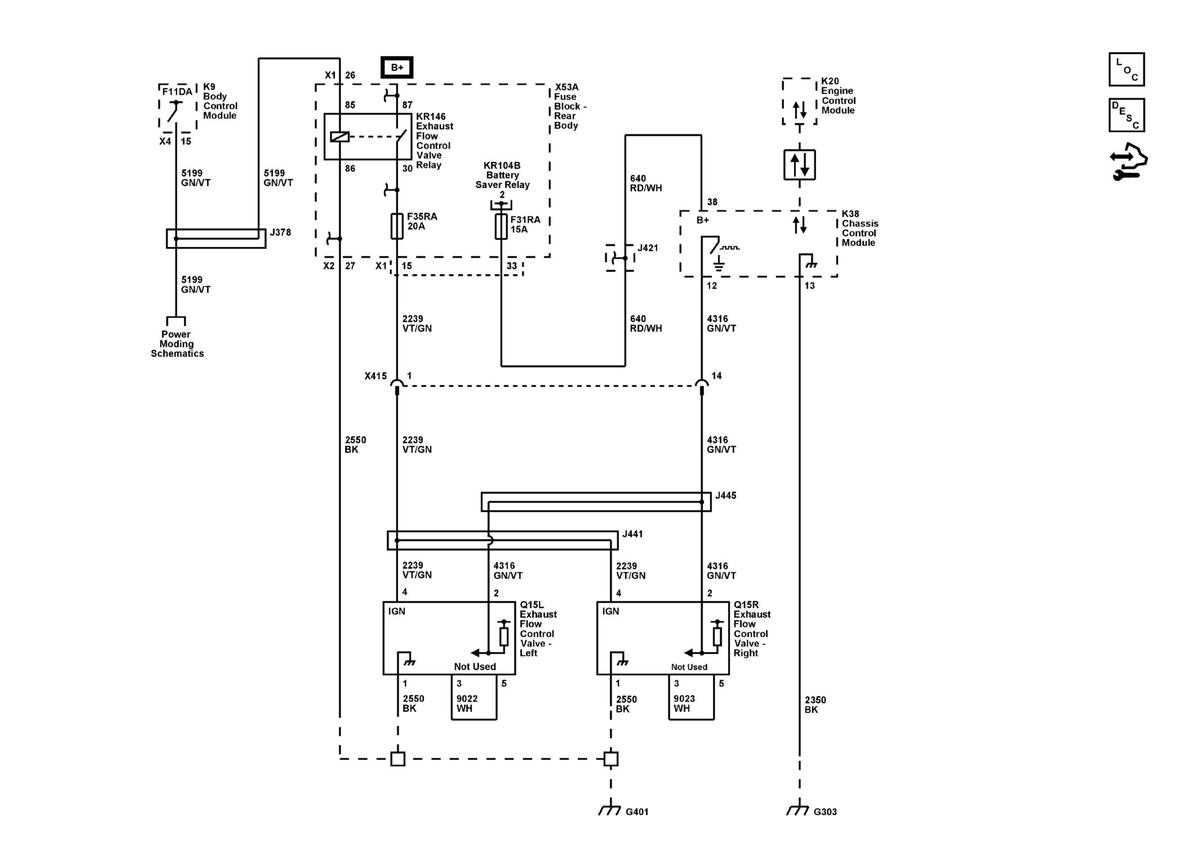

Home >> Cadillac >> 2019 >> CTS Base, AWD >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Schematic Wiring Diagrams >> Exhaust System Wiring Schematics >> Engine Exhaust Flow Control
