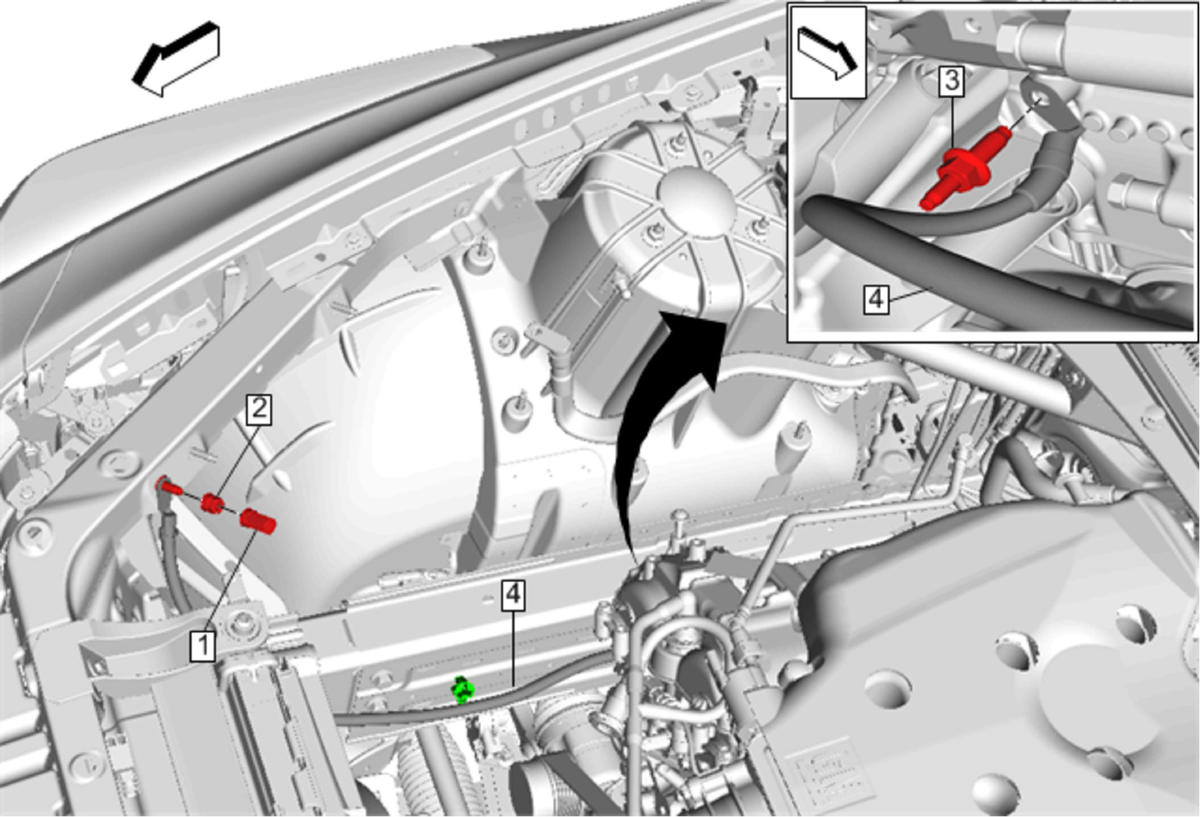

Battery Negative Cable Extension Cable Replacement (LGX)
| Callout | Component Name |
|---|---|
| 1 | Nut Cap |
| 2 | Battery Negative Cable Extension Cable Fastener
CAUTION:
Refer to Fastener Caution . Tighten 15 N.m (11 lb ft) |
| 3 | Battery Negative Cable Extension Cable Fastener Tighten 22 N.m (16 lb ft) |
| 4 | Battery Negative Cable Extension Cable |
