Home >> Cadillac >> 2019 >> CTS Base, AWD >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

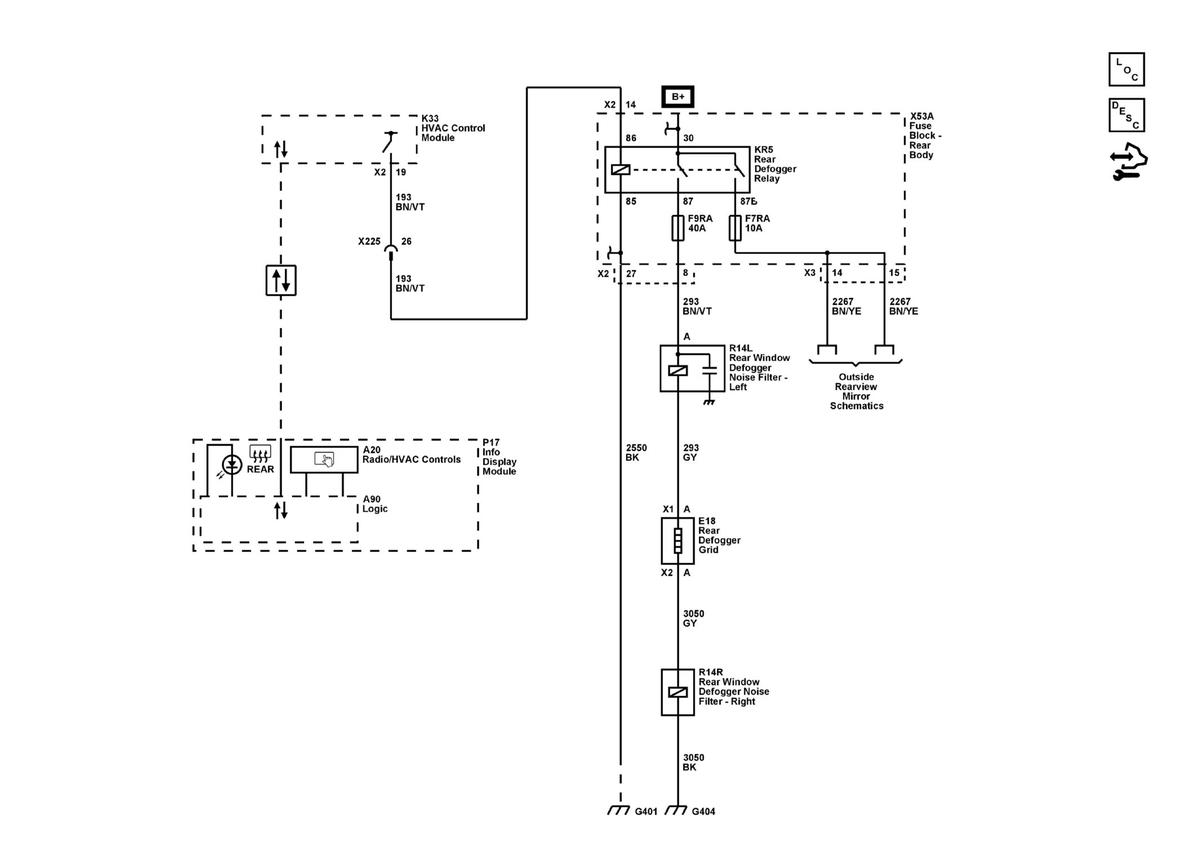

Defogger Wiring Schematics: Defogger

GM4933418

Courtesy of GENERAL MOTORS COMPANY
