Headlamp Control Module Replacement

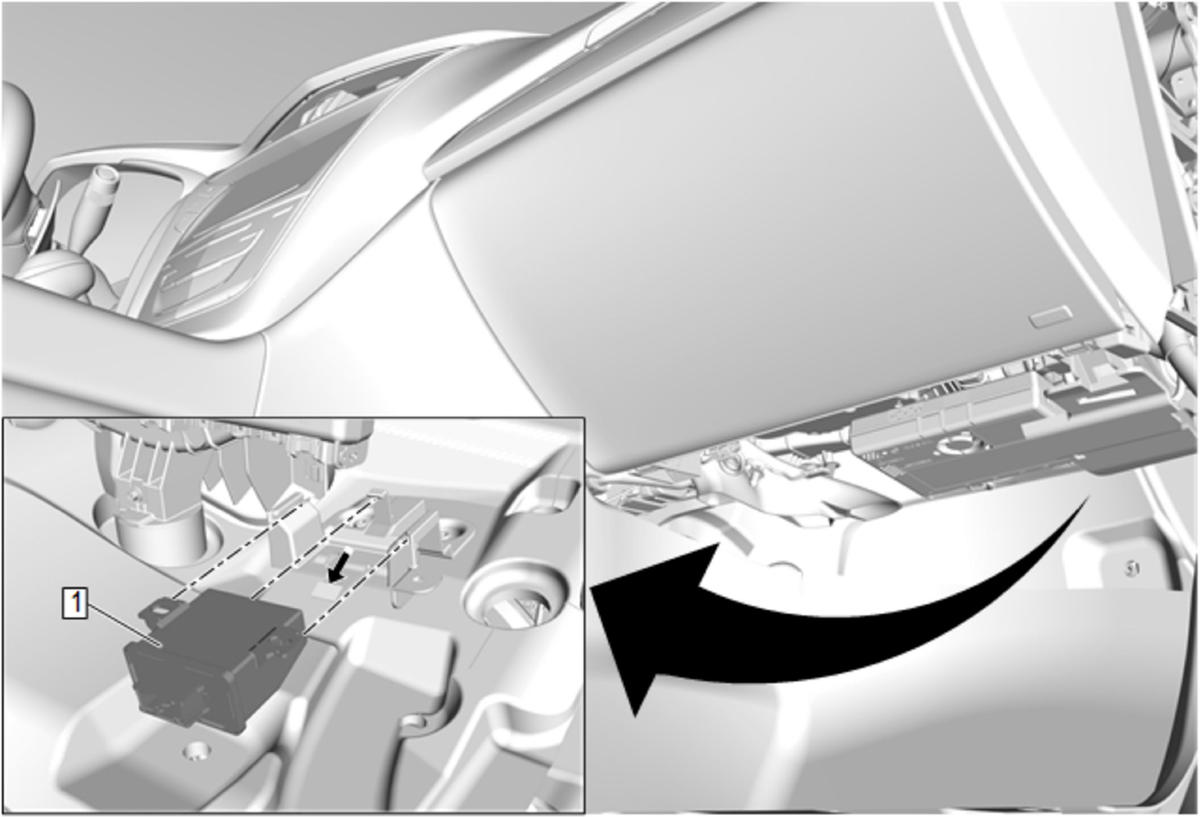

GM5282954Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1 Headlamp Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
  3. Perform the necessary programming and setup procedure:Control Module References
