Radio Control Assembly Replacement

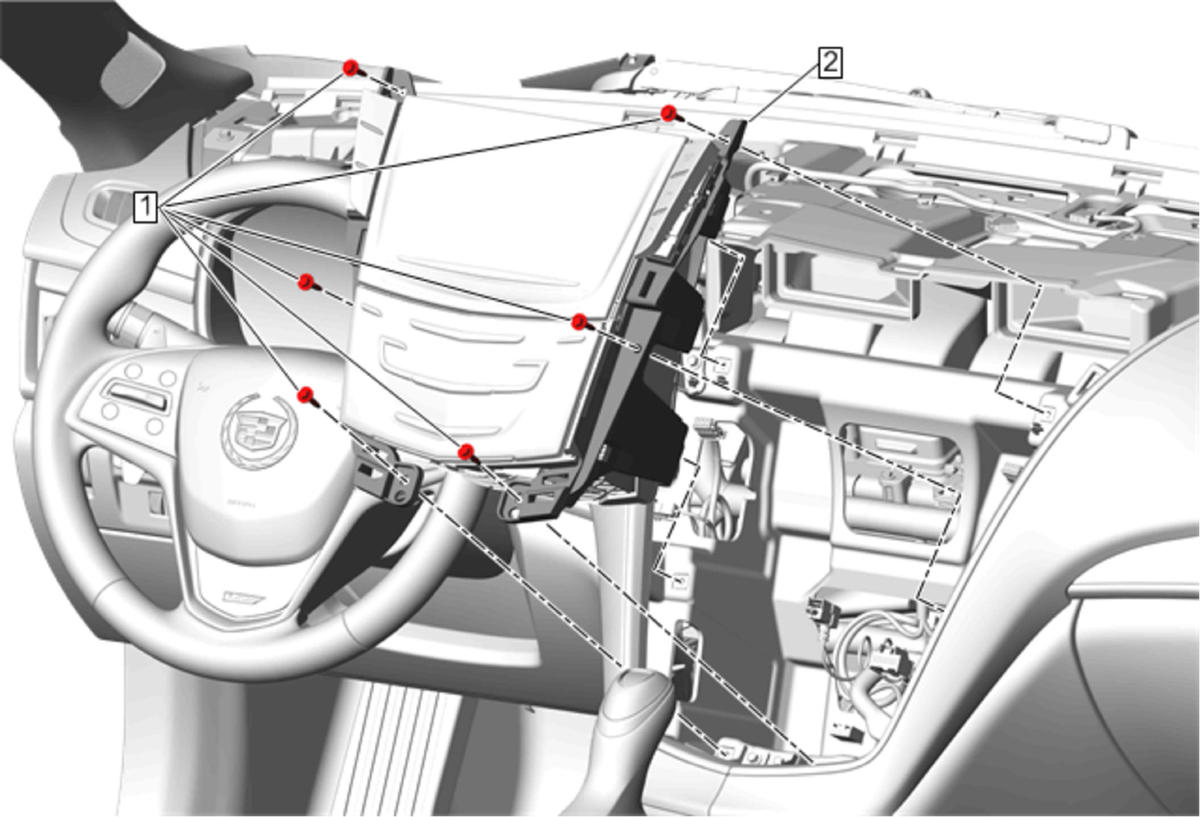

GM4070408Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Accessory Center Trim Plate Replacement
  2. Instrument Panel Trim Plate Replacement
1 Radio Control Fasteners [6x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radio Control Assembly

Procedure

  1. Remove the radio control assembly from the instrument panel carrier.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
