Installation Procedure

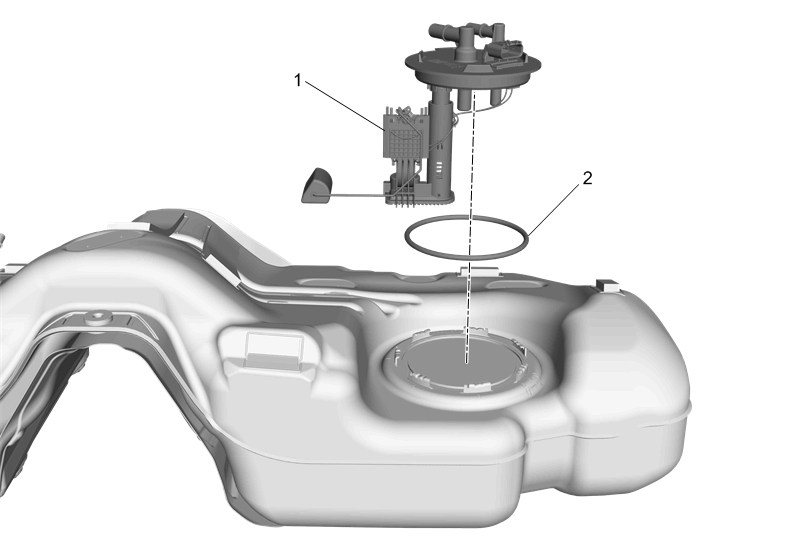

  1. GM5080845Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Sender (1) - Install

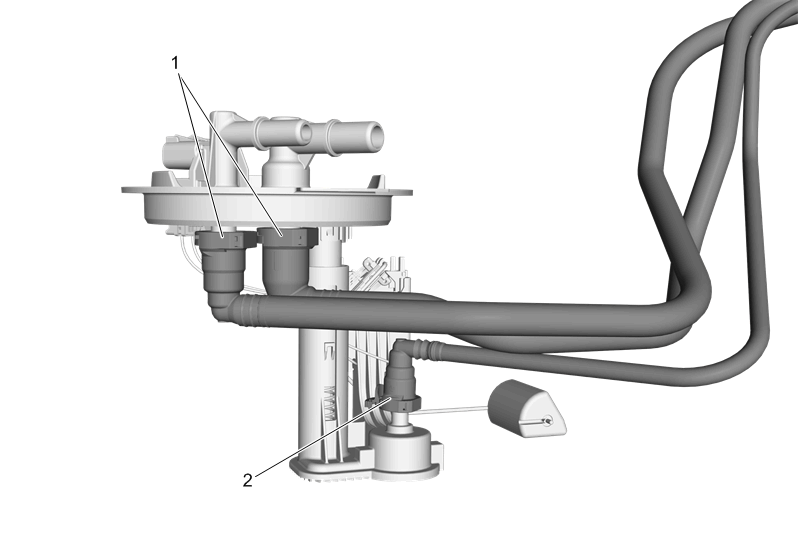

  3. GM5080846Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  4. Fuel Vent Pipe (1) - Connect [2x] - Plastic Collar Quick Connect Fitting Service

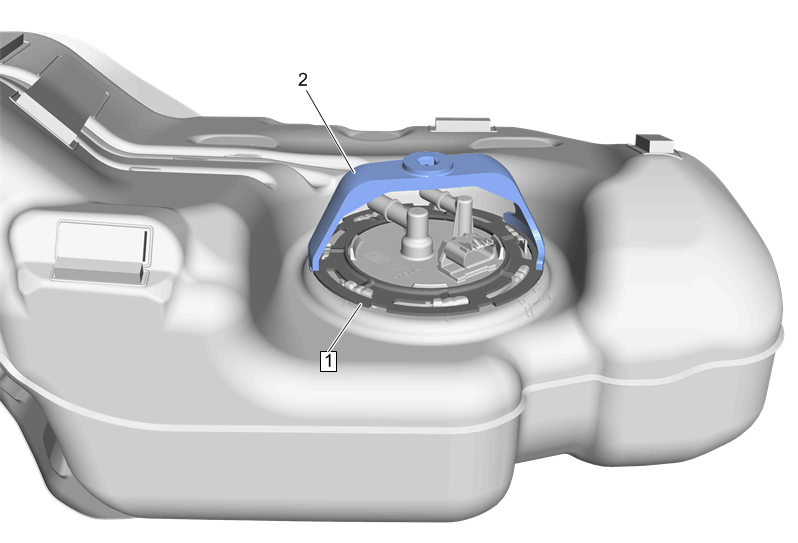

  5. GM5080844Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Ring (1) - Install - CH-45722  Fuel Sender Lock Ring Wrench (2)

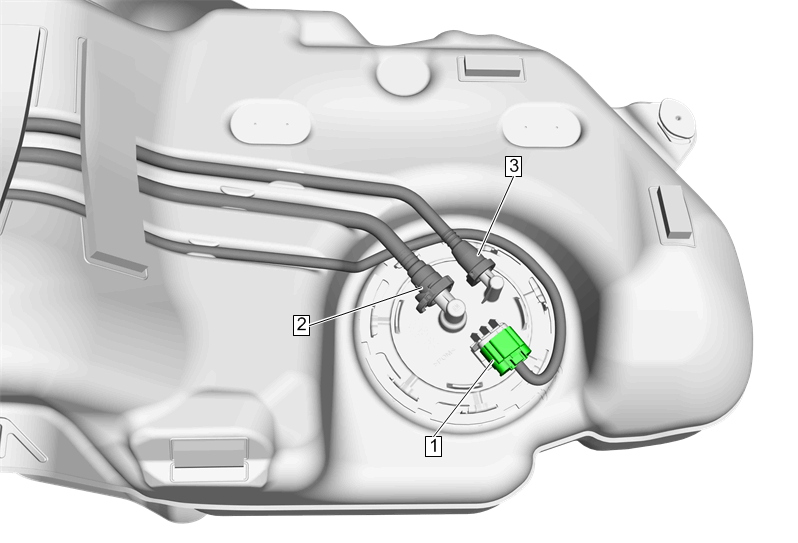

  6. GM5080843Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Valve Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  7. Evaporative Emission Canister Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  8. Electrical Connector (1) - Connect
  9. Fuel Tank - Install - Fuel Tank Replacement
