Fuel Feed Pipe Protector Replacement

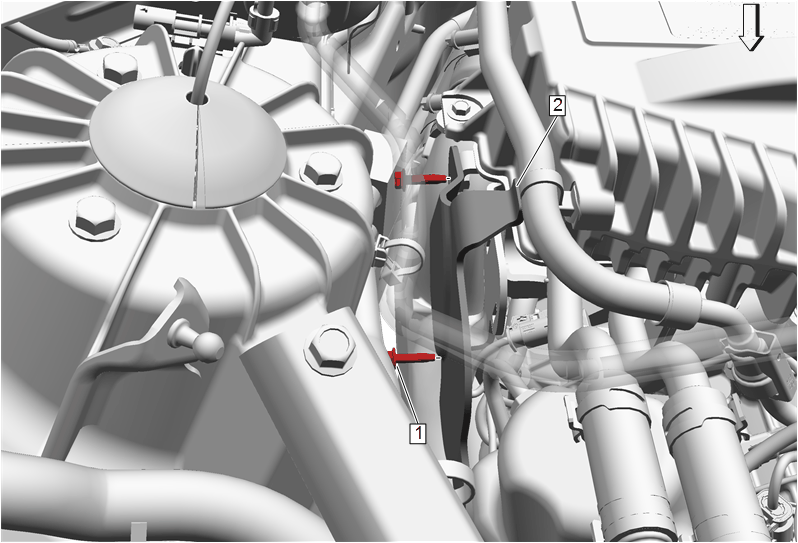

GM5226835Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fuel Feed Pipe Protector Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
8.5 N.m (75 lb in)
2 Fuel Feed Pipe Protector
