Installation Procedure

  1. GM4256722Courtesy of GENERAL MOTORS COMPANY

    Generator (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Mounting Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
  3. GM4250059Courtesy of GENERAL MOTORS COMPANY

    Generator Battery Jumper Cable (2) - Install

  4. Battery Positive Cable Nut (1) @ Generator - Install and tighten 15 N.m (11 lb ft)
  5. GM4256704Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

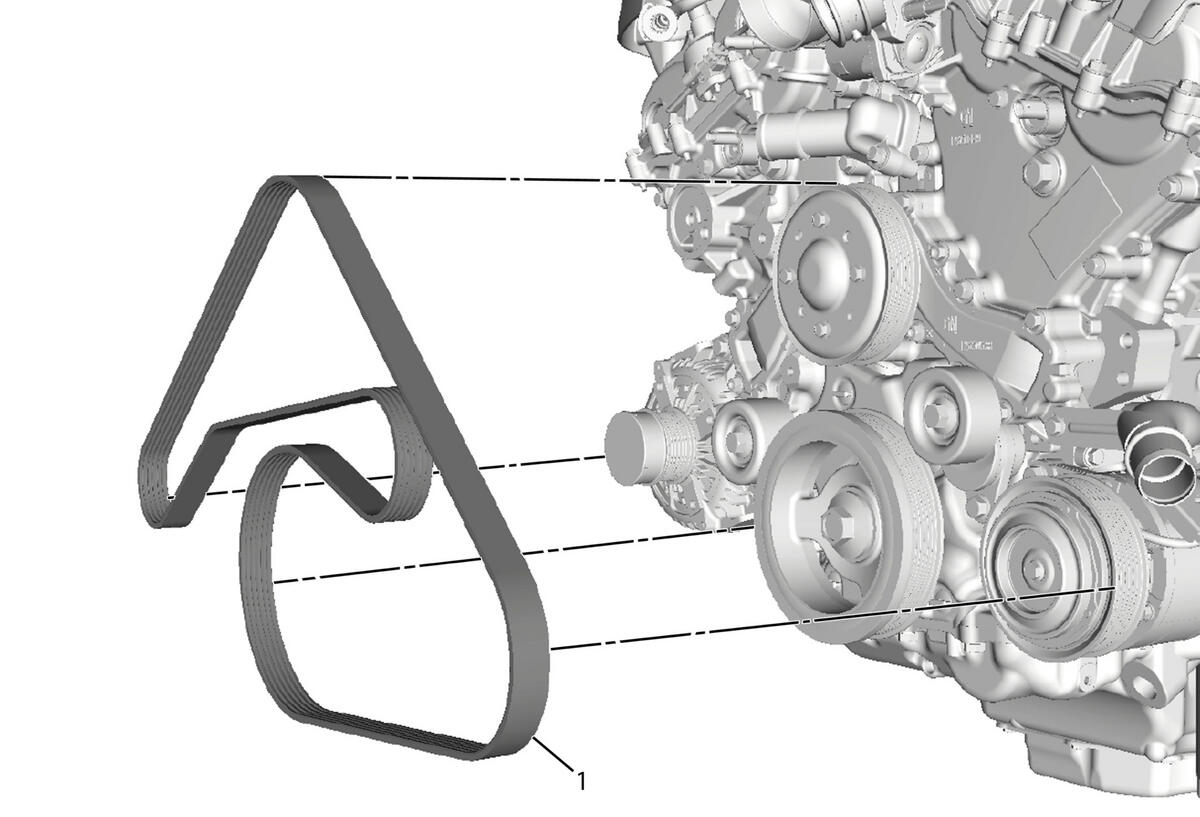

  6. Fig 1: Identifying Drive Belt Routing
    GM4111093Courtesy of GENERAL MOTORS COMPANY

    Drive Belt (1) - Install - Drive Belt Replacement (LGX)

  7. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
