Installation Procedure

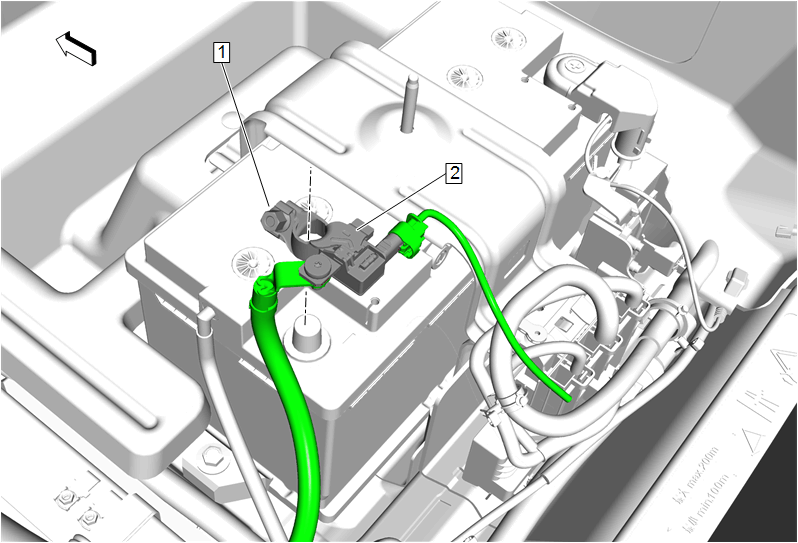

  1. GM5073868Courtesy of GENERAL MOTORS COMPANY

    Battery Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Post Negative Cable Clamp Nut (1) - Install and tighten 4.5 N.m (40 lb in)
  3. GM5073865Courtesy of GENERAL MOTORS COMPANY

    Battery Cover (1) - Install

  4. Battery Cover Bolt (2) - Install and tighten [2x] 22 N.m (16 lb ft)
  5. GM5073863Courtesy of GENERAL MOTORS COMPANY

    Rear Body Fuse Block Cover (2) - Install

  6. Retaining Tab (1) - Engage
  7. GM5073861Courtesy of GENERAL MOTORS COMPANY

    Spare Tire (2) - Install

  8. Jack Stowage Retainer (1) - Hand tighten
  9. GM4255070Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Trim (1) - Install - Rear Compartment Floor Panel Trim Replacement
