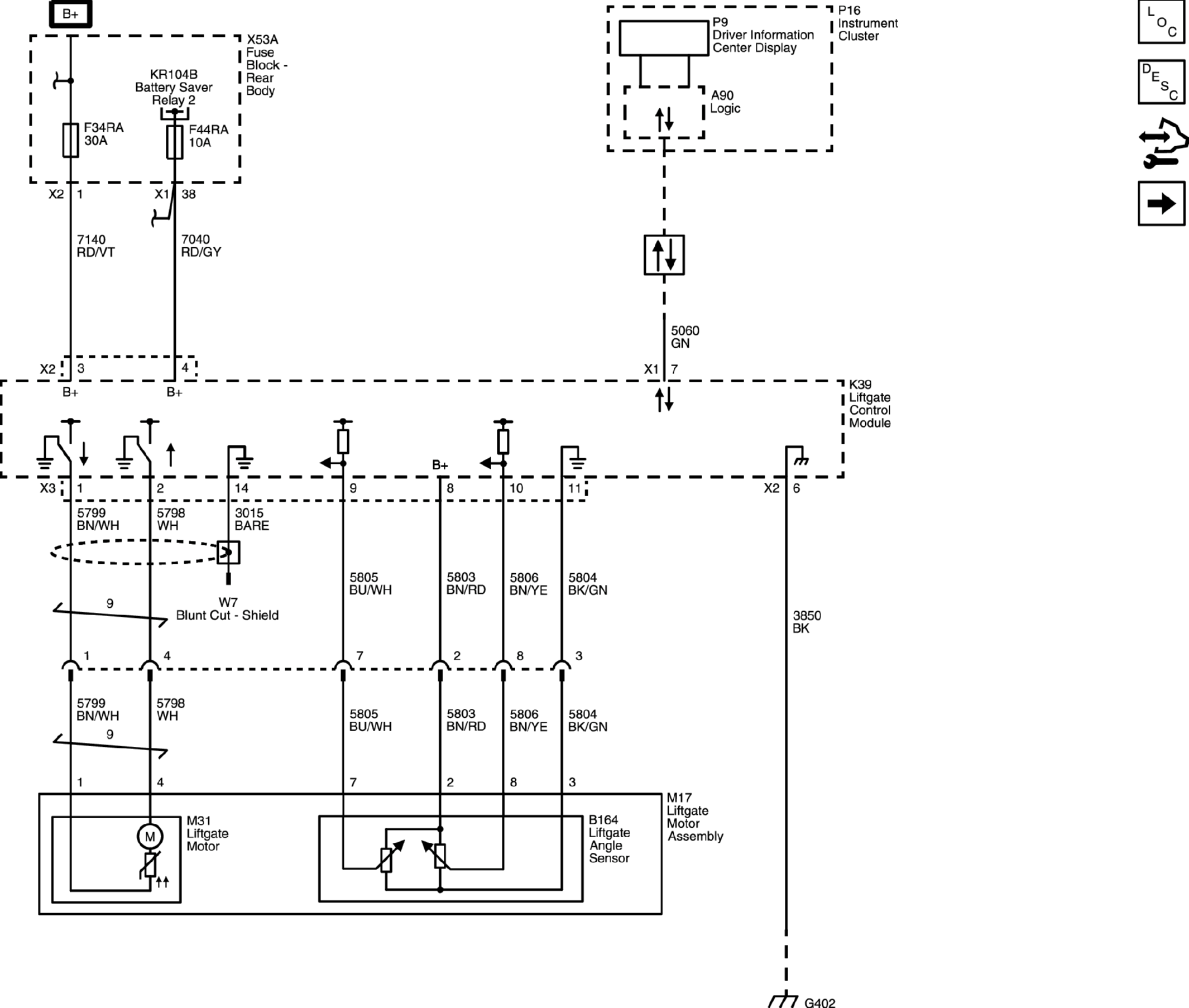

Module Power, Ground, Serial Data, and Liftgate Motor

GM5026486

Courtesy of GENERAL MOTORS COMPANY
