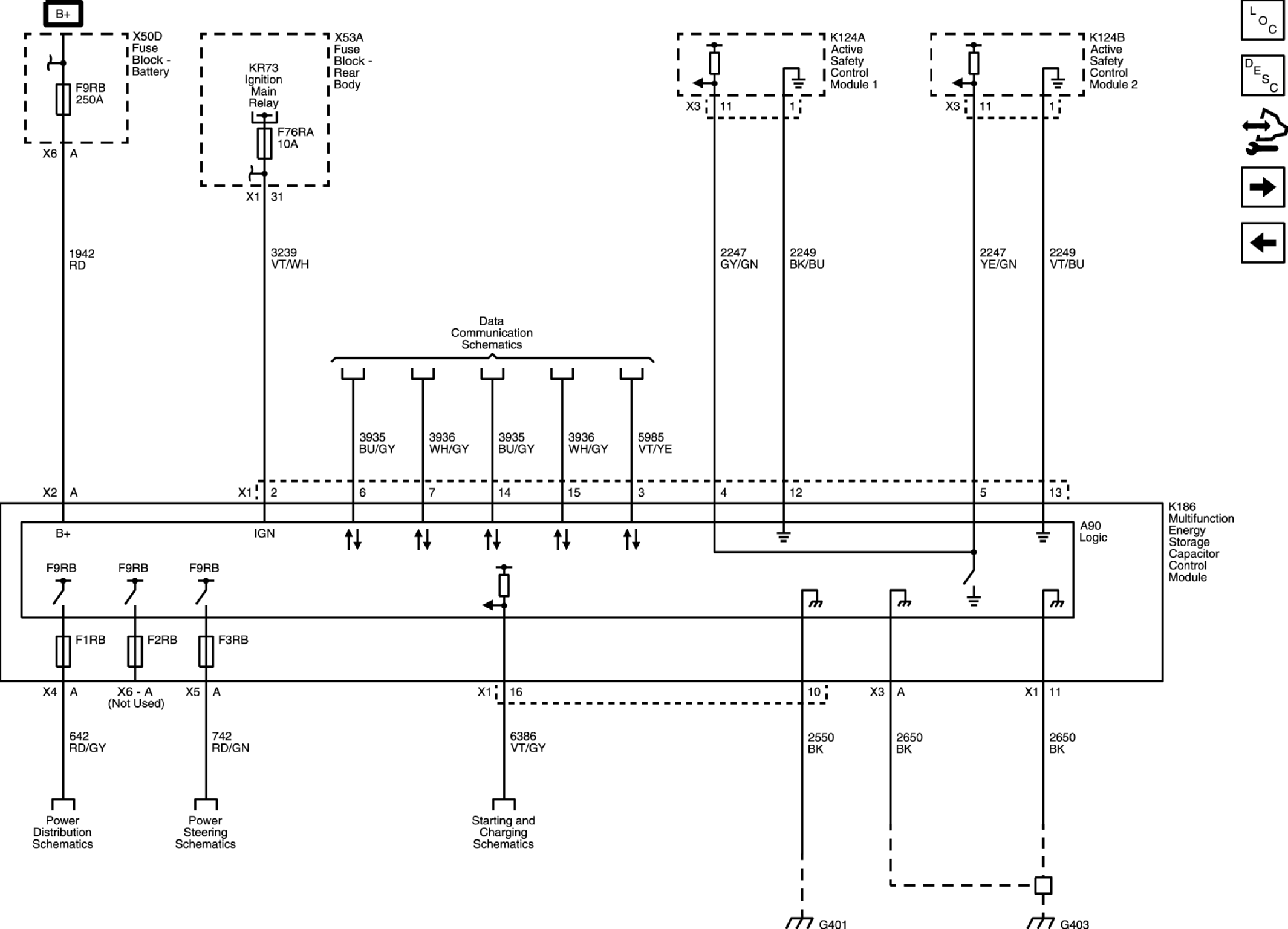

Multifunction Energy Storage Capacitor Control Module

GM5027201

Courtesy of GENERAL MOTORS COMPANY
