Front Seat Heater Control Module Replacement (With W2E)

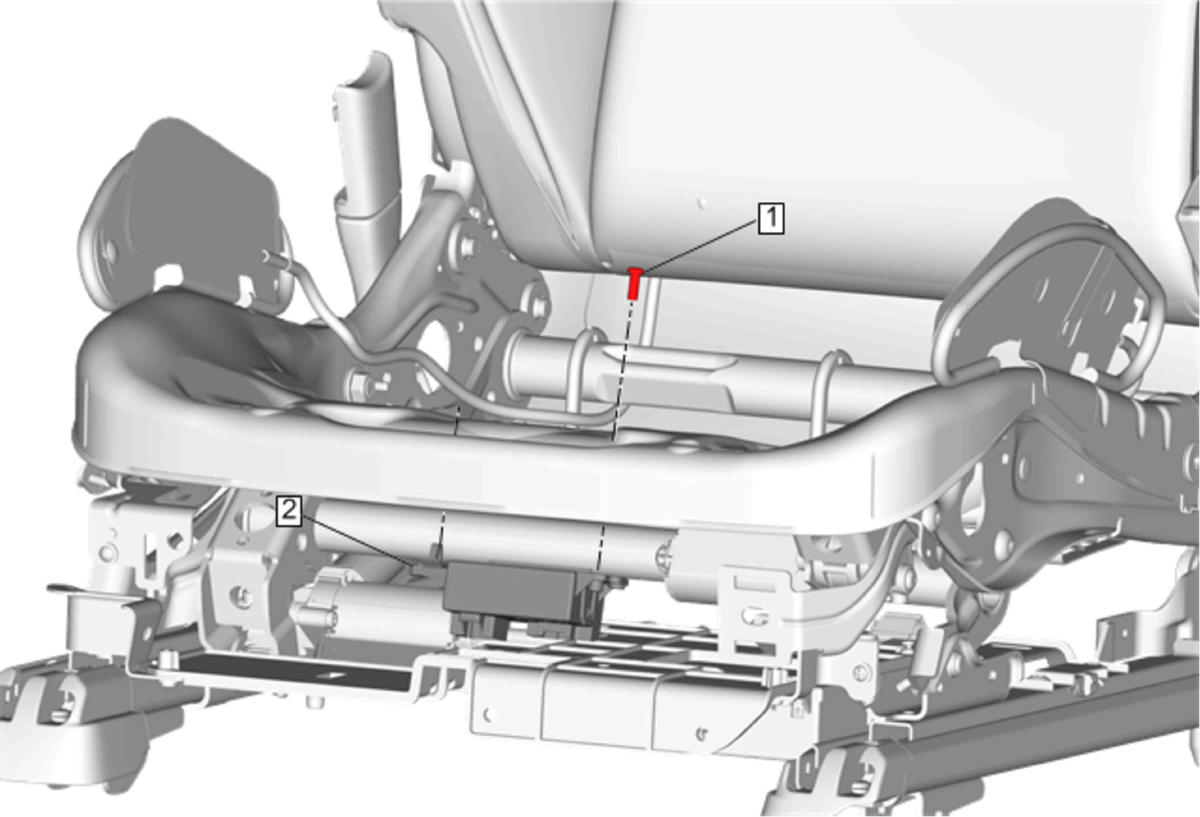

GM4260603Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Driver or Passenger Seat Cushion Outer Finish Panel Replacement (With W2E)
  2. Disengage the J-channel retainers from the seat cushion frame and reposition the seat cushion cover and pad. Front Seat Cushion Cover and Pad Replacement (With W2E)
1 Front Seat Heater Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Seat Heater Control Module
Procedure
Disconnect the electrical connector.
