Front Side Door Window Switch Replacement - Left Side

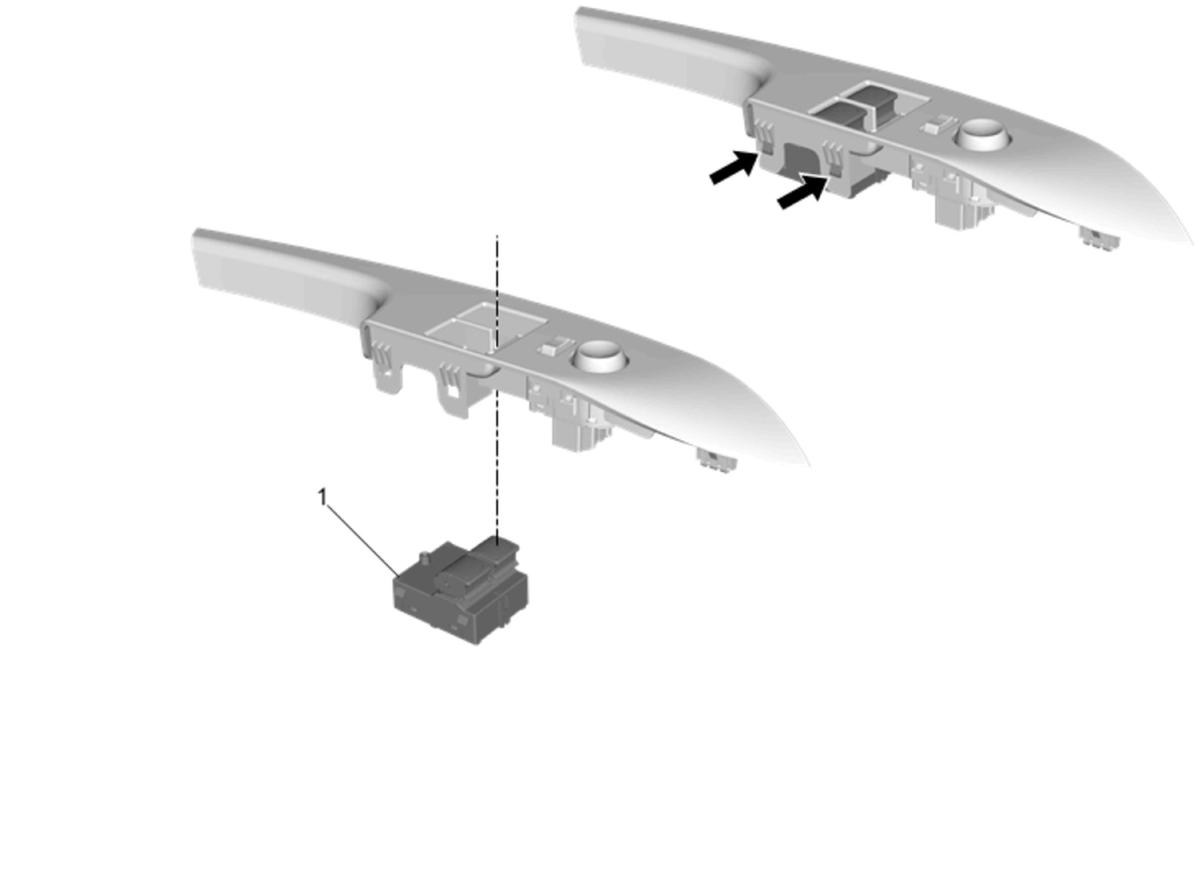

GM3701479Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement .
1 Front Side Door Window Switch Assembly - Left Side

Procedure

  1. Release tabs on switch to remove from the front side door armrest switch mount plate.
  2. Refer to Control Module References for programming and set up procedures, if required.
