Navigation Signal Splitter Replacement

Courtesy of GENERAL MOTORS COMPANY

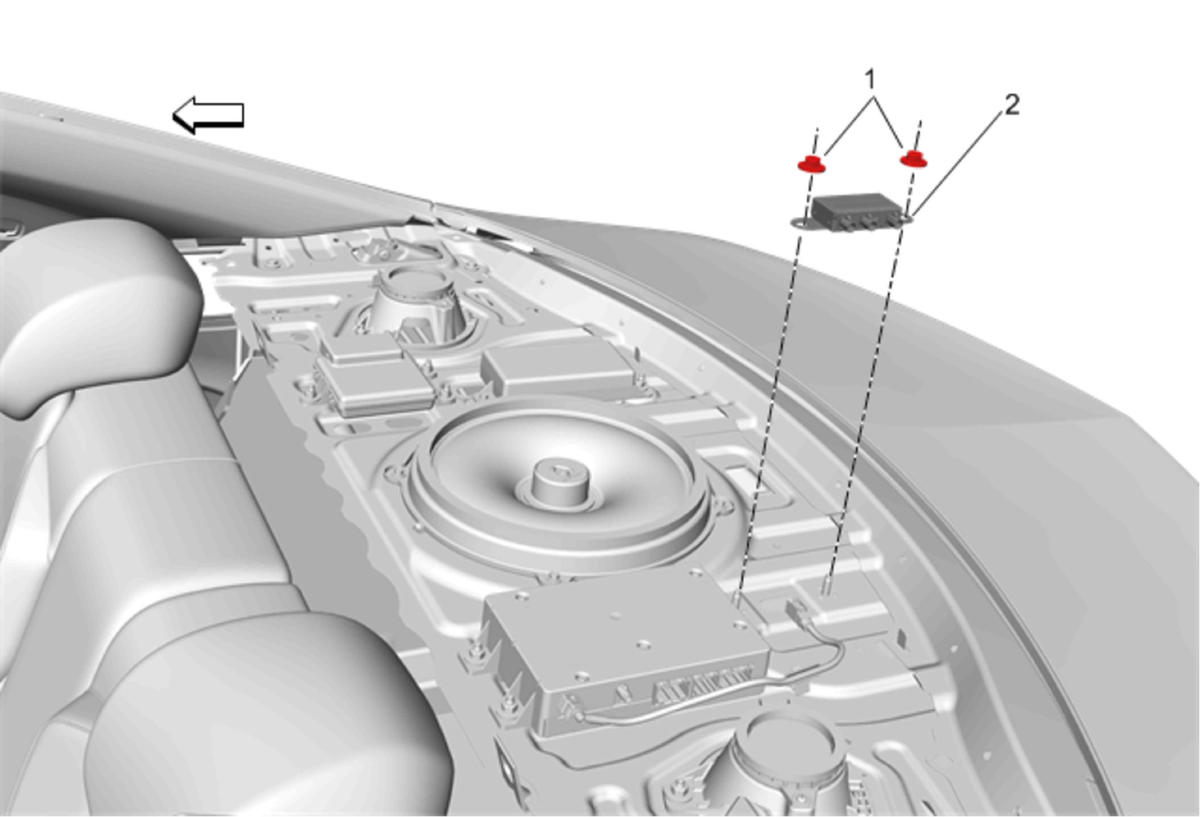

Callout	Component Name
Preliminary Procedure  Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Navigation Signal Splitter Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Navigation Signal Splitter Procedure  Disconnect the electrical connector.
