Card Reader Receptacle Replacement

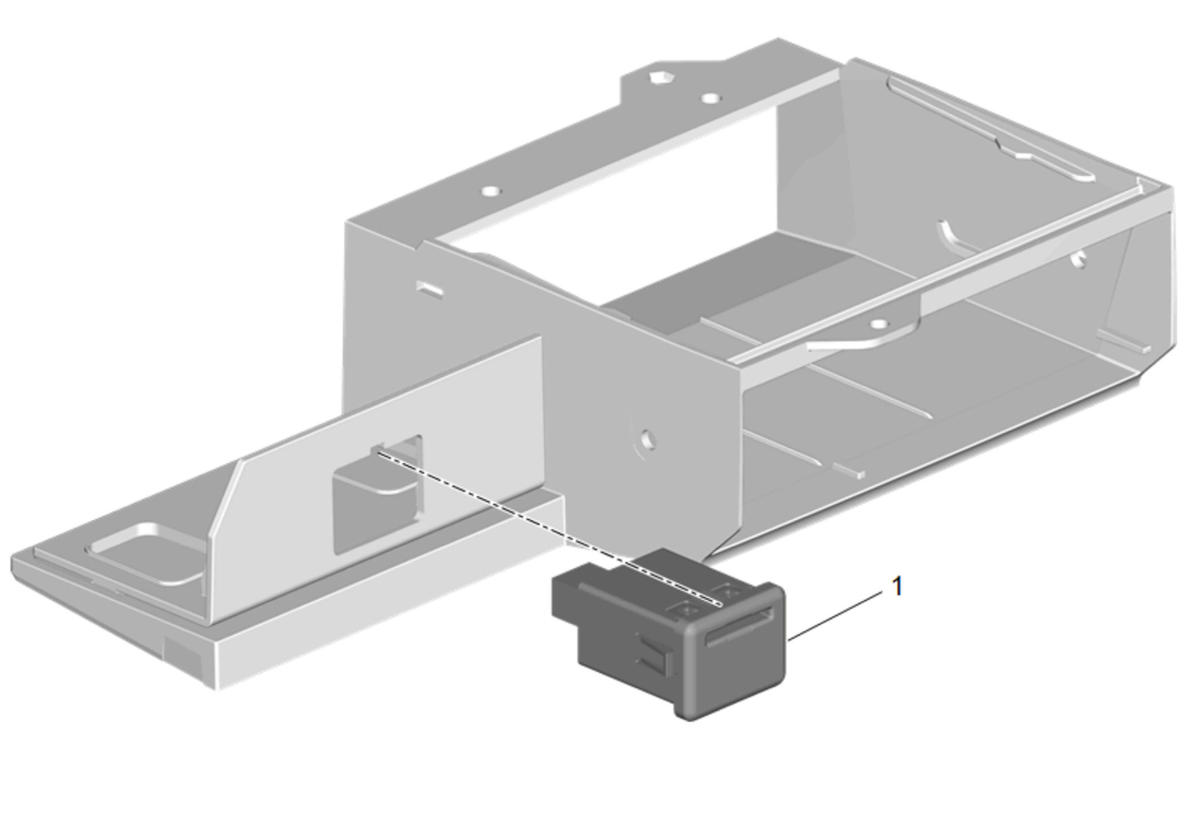

GM5152864Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Compartment Shelf Replacement
1 Card Reader Receptacle

Procedure

  1. Release the retaining tabs.
  2. Transfer components as necessary.
