S46B Liftgate Unlatch Switch (TC2)
 Courtesy of GENERAL MOTORS COMPANY
|

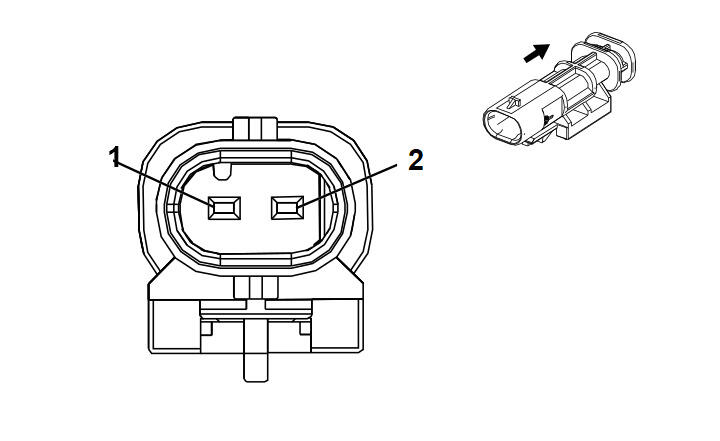

Connector Part Information
- Harness Type: Body
- OEM Connector: 13788295
- Service Connector: 22836728
- Description: 2-Way M 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
6112 |
Power Lift Gate On/Off Switch Signal |
I |
- |
| 2 |
0.35 |
BK/VT |
5801 |
Lift Gate Object Sensor Low Reference |
I |
- |
