Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

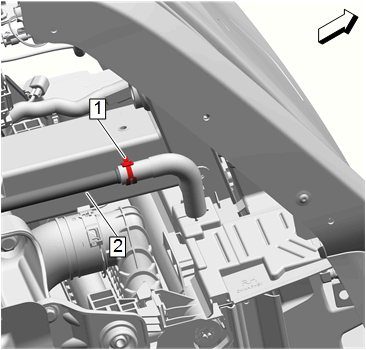

Drive Motor Power Inverter Module Coolant Outlet Pipe (2)@Drive Motor Control Module Cooling Inlet Hose - Install
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

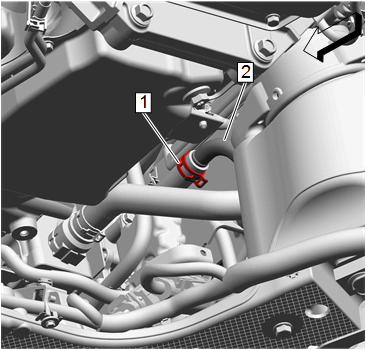

Generator Control Module Coolant Radiator Bolt (1)@Accessory DC Power Control Module - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Inverter Module Coolant Outlet Pipe (2)@Drive Motor Control Module Radiator Outlet Hose - Install
Drive Motor Generator Control Module Radiator Outlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Generator Control Module Coolant Radiator Bolt (1)@Drivetrain and Front Suspension Cradle - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Engine Front Splash Shield - Right Side- Front (4) - Install - Engine Front Splash Shield Replacement - Right Side (Rear)Engine Front Splash Shield Replacement - Right Side (Front)
Courtesy of GENERAL MOTORS COMPANY

Engine Lower Front Splash Shield (2) - Install - Engine Lower Front Splash Shield Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

Drivetrain and Front Suspension Cradle Plate (3) - Install - Drivetrain and Front Suspension Cradle Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner-Right Side (2) - Install - Front Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Tire Front Air Deflector-Right Side (2) - Install - Front Tire Front Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Lower Stiffener (3) - Install - Front Bumper Fascia Lower Stiffener Replacement
Fill the power electronics and auxiliary radiator cooling system. Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Enable the high voltage system. High Voltage Enabling
Start the engine and check for coolant leaks.
