Auxiliary Blower Motor Control Replacement

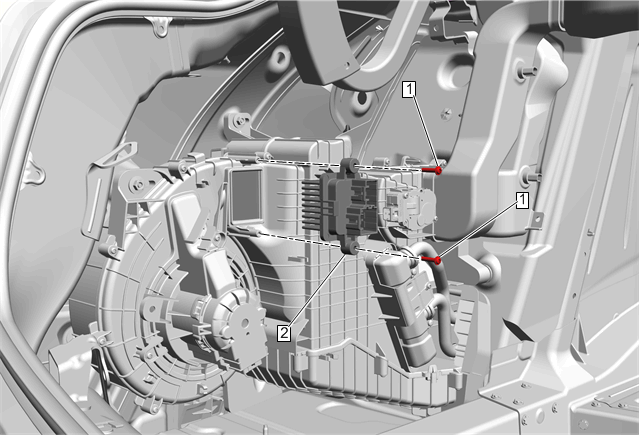

GM4245708Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Side Trim Replacement - Left Side (Without HP9)Rear Compartment Side Trim Replacement - Left Side (With HP9)
1 Auxiliary Blower Motor Control Module Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Auxiliary Blower Motor Control
Procedure
Disconnect the electrical connectors.
