Installation Procedure

  1. GM4278586Courtesy of GENERAL MOTORS COMPANY

    Air Distributor Case (1) - Install

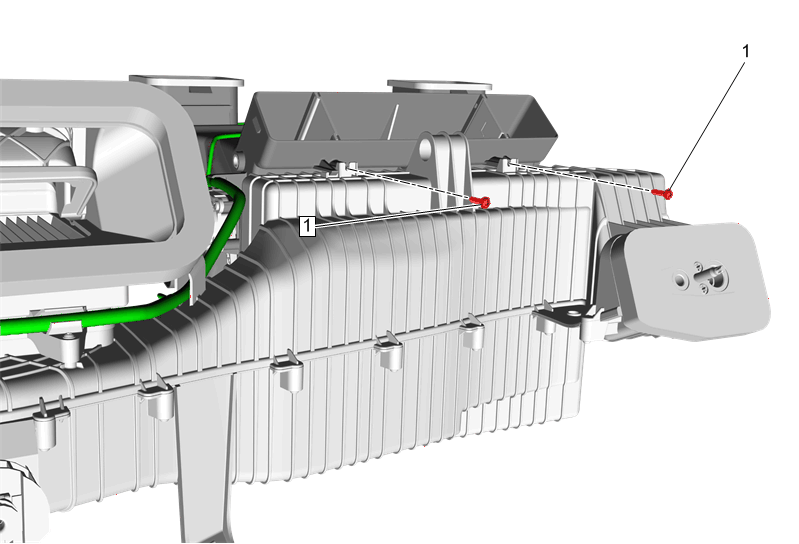

  2. GM4278580Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Heater and Air Conditioning Evaporator and Blower Upper Case Screw (2) - Install and tighten to 2.5 N.m (22 lb in) [2x]

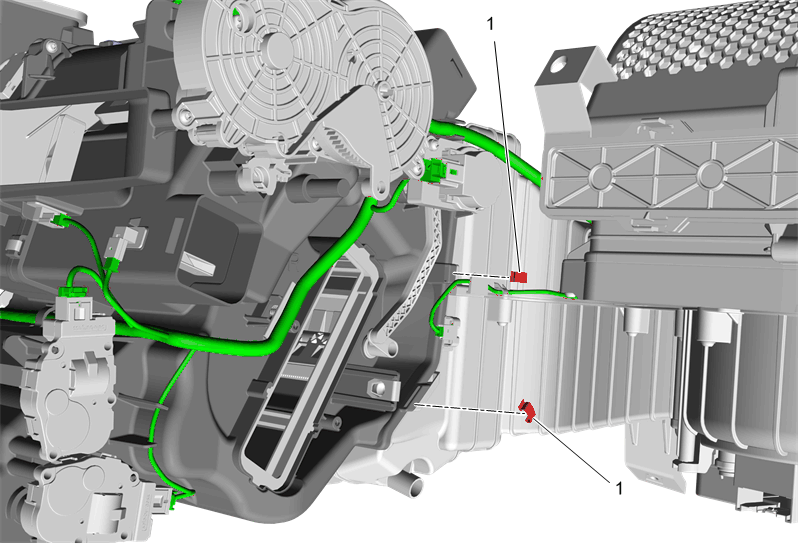

  3. GM4278585Courtesy of GENERAL MOTORS COMPANY

    Retainer Clip (1) - Install [2x]

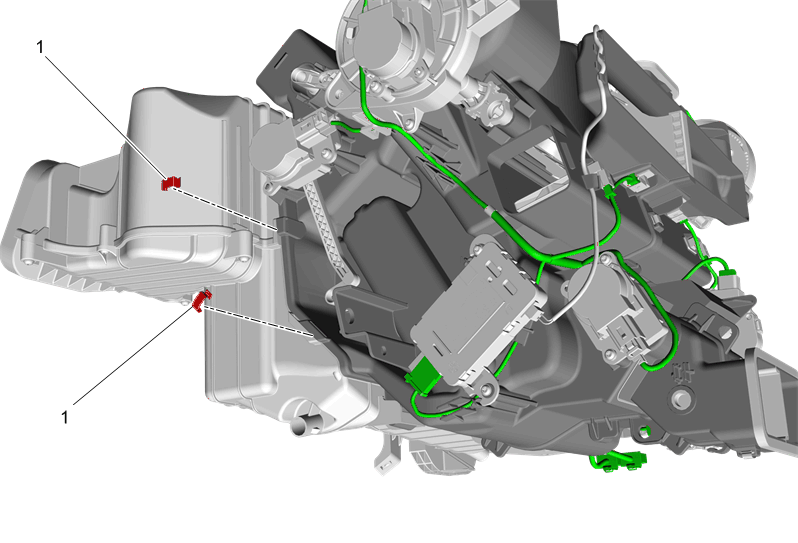

  4. GM4278583Courtesy of GENERAL MOTORS COMPANY

    Retainer Clip (1) - Install [2x]

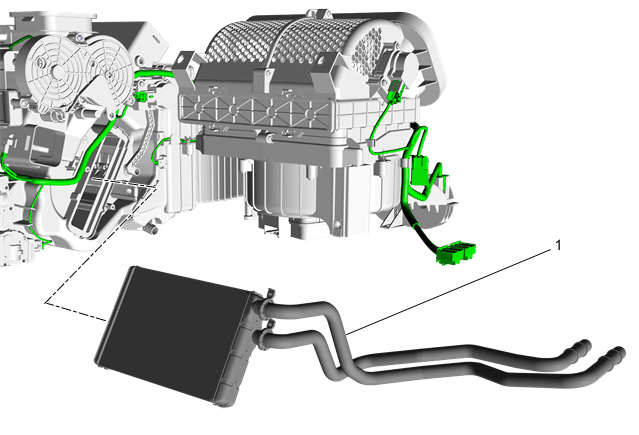

  5. GM4260828Courtesy of GENERAL MOTORS COMPANY

    Heater Core (3) - Install - Heater Core Replacement

  6. Air Conditioning Wiring Harness @ Air Distributor Case - Install

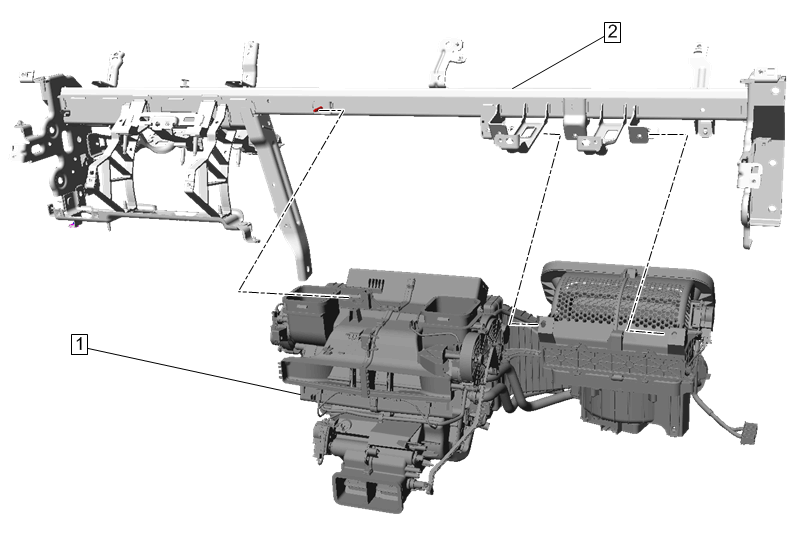

  7. GM4579193Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module (1) - Install - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (With Out HP9 Hybrid) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (With HP9 Hybrid)
