Installation Procedure

  1. Install the air conditioning condenser to the vehicle.

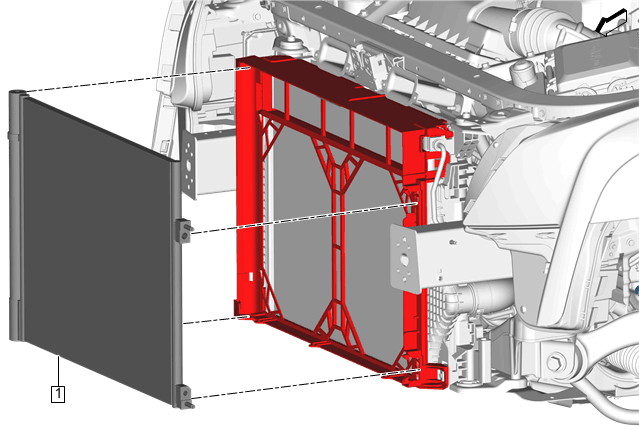

  2. GM4246459Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser (1) @ Air Conditioning Condenser Bracket - Install

  3. GM4246835Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser and Evaporator Hose (2) @ Air Conditioning Condenser - Install - Air Conditioning Condenser and Evaporator Hose Replacement (LTG) Air Conditioning Condenser and Evaporator Hose Replacement (LGW, LGX)

  4. GM4246842Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Condenser - Install - Air Conditioning Compressor and Condenser Hose Replacement (LTG) Air Conditioning Compressor and Condenser Hose Replacement (LGW, LGX)

  5. GM4249734Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle Replacement (LGW LGX LTG) (1) - Install

  6. Radiator Air Side Upper Baffle Replacement (LGW LGX LTG - Left Side)Radiator Air Side Upper Baffle Replacement (LGW LTG - Right Side)Radiator Air Side Upper Baffle Replacement (LGX - Right Side) - Left Side and Right Side - Install
  7. Radiator Air Side Lower Baffle Replacement (LGW LGX LTG - Left Side)Radiator Air Side Lower Baffle Replacement (LGW LGX LTG - Right Side) - Left Side and Right Side - Install
  8. GM4247992Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle and Deflector Replacement (LGW LTG)Radiator Air Upper Baffle and Deflector Replacement (LGX) (2) - Install

  9. Recharge the refrigerant. Refrigerant Recovery and Recharging
