Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Positive Cable Junction Block Lead Nut (1)@Engine Wiring Harness Junction Block - Install and tighten15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Power Distributor Fuse Block Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Engage [5x]
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Engage [5x]
Courtesy of GENERAL MOTORS COMPANY

Front Body Exhaust Heat Shield - Left Side (3) - Install - Front Body Exhaust Heat Shield Replacement (Right Side, LTG)Front Body Exhaust Heat Shield Replacement (Left Side, LTG)Front Body Exhaust Heat Shield Replacement (Right Side, LGW, LGX)Front Body Exhaust Heat Shield Replacement (Left Side, LGW, LGX)
Courtesy of GENERAL MOTORS COMPANY

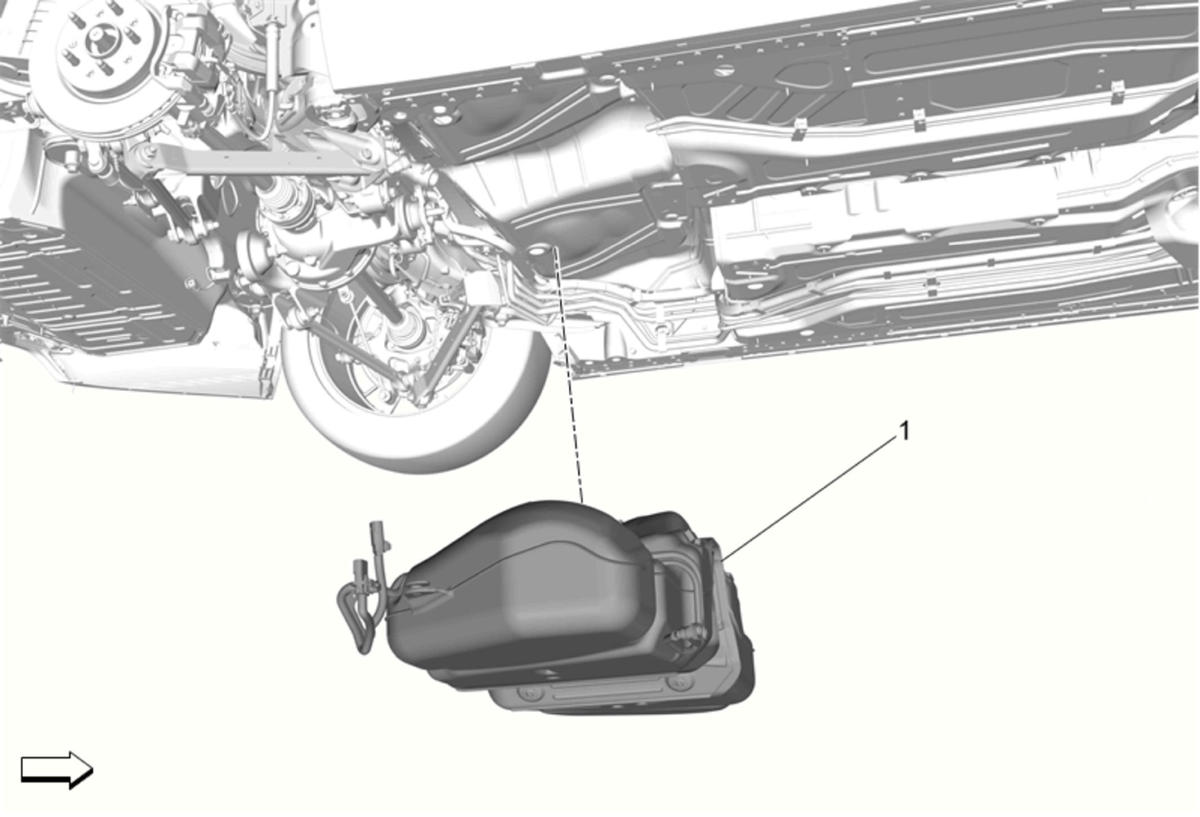

Fuel Tank (1) - Install - Fuel Tank Replacement
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Engage [4x]
Secure the clips. (2)
Install and tighten the auxiliary A/C evaporator tube bracket fastener (3). Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (With HP9)
Courtesy of GENERAL MOTORS COMPANY

Power Distributor Fuse Block Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Engage [5x]
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Feed the battery positive cable through rear compartment opening.
Rubber Grommet (2) - Install
Retainer (1) - Engage [4x]
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (2) - Install
Retainer (3) - Engage
Battery Positive Cable Nut (1)@Battery Distribution Fuse Block - Install and tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Fuse Block Cover (2) - Install
Battery Distribution Fuse Block Cover Retaining Tab (1) - Engage
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

Spare Tire (2) - Install
Spare Tire Stowage Retainer (1) - Hand tighten
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Panel Trim - Install - Rear Compartment Floor Panel Trim Replacement (Without HP9)Rear Compartment Floor Panel Trim Replacement (With HP9)
