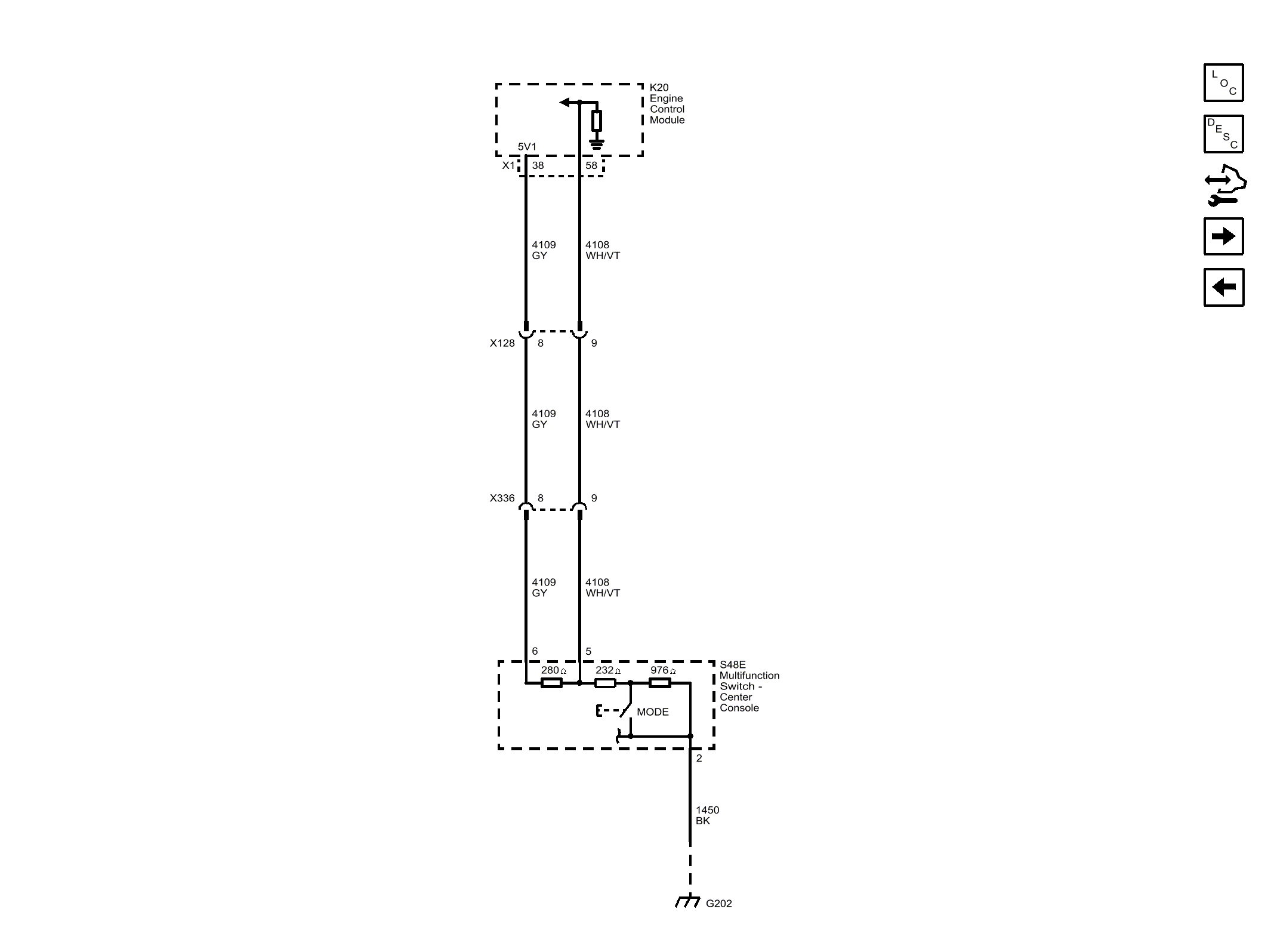

Home >> Cadillac >> 2018 >> CT6 Plug-In >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 2.0L (LTG) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Controls - Mode Switch
