Home >> Cadillac >> 2018 >> CT6 Plug-In >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Moveable Window Wiring Schematics >> Driver

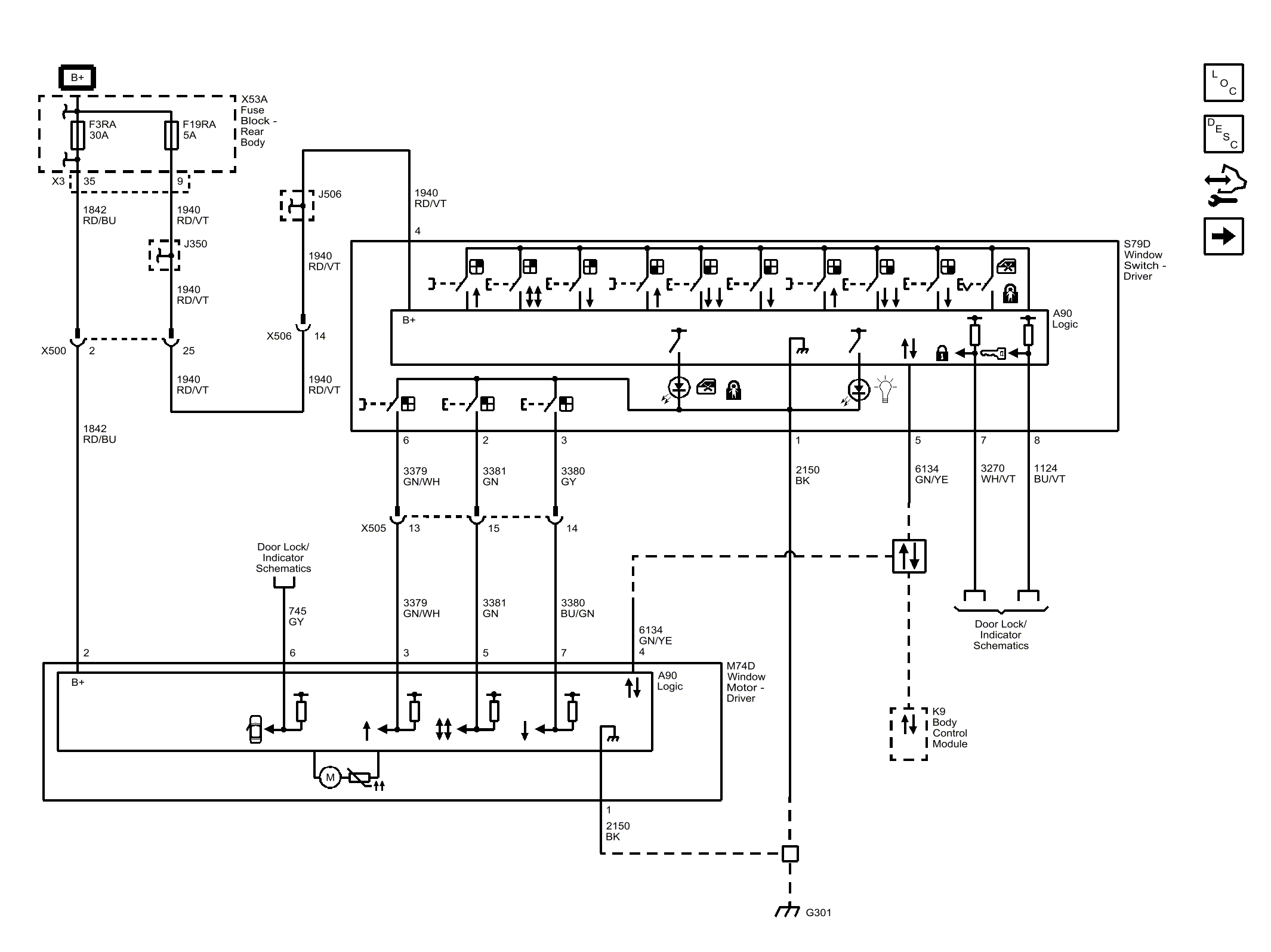

Moveable Window Wiring Schematics: Driver

GM4597304
