Front Seat Lumbar Support Bladder Pump Replacement

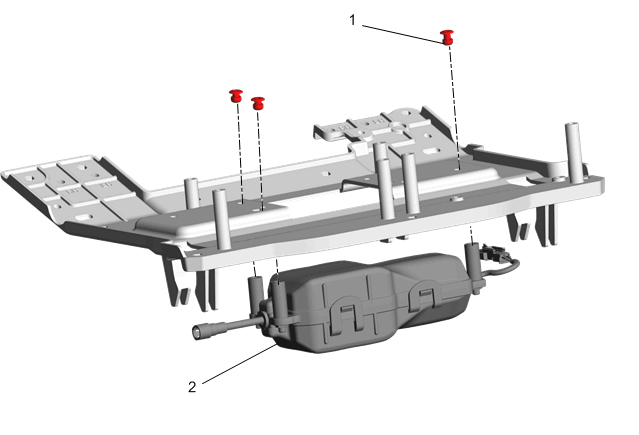

GM4258884Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure Front Seat Adjuster Memory Module Bracket Replacement
1 Front Seat Lumbar Support Bladder Pump Rivet [3x]
2 Front Seat Lumbar Support Bladder Pump

Procedure

  1. Disconnect the electrical connector.
  2. Disconnect the air hose.
