Rear Closure Hands Free Sensor Replacement (Lower)

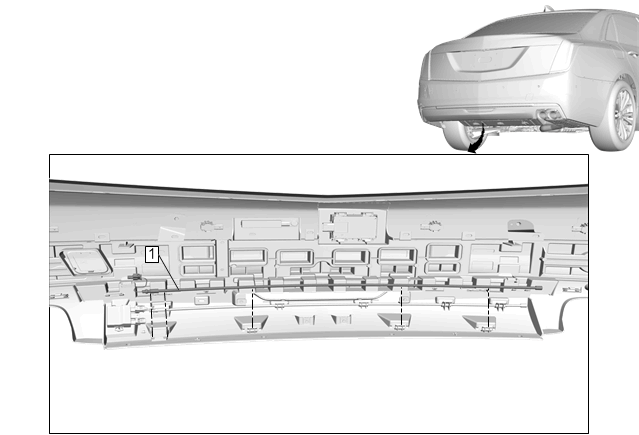

GM4256195Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Underbody Rear Air Rear Deflector Replacement (Without HP9)Underbody Rear Air Rear Deflector Replacement (With HP9)
1 Rear Closure Hands Free Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Disengage the wire at the connector, disengage opposite end, then pull back on each tab, and apply slight force on sensor to push the sensor out of the tabs and remove.
