Front Side Door Outside Handle Insert Replacement

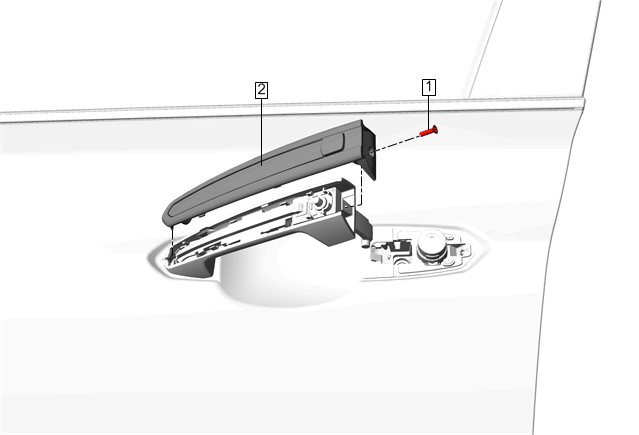

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Outside Handle Replacement |
|
| 1 | Front Side Door Outside Handle Insert Screw
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Front Side Door Outside Handle Insert
NOTE:
Ensure the door operates properly before installing the door trim. |
