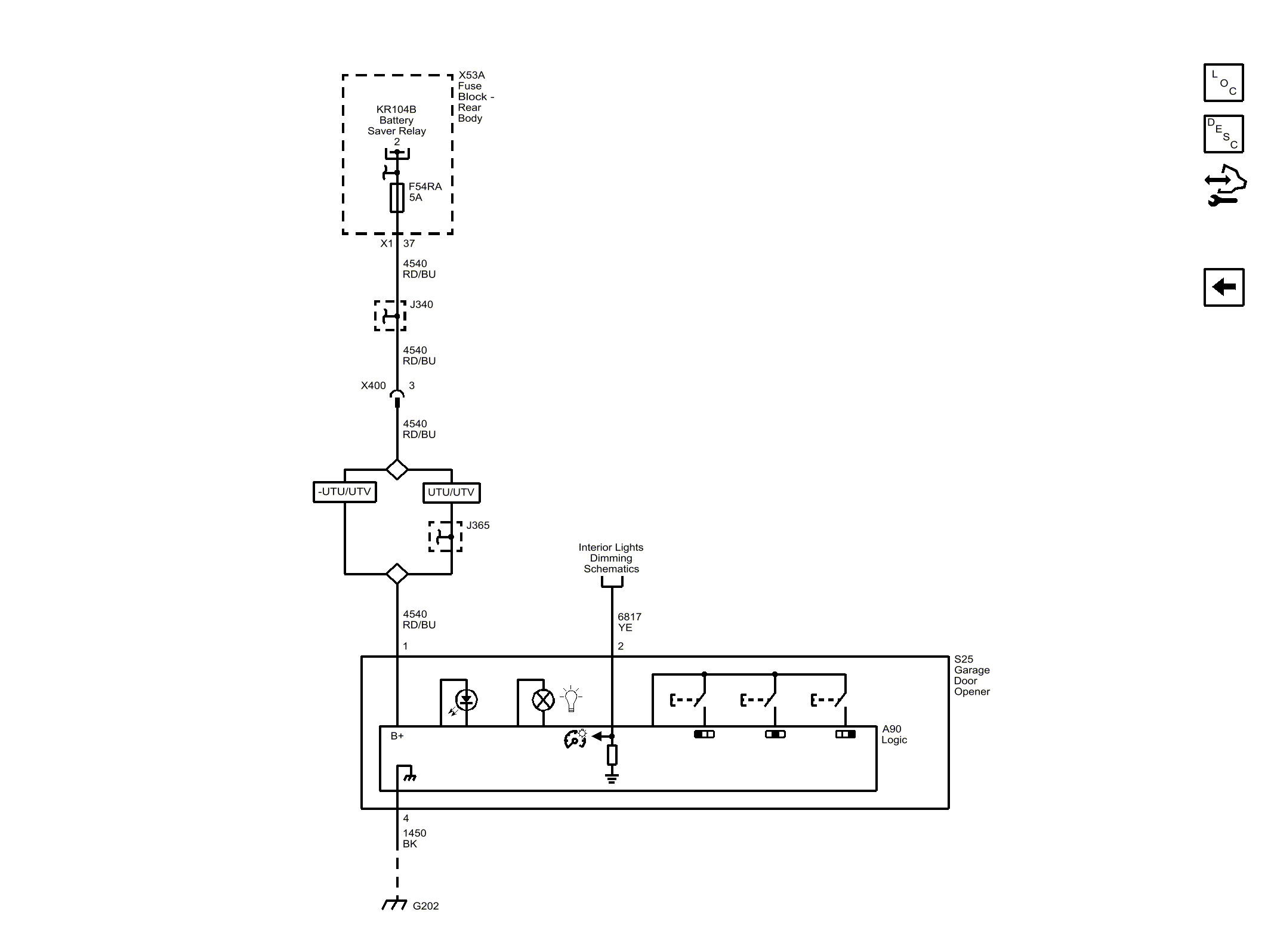

Home >> Cadillac >> 2018 >> CT6 Plug-In >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Function >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Garage Door Opener (UG1)
