Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>

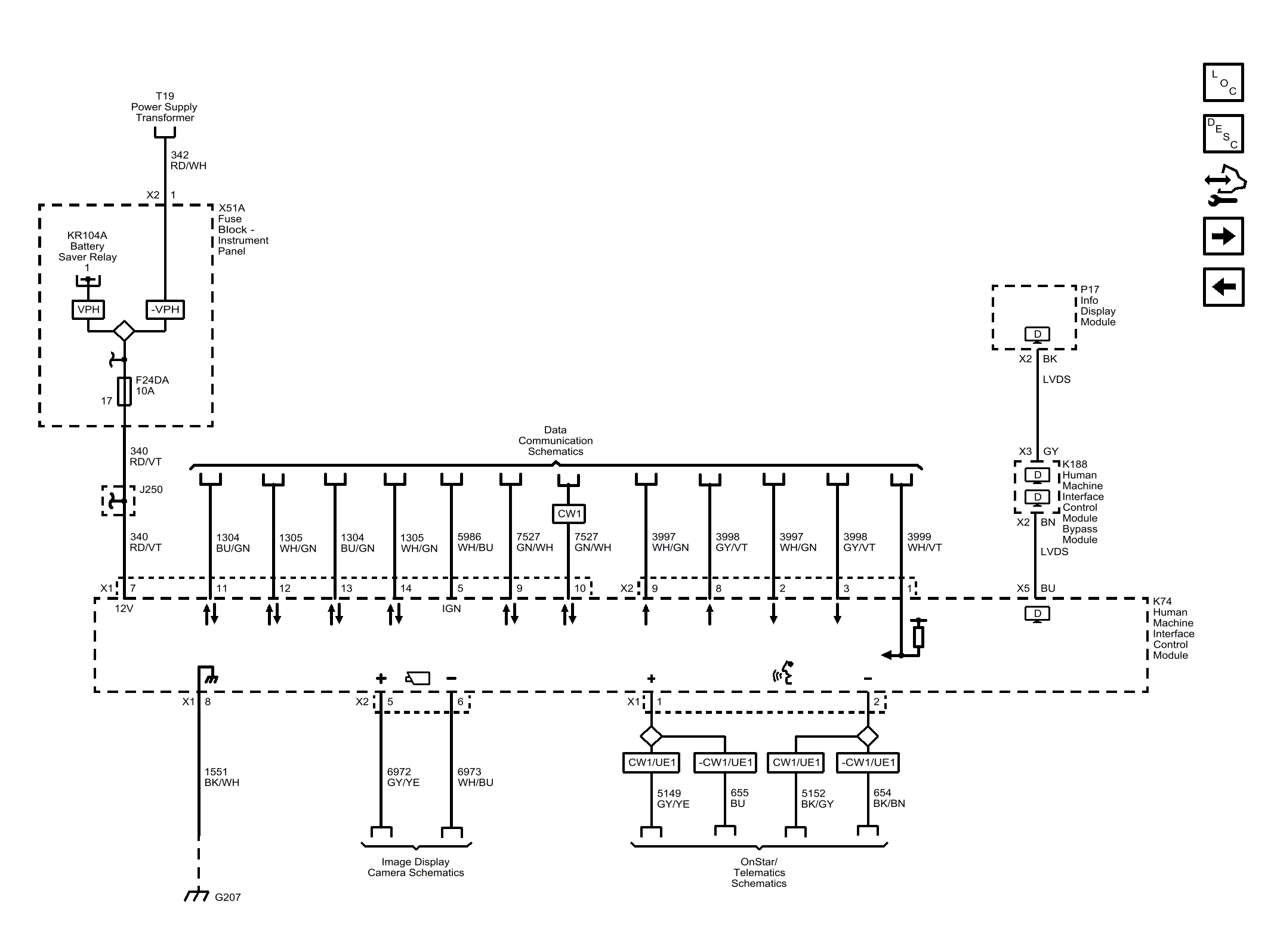

Human Machine Interface Power, Ground, Serial Data, and Subsystem References
Human Machine Interface Power, Ground, Serial Data, and Subsystem References
