Forward Range Radar Sensor Replacement (With UKL)

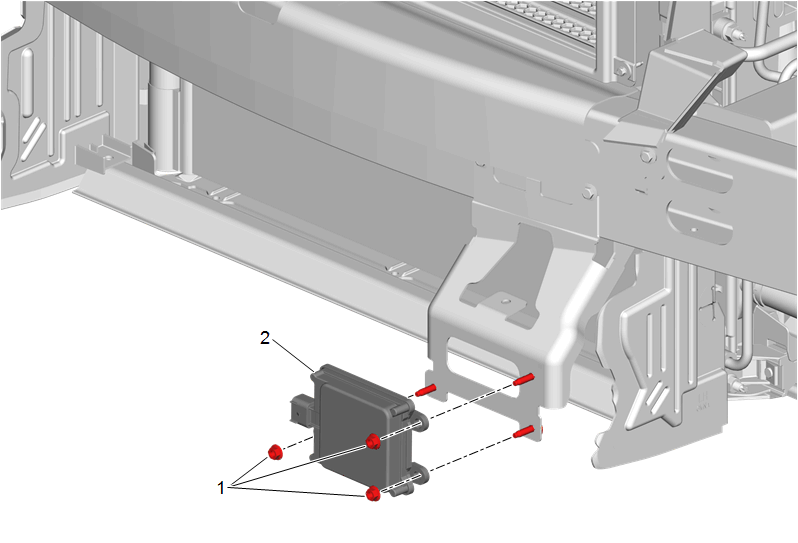

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)
1	Forward Range Radar Sensor Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Forward Range Radar Sensor Fastener [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
