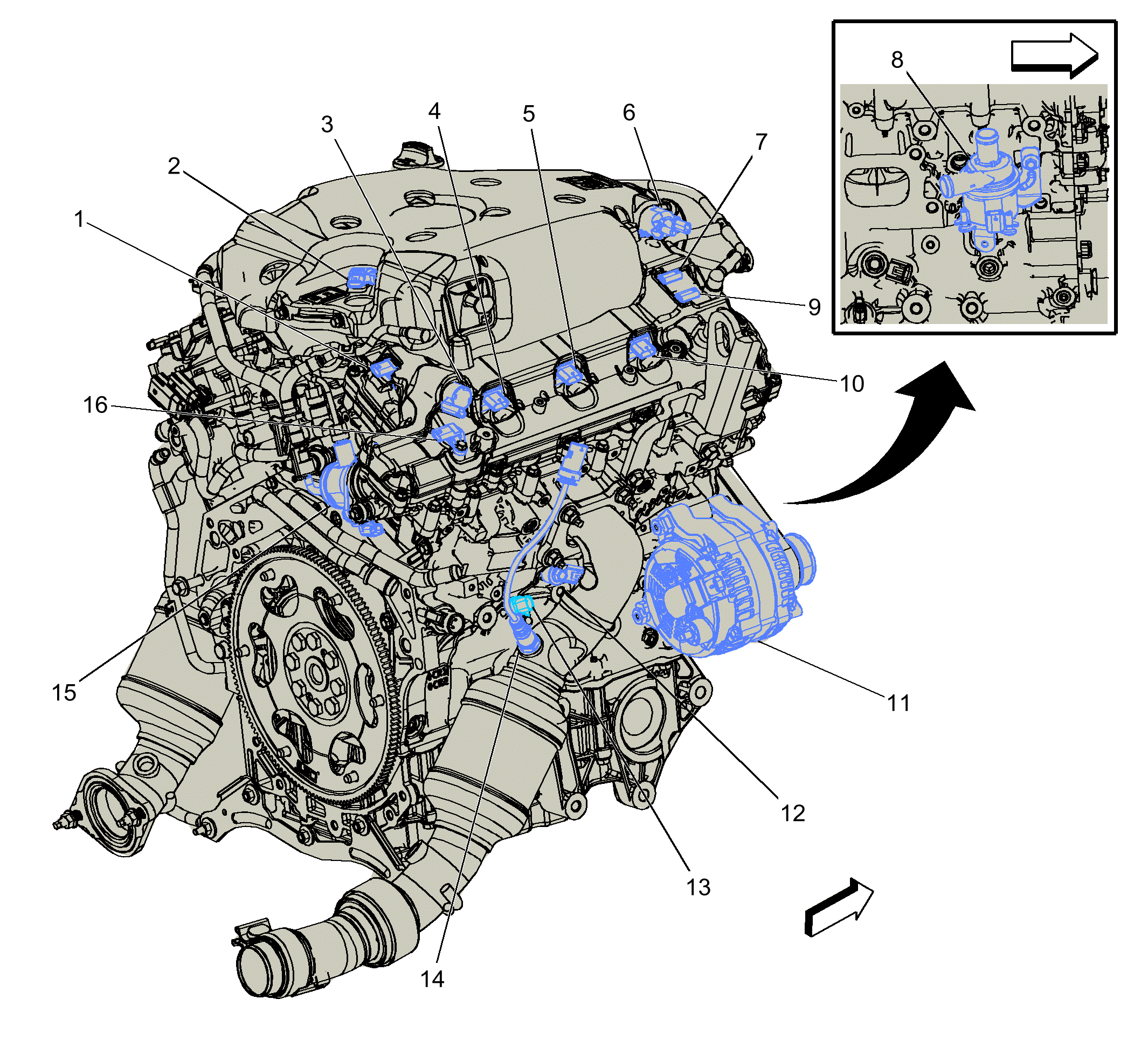

Right Rear of Engine Components (LGX)

Courtesy of GENERAL MOTORS COMPANY

Right Rear of Engine Components (LGX)

Items
1. B23B Camshaft Position Sensor - Bank 1 Intake B23B Camshaft Position Sensor - Bank 1 Intake (LGX)
2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LF4/LGX)
3. Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX) Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX)
4. T8E Ignition Coil 5 (LF4/LGX) T8E Ignition Coil 5 (LGX)
5. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX)
6. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
7. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX)
8. G17 Heater Coolant Pump (KL9) G17 Heater Coolant Pump (KL9)
9. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX)
10. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGX)
11. G13 Generator G13 Generator X1G13 Generator X2 (LGX/LTG)
12. B68A Knock Sensor 1 B68A Knock Sensor 1 (LGX/LTG)
13. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LGX)B26 Crankshaft Position Sensor (LGX-F46)
14. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LF4/LGX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX)
15. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LGX/LTG)
16. B23A Camshaft Position Sensor - Bank 1 Exhaust B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX)
