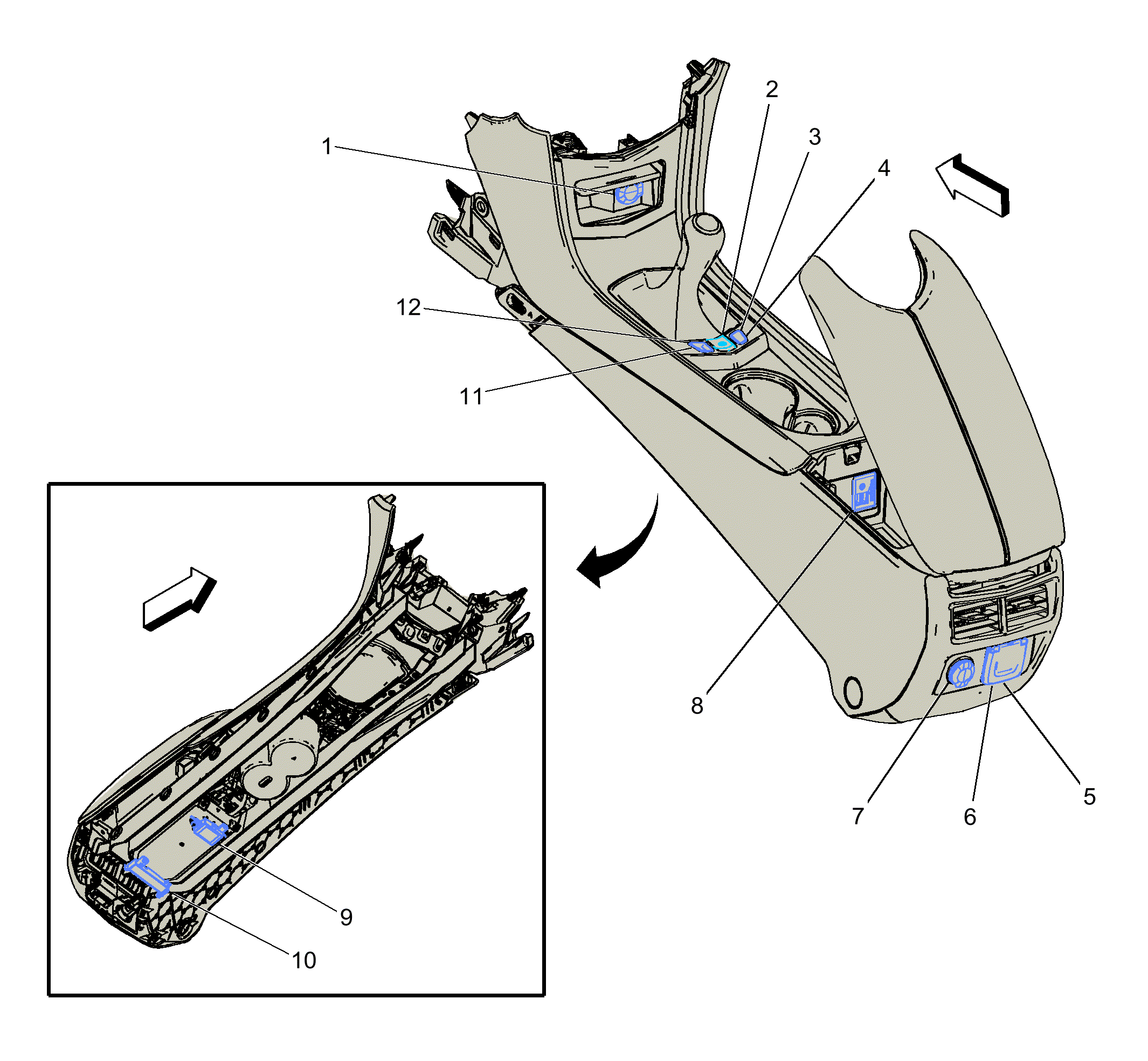

Floor Console Components - Manual Transmission (M3L/MG9)

Courtesy of GENERAL MOTORS COMPANY

Floor Console Components - Manual Transmission (M3L/MG9)

Items
1. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
2. S91 Park Brake Control Switch S91 Park Brake Control Switch (J77+M3L/MG9)
3. S126 Drive Mode Select Switch S126 Drive Mode Select Switch (M3L)
4. S126U Drive Mode Select Switch - Up (MG9) S126U Drive Mode Select Switch - Up (MG9)
5. X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6)X81 Accessory Power Receptacle - 110V AC X2 (KI6)
6. X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7)X81B Accessory Power Receptacle - 220V AC X2 (KI7)
7. X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console
8. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2
9. K89 Immobilizer Control Module K89 Immobilizer Control Module
10. T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear
11. S86 Vehicle Stability Control Switch (M3L) S86 Vehicle Stability Control Switch (M3L)
12. S126D Drive Mode Select Switch - Down (MG9) S126D Drive Mode Select Switch - Down (MG9)
