Headlamp Components (T4F)

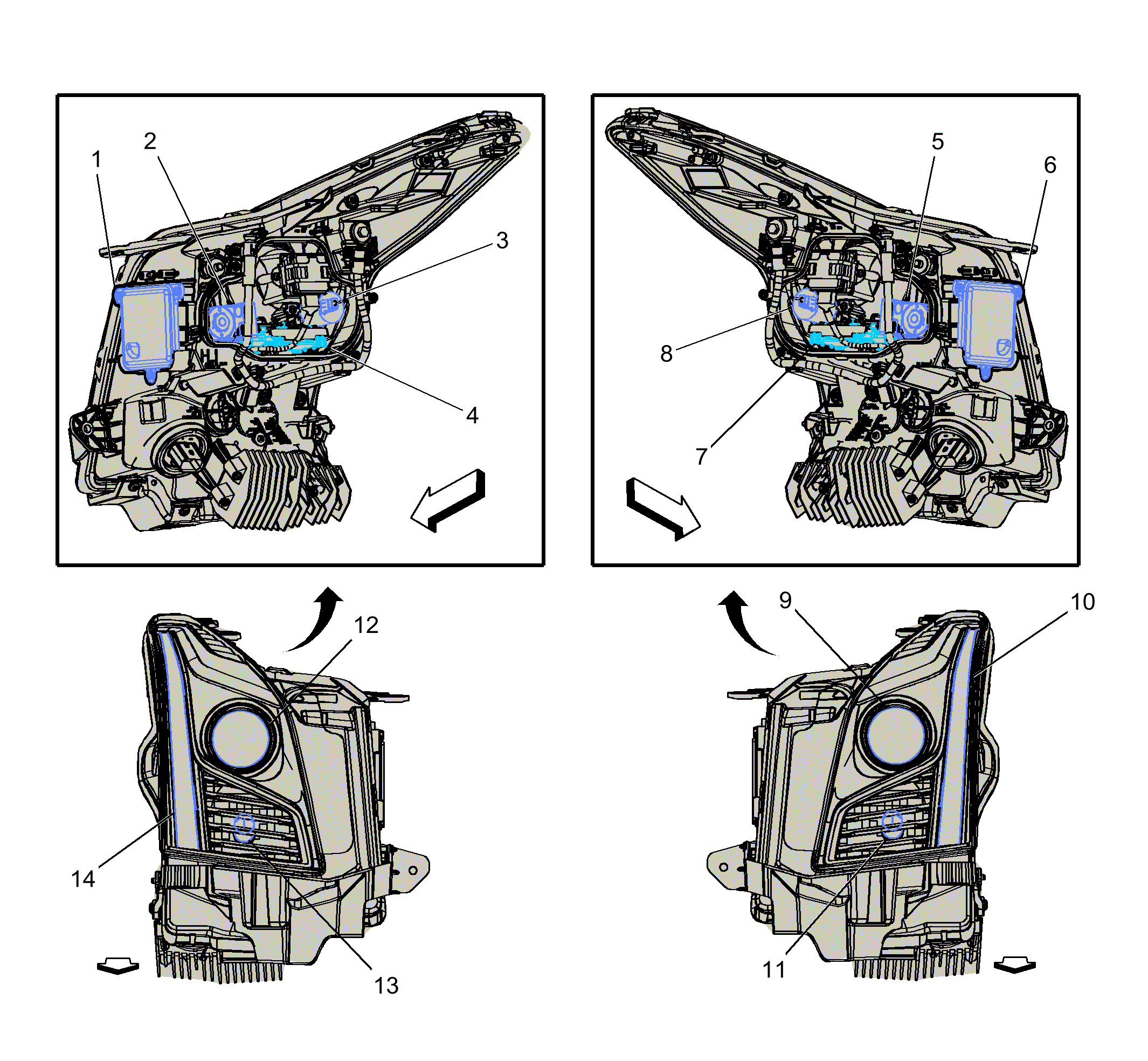

GM4055866Courtesy of GENERAL MOTORS COMPANY
Headlamp Components (T4F)

Items
1. T7R Headlamp Ballast - Right (T4F) T7R Headlamp Ballast - Right X1 (T4F)T7R Headlamp Ballast - Right X2 (T4F)
2. M29R Headlamp Leveling Actuator - Right M29R Headlamp Leveling Actuator - Right (TR6)M29R Headlamp Leveling Actuator - Right (TR7)
3. M28R High Beam Solenoid Actuator - Right M28R High Beam Solenoid Actuator - Right (-T4F)
4. M3R Headlamp Horizontal Motor - Right (T4F) M3R Headlamp Horizontal Motor - Right
5. M29L Headlamp Leveling Actuator - Left M29L Headlamp Leveling Actuator - Left (TR6)M29L Headlamp Leveling Actuator - Left (TR7)
6. T7L Headlamp Ballast - Left (T4F) T7L Headlamp Ballast - Left X1 (T4F)T7L Headlamp Ballast - Left X2 (T4F)
7. M3L Headlamp Horizontal Motor - Left (T4F) M3L Headlamp Horizontal Motor - Left
8. M28L High Beam Solenoid Actuator - Left M28L High Beam Solenoid Actuator - Left (T4F)
9. E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam (-T4F)
10. E4AC Park/Daytime Running Lamp - Left (T4F) E4AC Park/Daytime Running Lamp - Left
11. E4LF Turn Signal Lamp - Left Front (T4F/TR6) E4LF Turn Signal Lamp - Left Front
12. E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam (T4F)
13. E4RF Turn Signal Lamp - Right Front (T4F/TR6) E4RF Turn Signal Lamp - Right Front
14. E4AD Park/Daytime Running Lamp - Right (T4F) E4AD Park/Daytime Running Lamp - Right
