Home >> Cadillac >> 2018 >> ATS Base, 4D Sedan, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive and Keyless Start

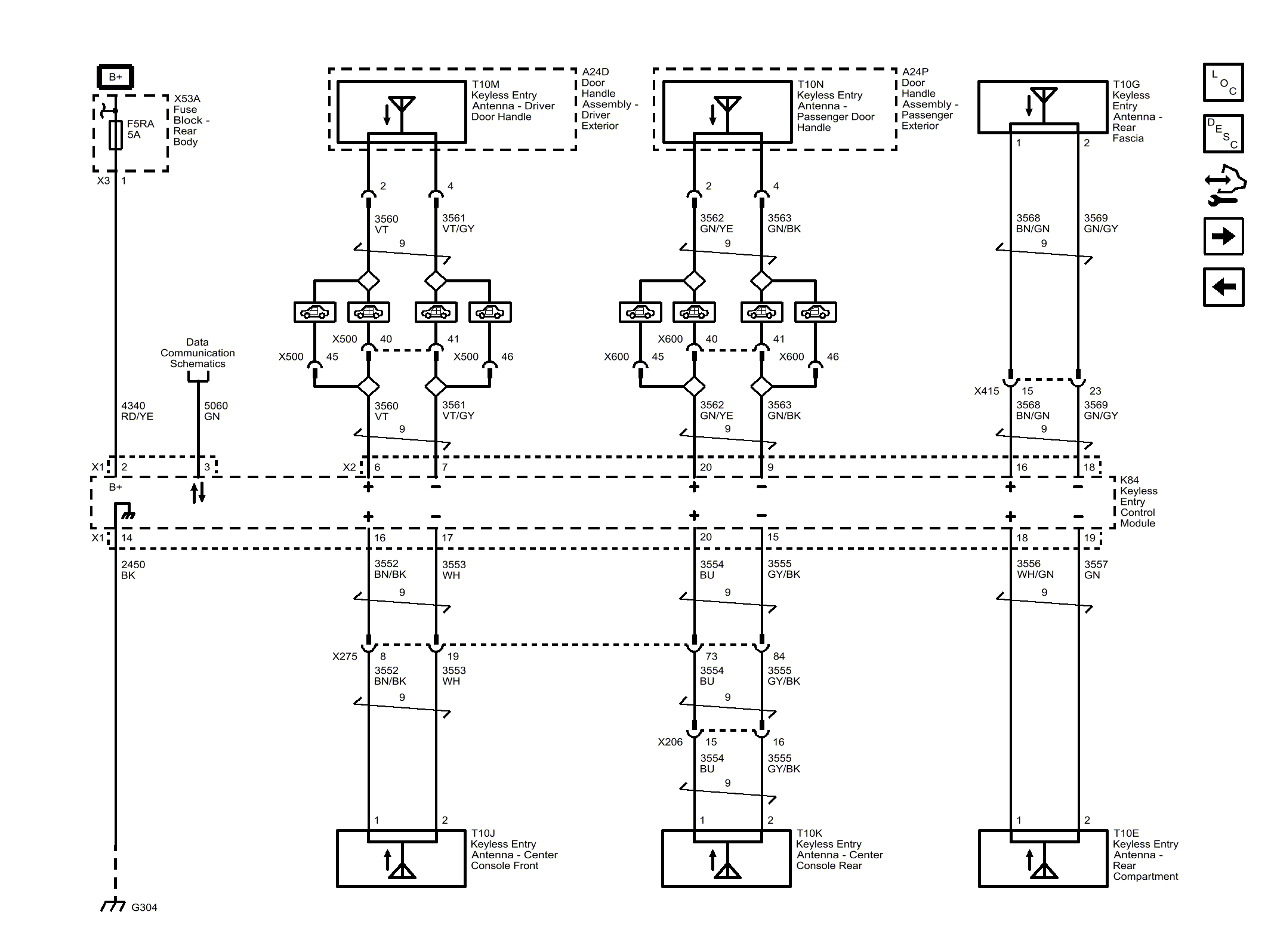

Keyless Entry - Passive and Keyless Start

GM4677330
