Radio Replacement

Callout	Component Name
Preliminary Procedures Before removing the radio, perform the radio reset. Radio Reset Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) Instrument Panel Outer Trim Cover Replacement

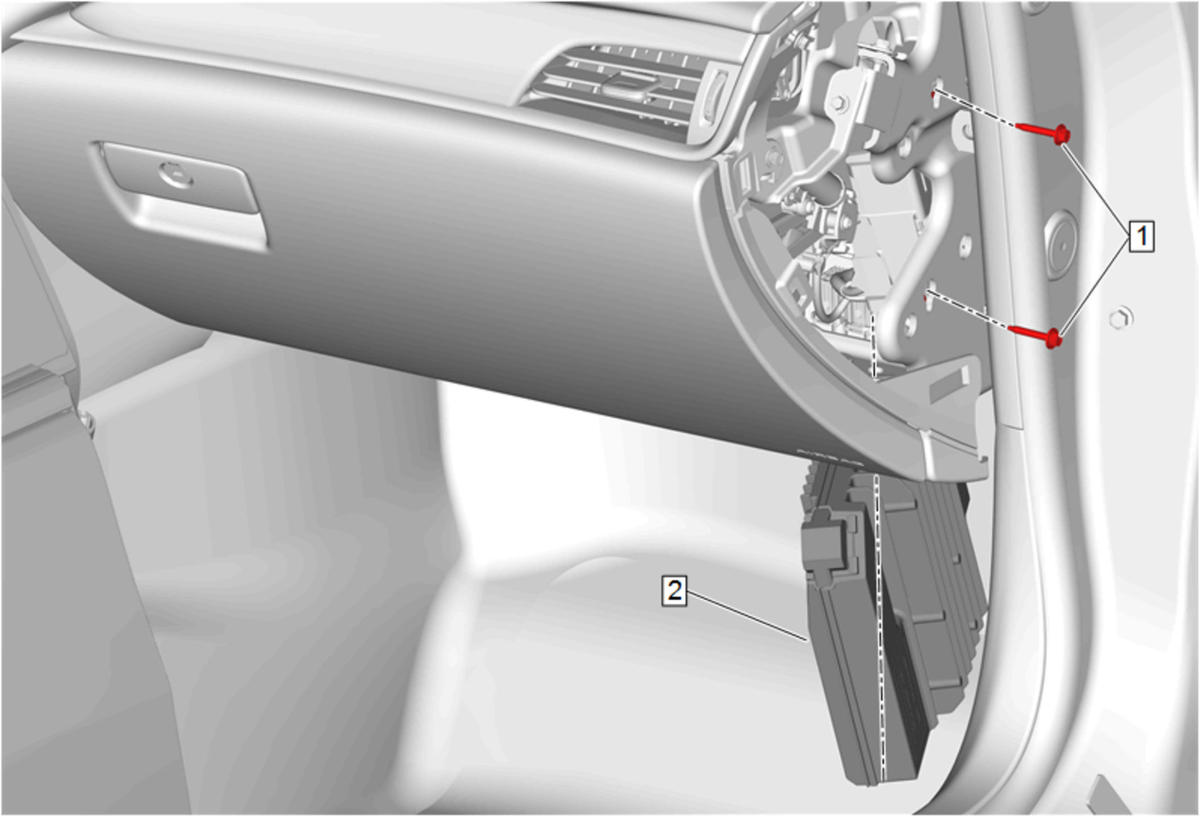

1	Radio Bracket Bolt[2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Procedure Disconnect the electrical connectors. Release the retaining tabs. After installing the radio, perform the radio reset. Radio Reset

Callout

Component Name

Preliminary Procedures

Radio Bracket Bolt[2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio

Procedure
